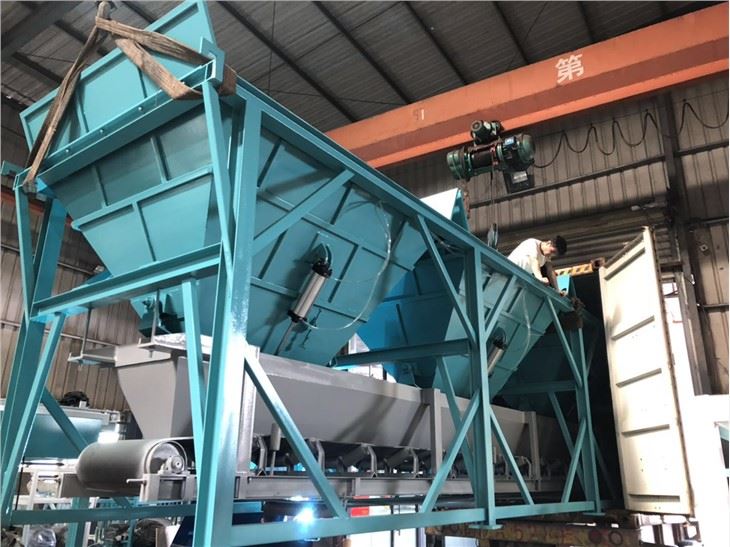

Concrete Dosing Machine
Concrete dosing machine is used to store and measure various sand and gravel aggregates in concrete or asphalt mixing plants, and transport them to the mixer using the pre-set formula, and mix with cement, fly ash, mineral powder, additives, water, etc.
The raw materials such as stones, sand, and blocks are transported by concrete machinery, and the raw materials are conveyed to the main machine through a belt scale. the concrete mixing ratio is set by the batching machine, and the mixing ratio is automatically batched according to the set mixing ratio. it is generally suitable for general construction. construction sites, roads, bridges and other projects.
Main features:
1.This series of products have the characteristics of multiple structural forms, flexible combination methods, high weighing accuracy, simple operation and high degree of automation.
2.The machine body can adopt a split layout structure to facilitate the loading of various materials.
3.The batching of various materials can be automatically completed according to the concrete proportion set by the user.
4.It can be combined with the corresponding concrete mixing unit to synthesize mixing plants of different specifications, which is convenient and practical.
Classification:
1. According to the number of material grades, it is divided into two buckets (silo), three buckets (silo), four buckets (silo)
2. According to the matched mixer model, it is divided into: PL(D)800, 1200, 1600, 2400, 3200
3. According to the batching measurement method, it is divided into: cumulative measurement of each material, separate measurement of each material
4. According to the control mode of the ingredients, it is divided into: belt type and cylinder type
Techinical specification of Automatic Batching Machine | |||
PL800 | PL1200 | PL1600 | |
Weighted capacity | 0.8m3 | 1.2m3 | 1.6m3 |
Storage bucket capacity | 2×2m3 | 3×4m3 | 3×7m3 |
Productivity | 48m3/h | 72m3/h | 96m3/h |
Batching precision | ±2% | ±2% | ±2% |
Max. Weight Capacity | 1500 KG | 2000 KG | 4000KG |
Batching category | 2 | 3 | 3 |
Loading height | 2300mm | 2500m | 2600mm |
Dimension | 5470×1820×2810mm | 8650×2000×2900mm | 9600×2300×3070mm |
Power | 6.6kW | 10.6kW | 14.4kW |
Weight | 2300 kg | 4000 kg | 4820 kg |
PL series concrete batching machine is a new type of batching machinery, suitable for general construction sites, roads, bridges and other projects. The batching machine can be used for the batching of concrete mixers, which can be directly received by the lifting hopper of the mixer, or can be received by the belt conveyor. The weighing system of this batching machine adopts a weight controller and sensor, which can weigh, batch and control materials, and automatically modify the drop. This machine has the advantages of reasonable layout, compact structure, easy operation, batching, and reliable control.
