From Feeding to Finished Product: A Complete Process Analysis of a Fully Automatic Concrete Block Production Line
In the concrete products industry, the widespread adoption of fully automatic production lines is fundamentally transforming the operational model of traditional block plants. A complete fully automatic concrete block production line is not a simple assembly of multiple machines, but a highly coordinated integrated system – from aggregate batching to finished product stacking, the precise interconnection of each stage directly determines the line's production capacity and product quality.
1. Batching and Mixing: Precision Weighing is the Starting Point of Quality

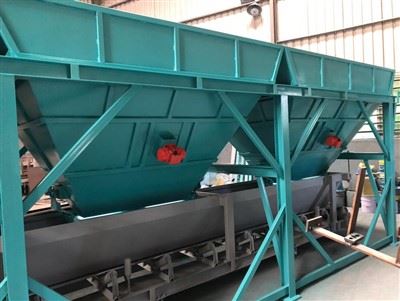

The first stage of the production line is carried out by the batching station. A wheel loader feeds different grades of aggregates into the respective bins of the batching station, and the system automatically weighs each material to the preset weight using electronic sensors. At the same time, cement from the cement silo is precisely metered via a screw conveyor and then enters the forced mixer together with the aggregates. Inside the mixer, the mixing arms subject the materials to forced shearing and convective movement, ensuring that cement, aggregates, water, and admixtures are thoroughly mixed within a short time to produce a concrete mix that meets uniformity requirements.
2. Forming: The Synergy of Vibration and Pressure
The uniformly mixed concrete is fed into the hopper of the block forming machine via a conveyor belt. Inside the forming machine, the synergy between high‑frequency vibration and hydraulic pressure is the core technology that ensures block density – vibration allows the concrete particles to distribute evenly within the mold cavity and expels air bubbles, while the hydraulic system applies constant pressure to compact the material. This combined "vibration + pressure" forming method directly determines the strength grade and surface quality of the blocks.
3. Curing: The Transformation of Time and Temperature
The freshly formed wet blocks are picked up by an automatic elevator, and then a finger car transports the pallets loaded with blocks into the curing chamber for curing. Inside the curing chamber, the blocks undergo the cement hydration reaction under controlled temperature and humidity conditions, gradually reaching their designed strength. Although this stage does not directly generate output, it is critical to the durability and dimensional stability of the final product.
4. Palletizing and Packaging: Automation Reduces Labor
After curing, the blocks are removed from the curing chamber by the finger car and conveyed via the automatic elevator to the automatic cuber and packing machine. This system is independently arranged near the finished product yard, with units such as block and pallet conveyors, brick pushers, cubers, stacking devices, and packing machines working in coordination to automatically arrange the blocks into tight, neat stacks. The entire process is controlled independently by a PLC, without needing to be integrated with the block machine control system, significantly reducing the upgrade threshold for existing plants.
From feeding to finished product, the fully automatic production line achieves closed‑loop production with "centralized computer control and automated mechanical execution." For block manufacturers pursuing large‑scale and standardized production, understanding and optimizing each process stage is the key to reducing costs and improving efficiency.
