Good Quality Cement Block Making Machine

good quality cement block making machine

The long-term stability of a block forming machine depends on the quality of its core components. Equipment equipped with a Mitsubishi PLC or Siemens PLC control system supports fault self-diagnosis, data input devices, and safety logic control, and can operate in manual, semi-automatic, and fully automatic modes.

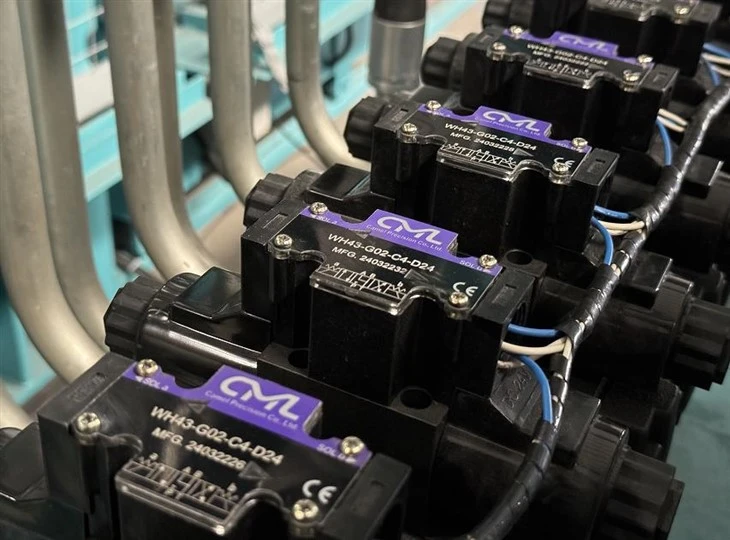

The hydraulic system uses high-dynamic proportional valves that automatically regulate oil flow and pressure, cushioning the impact during hydraulic cylinder operation. It is equipped with integrated high-pressure hoses for easy installation. Compared with the frequent repairs and production losses caused by low-cost equipment over time, high-quality equipment saves not in purchase cost, but in long-term operational reliability.

The frame is the skeleton of the entire machine. High-quality equipment is manufactured using high-strength steel sections and special welding processes to enhance rigidity, reduce resonance with the vibration system, and extend service life. The guide columns are chrome-plated, offering excellent torsion resistance and wear resistance.

The equipment adopts an integrated vibration and forming platform structure, reducing overall weight while improving vibration efficiency. A dual airbag vibration damping system reduces the impact of vibration on mechanical components, extending equipment life and lowering noise levels.

Products	Pic	Size	Capacity	Cycle time	Daily capacity
Hollow block		390 ×190 ×190mm	5pcs/pallet	15-20s	7200pcs
Hollow brick		240 ×115 ×90mm	16pcs/pallet	15-20s	23040pcs
Brick		240 ×115 ×53mm	34pcs/pallet	15-20s	48960pcs
Paver		200 ×100 ×60mm	20pcs/pallet	15-20s	28800 pcs

Core Technical Parameters of High‑Quality Equipment

The technical parameters of a high‑quality cement block forming machine are a direct reflection of its quality. Taking a typical high‑quality model in the industry as an example:

Forming efficiency. High‑quality equipment typically has a forming cycle of 15‑20 seconds. Taking the QT8-15 model as an example, the 8‑hour shift output can reach 76,800 standard bricks or 15,360 hollow blocks.

Vibration system. Exciting force is a key indicator of vibration system performance. High‑quality equipment can achieve an exciting force of 60‑100 KN. Driven by electro‑hydraulic technology with adjustable frequency and amplitude, it achieves low‑frequency feeding and high‑frequency forming.

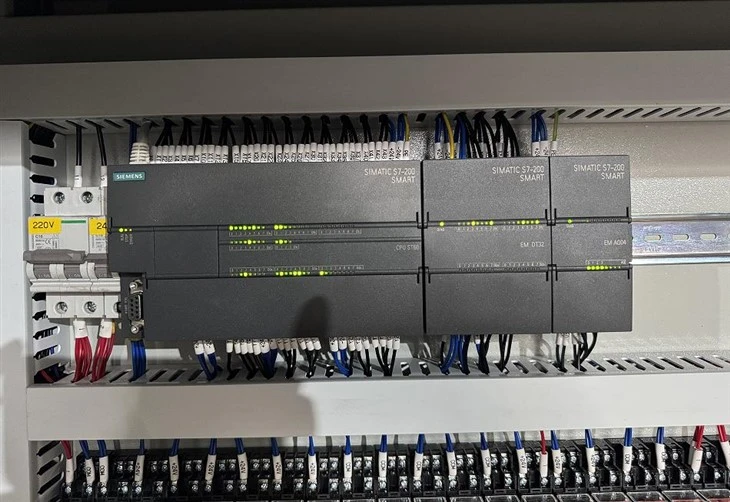

Control system. Uses a PLC computer control system with a liquid crystal touchscreen, featuring fault self‑diagnosis and error‑correction functions. The equipment can store multiple process recipes for one‑click recall during product changeover, and operators can use it after simple training.

Raw material adaptability. High‑quality equipment can process various raw materials including mountain sand, river sand, sea sand, furnace slag, mineral slag, fly ash, stone powder, and construction waste, producing standard blocks and hollow blocks through scientific proportioning



Manufacturing

Delivery

workshop

Process
