concrete solid block moulding machine
Products Description
Welcome to the future of construction efficiency with UNIK's concrete solid block moulding machine. Engineered for simplicity and speed, this hydraulic-powered, kiln-free system lets operators master production within hours: choose full PLC automation for 24/7 unmanned shifts, manual mode for small batches, or remote-control via smartphone when you're off-site. Advanced variable-speed feed and precision turntable deliver high torque, smooth motion and millimetre accuracy, while oil-free bearings cut maintenance to a minimum. From river-sand to recycled concrete, simply load, press and stack-no firing, no fumes, no fuss. Discover how UNIK's concrete solid block moulding machine turns waste into profit, one perfectly shaped block at a time.
Technical specifications
| Dimension | 3700×2300×2800mm |
| Pallet Size |
1380×760×28-35mm |
| Vibration Frequency | 3800-4500 r/min |
| Hydraulic Pressure | 25 mpa |
| Vibration Force | 68 KN |
| Cycle time | 15-20s |
| Power | 63.45kW |
| Weight | 11200kg |

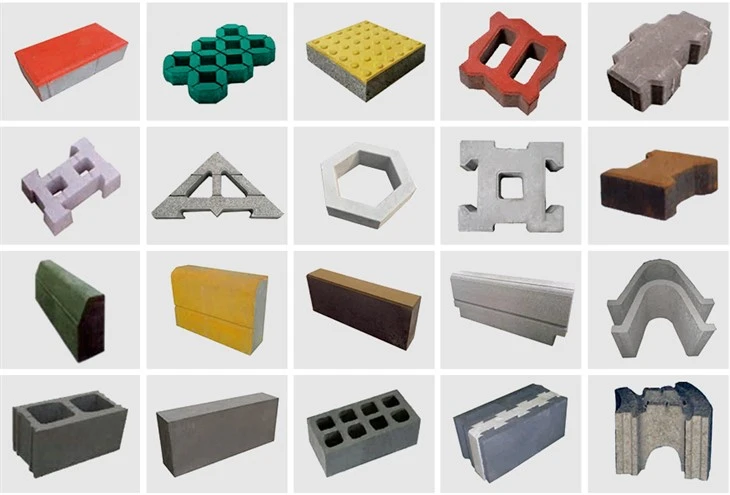

This fully automatick block machine is designed to work 24 hours. it is very fast and has a high production capacity through special servo motors.The block machine can produce different specifications of color Pavers, interlocking pavers, paving blocks, and other concrete blocks by replacing mold. The output table is as follows:
| Product | Product size | pcs/pallet | pcs/hour | Image |
| Hollow block | 400x200x200mm | 9 PCS | 1620PCS |  |
| Hollow block | 400x150x200mm | 12 PCS | 2160 PCS |  |
| Rectangular paver | 200x100x60/80mm | 36PCS | 8640 PCS |  |
| Interlocking paver | 225x112x60/80mm | 25PCS | 6000PCS |  |
| Kerbstone | 200x300x600mm | 4PCS | 960PCS |  |
Construction & High-Rise Developments
Thanks to closed-cell porosity and low thermal conductivity, UNIK non-fired bricks deliver R-values up to 1.8 m²·K/W-ideal for external wall insulation, cavity filling and decorative façade panels. Their density (≈1,350 kg/m³) is 35 % lighter than common clay units, so architects use them for non-load-bearing partitions in steel-frame or RC high-rises, cutting dead-load and speeding erection.
🛣️ Road & Port Engineering
Hydraulically pressed at 25 MPa and cured to ≥ 22 MPa compressive strength, the bricks handle heavy axle loads. Projects in Sri Lanka and West Africa employ 390 × 190 × 190 mm solid units as working-platform fill and temporary road base, replacing costly imported aggregate and extending pavement life by > 15 %.
♻️ Environmental & Brown-Field Remediation
Up to 90 % of the mix can be fly-ash, tailings or demolition fines. By locking heavy metals into a calcium-silicate-hydrate matrix, leaching tests (TCLP) show values 50 % below EPA limits-perfect for contaminated-site encapsulation, landfill berms or river-bank protection where clay sourcing is restricted.
🌿 New-Energy Infrastructure
Solar CSP: Dark-pigmented bricks (absorptance 0.94) are stacked as low-cost thermal-storage cores in small-scale concentrated-solar heaters.
Wind Towers: 600 mm interlocking hollow blocks serve as gravity foundations for 3–5 MW turbines, eliminating poured concrete and allowing crane-free assembly in remote areas.
From city skylines to desert solar fields, UNIK non-fired bricks turn waste into versatile, durable and carbon-saving building elements-supporting global goals for cleaner construction and smarter resource use.
Service,dellivery and shipping:
We pride ourselves on being a leading manufacturer of high-quality construction equipment and machinery. Our team of experienced professionals has been dedicated to designing, developing, and producing state-of-the-art block machines that meet global standards. With years of expertise, we have been committed to providing our clients with equipment that is durable, efficient, and cost-effective. Our cutting-edge technologies and advanced manufacturing processes ensure that our clients receive superior-quality products that cater to their specific needs. We take pride in our customer-centric approach and strive to build long-lasting relationships with our clients. Our aim is to help our clients enhance their construction projects by providing them with high-end solutions at an affordable price. We welcome you to our block machine factory and are confident you will be impressed with our range of products and services.
