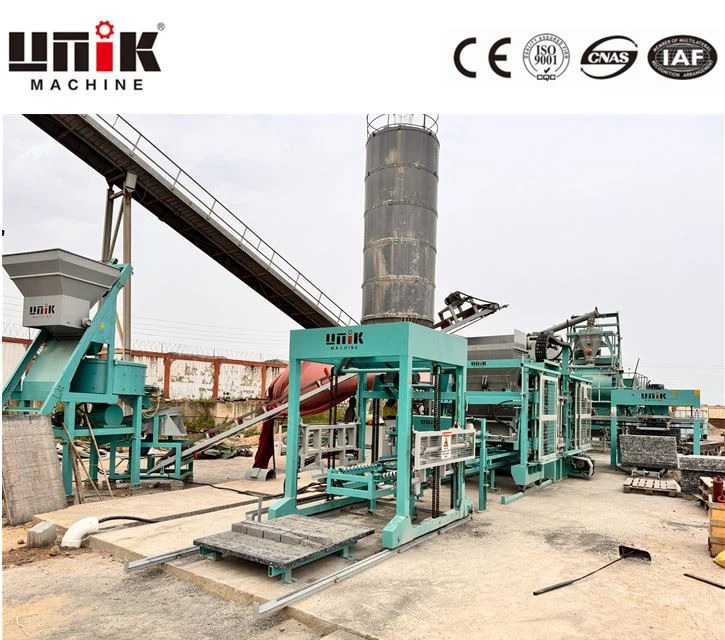

Automatic Cement Block Moulding Machine

UNIK automatic cement block moulding machine is engineered for extreme durability and precision. The main frame is cut from 50 mm-thick Mn-alloy structural plate, fully welded, shot-blasted and stress-relieved to create a rock-solid backbone that resists impact, fatigue and corrosion in 24-hour shift environments. Inside, the vibration table is cast from an ultra-tough proprietary alloy and induction-hardened to 52 HRC, giving it the strength to withstand 68 kN vibratory forces and abrasive quartz sands year after year. Every mating surface is line-bored to ±0.02 mm and laser-levelled to ≤0.1 mm/m flatness, guaranteeing perfect alignment of cylinders, moulds and guides for consistently high-density, low-tolerance blocks. Whether you operate in desert heat, coastal humidity or high-altitude cold, this rugged platform delivers 98 % up-time, cuts maintenance costs and earns the trust of customers who demand premium quality under the harshest conditions on earth.

Frame Strength from the Ground Up
Every UNIK automatic cement block moulding machine starts with a 50 mm-thick main frame cut from premium Mn-alloy structural plate. After precision CNC bevelling, the entire frame is welded in one piece, then shot-blasted to SA 2.5 cleanliness and stress-relieved at 580 °C for 6 hours. This sequence eliminates micro-cracks and warping, giving a rigid, impact-resistant backbone that stays square after 200,000+ cycles-even under 68 kN vibratory force.
Vibration Table – Ultra-Tough Alloy Core
The vibration table is cast from a proprietary high-toughness alloy (impact energy ≥ 80 J at -20 °C). Rails, wear strips and mounting bosses receive "special-process" submerged-arc welding followed by induction hardening to 52 HRC, delivering exceptional fatigue resistance in 24-hour continuous-shift plants.
Precision Finishing
All bolt holes are line-bored in a single set-up to ± 0.02 mm tolerance, guaranteeing perfect alignment of hydraulic cylinders, moulds and linear guides. Final assembly includes laser-level calibration, so the table surface flatness is ≤ 0.1 mm/m-critical for producing high-density kerbs and interlock pavers with ≤ 0.3 mm height deviation.
Field-Proven Durability
From 45 °C desert sites to humid coastal ports, UNIK machines operate reliably with 98 % up-time. The Mn-alloy frame resists chloride corrosion, while the heat-treated table shrugs off abrasive quartz sands and steel-reinforced demolition waste.
Result: lower maintenance, longer life, and consistently premium blocks-exactly why customers trust UNIK for the harshest jobs on earth.

Manufacturing

Delivery

workshop

Process

UNIK Machinery is led by a team of seasoned industry experts and a multidisciplinary professional technical team. Our robust product development capabilities have established us as a leading international player in the industry. Our series of products are not only deeply rooted in rich cultural heritage but also incorporate the latest global technological advancements, ensuring that every technical detail meets market and customer needs.We are dedicated to assisting our customers in building high-end green factories, promoting sustainable development, and continuously optimizing and upgrading our products to lead the future of the industry.
For more information on how UNIK Machinery can support your business with our innovative and sustainable solutions, please contact us at
