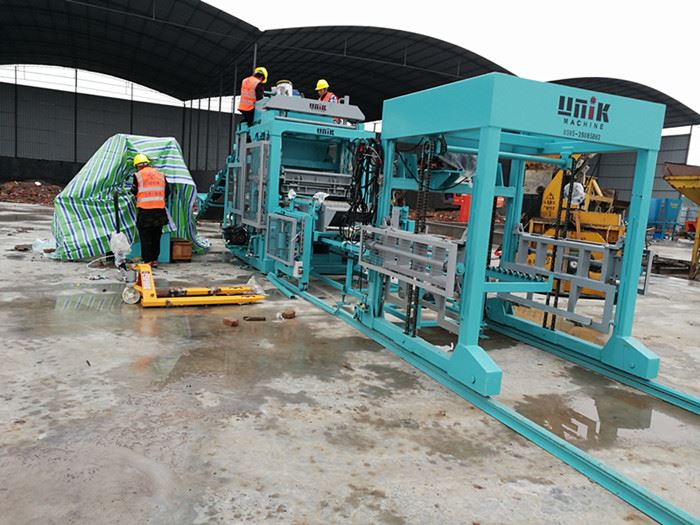

The QT12-15 is a large‑scale fully automatic concrete block forming machine, specifically designed for high‑output, highly automated industrial mass production. The "12" indicates that it can produce 12 hollow blocks of 390×190×190mm per cycle, and "15" refers to the standard molding cycle time of approximately 15 seconds.

This model is one of the technologically mature large‑scale block forming machines currently available in the Chinese market. It adopts multiple domestically leading and internationally latest technologies, fully reflecting the crystallization of Chinese‑German technological expertise – high technical content, advanced design concepts, and user‑friendly design. The QT12-15 is a comprehensive upgrade from the QT10-15, with an equipment investment increase of about 30%, an output increase of about 35%, and significantly reduced unit energy consumption.

This machine is suitable for large‑scale industrial production and can produce a variety of concrete products, including hollow blocks, solid bricks, paving bricks, curbstones, grass planting pavers, slope protection bricks, and more. With its outstanding production efficiency and stable product quality, the QT12-15 has become one of the preferred machines for large‑scale block production projects both domestically and internationally.

















Dimension	5000×2450 ×2930mm
Weight	6T
Pallet size	880 ×680mm
Power	42.15 kW
Vibration method	Siemens motors
Vibration Frequency	3800-4500 r/min
Cycle time	15-20s
Vibration Force	50-70KN













High output, outstanding efficiency

The QT12-15 has a molding cycle of only 15–25 seconds, producing 12 hollow blocks of 390×190×190mm (or 60 standard bricks of 240×115×53mm) per cycle. The 8‑hour shift output can exceed 100,000 pieces. For 400×200×200mm hollow blocks, the daily output can exceed 23,000 pieces.

Strong and durable frame structure

The frame is manufactured using high‑strength steel sections and special welding processes, making it extremely rugged. The guide columns are made of super‑strength special steel with fine machining and hard chrome plating, offering excellent torsion resistance and wear resistance. The overall mechanism features accurate positioning and a long service life.















Products	Pic	Size	Capacity	Cycle time	Daily capacity
Hollow block		390 ×190 ×190mm	5pcs/pallet	15-20s	7200pcs
Hollow brick		240 ×115 ×90mm	16pcs/pallet	15-20s	23040pcs
Brick		240 ×115 ×53mm	34pcs/pallet	15-20s	48960pcs
Paver		200 ×100 ×60mm	20pcs/pallet	15-20s	28800 pcs





One machine, multiple uses – a wide range of products
By changing molds, the same machine can produce hollow bricks, solid bricks, colored paving bricks, interlocking bricks, curbstones, grass planting pavers, slope protection bricks, and more. Some models are equipped with a secondary spreading mechanism, allowing the production of two‑tone or multi‑colored paving bricks and imitation stone bricks.

Flexible investment, fast return
Equipment prices range from tens of thousands to over a million yuan, covering everything from small manual machines to large fully automatic production lines. Raw materials such as fly ash, slag, construction waste, and other industrial by‑products can be used to replace natural sand and gravel, significantly reducing production costs.

















Intelligent control system

The machine uses a brand PLC control system such as Siemens, equipped with a human‑machine interface touchscreen. Operation is simple and intuitive – ordinary workers can get started after brief training. The control system has been developed based on 20 years of practical production and design experience, and features powerful fault self‑diagnosis capabilities, providing timely alerts to facilitate troubleshooting. It also supports remote monitoring, control, and diagnostics.

Flexible adaptability to raw materials and products

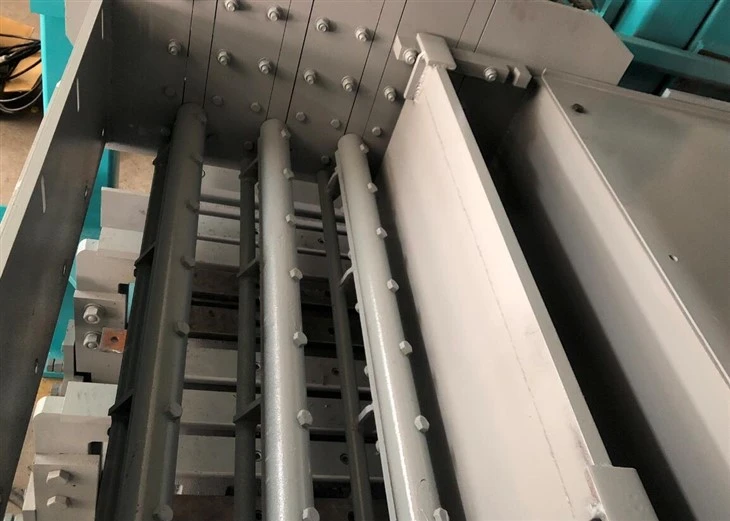

Raw materials can include a wide range of materials such as crushed stone, sand, cement, fly ash, furnace slag, steel slag, coal gangue, tailings, construction waste, and more. By changing molds, the machine can produce hollow blocks, solid bricks, paving bricks, curbstones, grass planting pavers, slope protection bricks, and various other products. The unique storage and material distribution mechanism ensures precise feeding and consistent product density uniformity.





---
