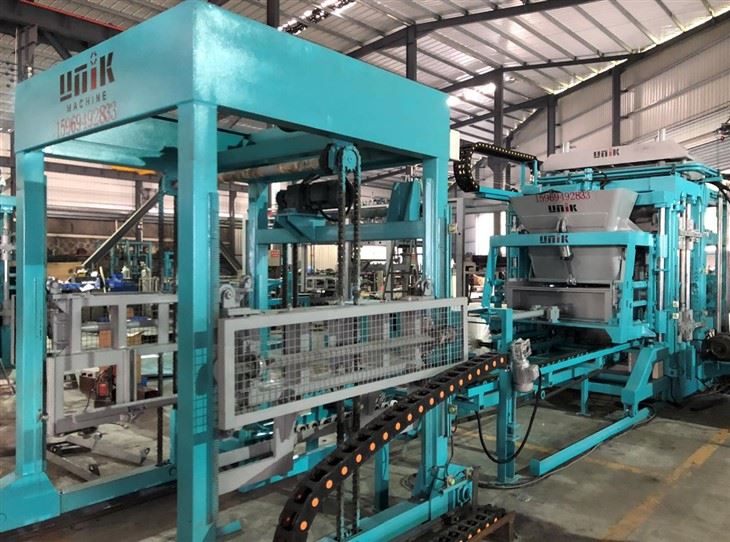

BRICKS BLOCK MAKING MACHINE













A brick and block making machine is a basic yet critical piece of production equipment in the construction industry. It converts raw materials such as cement, sand and gravel, fly ash, and construction waste into various concrete products required by the construction market through a molding process combining high-frequency vibration and hydraulic compression. From hollow blocks, solid bricks, and paving bricks to curbstones and interlocking blocks, one set of equipment can cover the main product lines for building construction and municipal paving. The equipment uses a PLC fully automatic control system – from raw material batching, mixing, and molding to automatic block output – the entire process is completed automatically by the system. The operator only needs to select the product recipe on the touchscreen.







Dimension	5000×2450 ×2930mm
Weight	6T
Pallet size	880 ×680mm
Power	42.15 kW
Vibration method	Siemens motors
Vibration Frequency	3800-4500 r/min
Cycle time	15-20s
Vibration Force	50-70KN







QT Series – Classic Fully Automatic Hydraulic Workhorse

The QT series is a mature, proven model validated in global markets, featuring a PLC fully automatic control system that achieves end-to-end automation from batching, mixing, and molding to automatic block output. The equipment can produce a variety of products including hollow blocks, solid bricks, paving bricks, curbstones, interlocking blocks, and grass planting pavers. Mold change takes 15–20 minutes, and recipes can be switched with one click.



So what exactly is the configuration of UNIK's equipment?

In one sentence: We don't cut corners where it matters.

Hydraulics: Rexroth or Yuken

PLC: Siemens or Mitsubishi

Frame: Q355B high-strength steel, 25–30 mm thick, double welding, three-layer anti-rust

Molds: Carburizing heat treatment, HRC 50–55, lifespan 200,000–350,000 bricks

Parts: Internationally standard specifications

Design life: No less than 12 years

Daily output from 5,000 to 30,000 blocks, models from QT4-25 to QT10-15, plus the UNT series (saves 20–30% electricity). Founded in 2008, exported to over 70 countries, with ISO, CE, SGS certifications. Customers across Africa, Southeast Asia, the Middle East, and South America.





Products	Pic	Size	Capacity	Cycle time	Daily capacity
Hollow block		390 ×190 ×190mm	5pcs/pallet	15-20s	7200pcs
Hollow brick		240 ×115 ×90mm	16pcs/pallet	15-20s	23040pcs
Brick		240 ×115 ×53mm	34pcs/pallet	15-20s	48960pcs
Paver		200 ×100 ×60mm	20pcs/pallet	15-20s	28800 pcs





UNT Series – Servo Energy-Saving Flagship Model

The UNT series is equipped with a third-generation servo vibration system that supplies power on demand, with standby energy consumption near zero, achieving 20–30% overall energy savings compared to conventional hydraulic models. It is particularly well-suited for energy-saving needs in environments with continuously rising electricity tariffs.





























Producible Product Types

By changing molds (15–20 minutes), the same main machine can flexibly produce a variety of concrete products. Together with the recipe management system (capable of storing 50–100 sets of process parameters), rapid product changeover is achieved:

Hollow blocks (390×190×190mm, 400×200×200mm, etc.) – for residential and commercial building wall infill

Solid bricks (240×115×53mm, etc.) – for load-bearing walls, foundations, fences

Paving bricks / interlocking blocks (200×100×60mm, etc.) – for sidewalks, plazas, parking lots; optional color spreading and embossing

Curbstones (1000×300×150mm, etc.) – for road separation, green belts

Permeable pavers, grass planting pavers, slope protection blocks – for ecological projects, sponge city initiatives

Special-shaped components – custom-made according to drawings



























































































---
