Interlocking Paver Block Making Machine
One interlocking paver block making machine is mainly composed of a main machine, a hydraulic pump station, an electric control cabinet and a block/pallet conveyor system.The classic vibration mode is especially suitable for the production of high-strength blocks and standard bricks.by changing the mould, can produce various kinds of product ,the capacity is following:

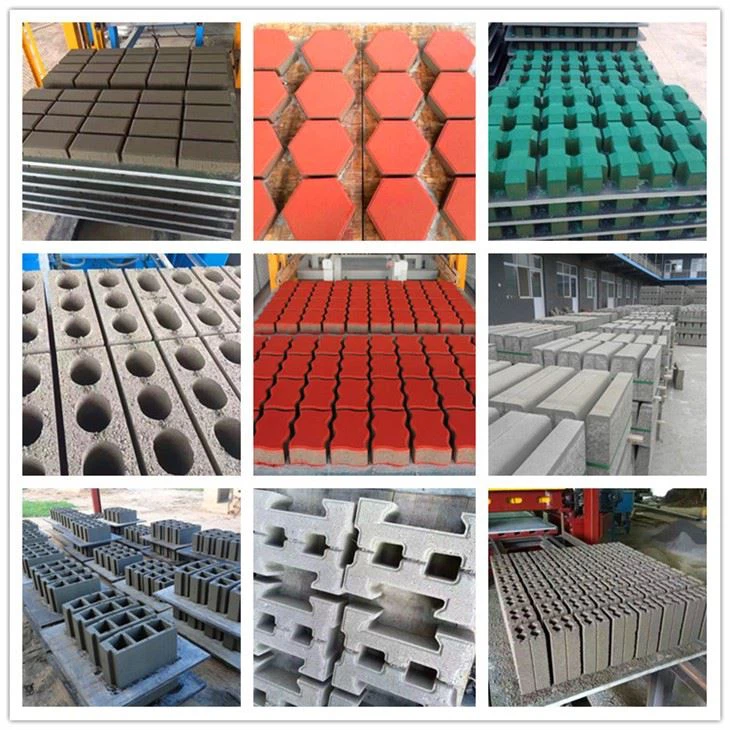

Specification of products(mm) | Number of blocks per pallet | Pieces/1 hour | Pieces/8hours | ||
Block |
| 400×200×200 | 3 | 540 | 4320 |
Hollow Brick |
| 240×115×90 | 10 | 2400 | 19200 |
Paving Brick |
| 225×112.5×60 | 10 | 2400 | 19200 |
Standard Brick |
| 240×115×53 | 20 | 4800 | 38400 |
Curbstone |
| 200*300*600 | 1 | 240 | 1920 |
Technical specification:
Dimension | 2710 ×1400 ×2330mm |
Weight | 5.5T |
Pallet size | 700 ×540mm |
Power | 20.55 kW |
Vibration method | Siemens motors |
Vibration Frequency | 3800-4500 r/min |
Cycle time | 15-20s |
Vibration Force | 50-70KN |
Main features:
1. The main engine is mainly composed of frame, hydraulic cylinder, mold, matching mold frame and punch. The machine body is constructed with cast steel parts, which enhances the stability of the equipment, makes the machine run more smoothly, ensures that the equipment will not be deformed during long-term operation, and prolongs the service life of the machine.

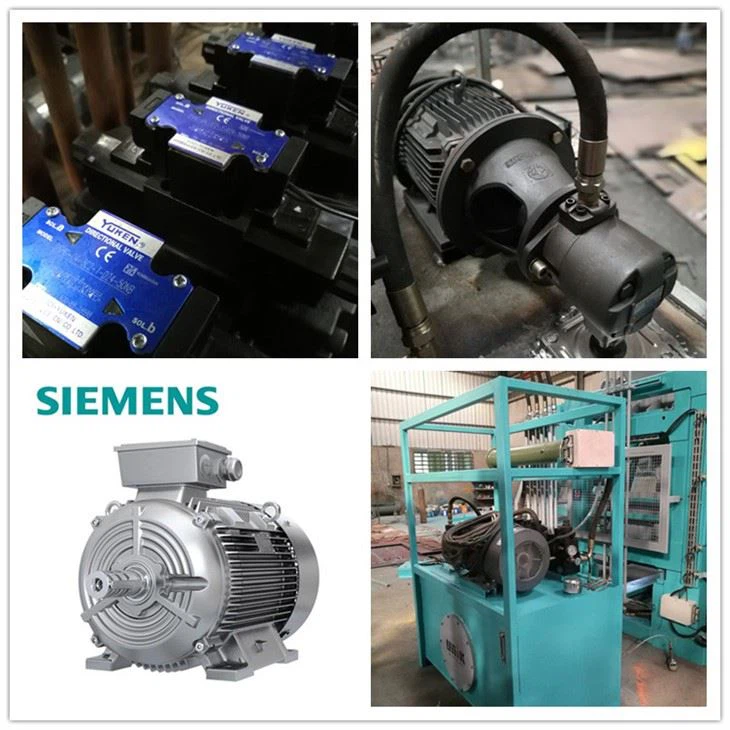

2. The hydraulic pump station is mainly composed of motors, hydraulic valves, oil blocks, oil pipes, etc. The highly concentrated hydraulic valve configuration and unique right-way design ensure that the machine can achieve continuous and normal operation and improve work efficiency.
3. The electrical control box is mainly composed of hydraulic control system and power distribution cabinet. The advanced hydraulic control system can realize fully automatic control, and the equipped displayable text controller can be adjusted at will according to the needs of users, making the operation more convenient and faster.
4. The brick-out conveyor is mainly used to convey the pressed shaped bricks. After the brick-making raw materials are pressed into bricks, the bricks are directly pushed onto the belt conveyor under the force of the push-pull cylinder, and then the bricks are automatically stacked by the manipulator. Convenient and fast, greatly improving work efficiency and output.
