How Does Pallet Selection Affect the Overall Efficiency of a Block Production Line?
In a concrete block production line, the pallet is often an overlooked component. Many investors devote most of their attention to core equipment such as the forming machine and mixer, but pay insufficient attention to the pallets that carry the blocks through the entire process of forming, conveying, and curing. In fact, the material, dimensions, and flatness of the pallet directly affect the surface quality of the blocks, the operational stability of the equipment, and the overall efficiency of the production line.

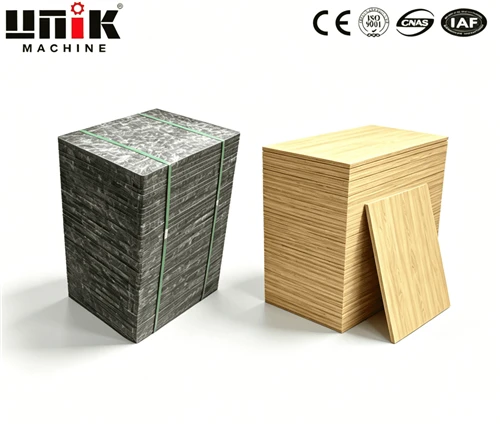

1. Pallet Material: Performance Differences Between Wooden Pallets and Fiber Pallets
Currently, the two main types of pallets on the market are wooden pallets and fiber (composite) pallets. Wooden pallets have a lower initial cost, but suffer from inherent disadvantages such as water absorption, deformation, susceptibility to wear, and a short service life. In the high‑temperature, high‑humidity environment of a curing kiln, wooden pallets repeatedly absorb and release moisture, making them highly prone to warping and deformation. This directly leads to uneven bottom surfaces on the blocks, and in severe cases, can even cause positioning errors in the forming machine and jamming during conveying.
Fiber pallets, made from glass‑fiber‑reinforced thermoplastic materials, offer significant advantages including non‑absorption, resistance to deformation, high wear resistance, and a long service life. In the high‑temperature, high‑humidity environment of the curing kiln, fiber pallets maintain excellent dimensional stability, ensuring that the bottom surface of the blocks remains consistently flat. Although the initial purchase cost is higher than that of wooden pallets, their service life is typically 5‑8 times longer, making the total cost lower from a long‑term operational perspective.
2. Pallet Dimensions: Key Parameters for Equipment Compatibility
The choice of pallet dimensions directly affects production line compatibility and efficiency. Taking UNIK Machinery's pallet feeder as an example, the compatible pallet size range is 700×540 mm to 880×1440 mm. If the pallet is too small, it cannot stably support large‑sized blocks. If the pallet is too large, it may cause jamming at the conveying tracks, elevators, and other stages. When selecting equipment, customers should choose pallets that match the mold box dimensions of the block forming machine and the target product specifications.
3. Pallet Flatness: The "Invisible Decisive Factor" in Block Quality
The flatness of the pallet surface directly determines the flatness and surface quality of the block's bottom surface. A pallet with excessive flatness deviation will cause uneven material distribution within the mold box during forming, resulting in blocks with uneven thickness at the bottom. During the palletizing stage, it may lead to unstable stack formations, increasing the risk of damage during transportation. High‑quality pallet feeders are typically equipped with pallet cleaning and flatness inspection devices to ensure that every pallet entering the forming machine is in optimal condition.
4. Pallet Management: Automated Feeding and Return Systems
In a fully automatic production line, pallet management is a systematic process. From the pallet feeder sending empty pallets into the forming machine, to the finished blocks being conveyed into the curing kiln on the pallets, to the pallets being returned to the feeding end after palletizing – the entire process forms a closed‑loop circulation system. Parameters such as the pallet feeder's load capacity (e.g., 1200 kg) and hydraulic pressure (14‑20 MPa) directly determine the single‑batch pallet supply capacity and operational stability of the system. A well‑designed pallet management system can effectively reduce pallet turnaround time and increase overall line capacity.
