Good Quality Block Making Machine Factories

good quality block making machine factories

The Three Levels of Quality

Level 1: Materials. The frame is the skeleton of the equipment. High‑quality equipment uses Q355B/Q335B high‑strength manganese steel, with 25‑30 mm thickened plates in the main load‑bearing areas. Low‑quality equipment uses ordinary steel and welded‑together structures; after two or three years, the frame deforms, mold wear accelerates, and block dimensional deviations grow larger. The difference in steel is not immediately apparent at the time of purchase – it only begins to show in the third year.

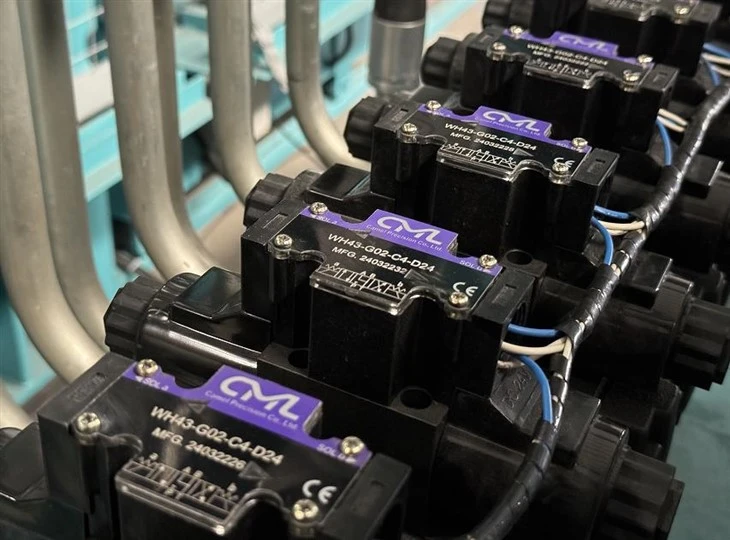

Level 2: Core components. Approximately 80% of block machine failures originate from the hydraulic system. Equipment using Rexroth or Yuken hydraulic components costs 15‑30% more than domestic brands, but can reduce hydraulic failure rates by about 80%. Control systems using Siemens or Mitsubishi industrial‑grade PLCs support fault self‑diagnosis, one‑click recipe recall, and remote diagnostics, with stability far exceeding that of ordinary PLCs. The money saved on core components in low‑cost equipment often ends up being paid back later through higher maintenance costs and production downtime losses.

Level 3: Manufacturing processes. With the same steel and the same components, differences in welding techniques, assembly precision, and factory testing standards can result in vastly different final equipment quality. Are critical welds inspected by non‑destructive testing? Is a load test performed before shipment? The presence or absence of these procedures determines whether potential issues are eliminated before the equipment leaves the factory, or whether they first appear when the machine is started up at your plant.

Technical Thresholds of High‑Quality Equipment

A truly high‑quality block forming machine must meet standards across the following dimensions simultaneously:

Spreading uniformity. Hollow blocks and paving bricks have complex cavity structures. High‑quality equipment uses a separate storage‑and‑spreading design, with a forced arch‑breaking mechanism that generates centrifugal discharge, allowing material to be rapidly and evenly injected into every corner of the mold cavity. The weight tolerance of a single product is controlled within ±5%. Rejects caused by uneven spreading are far more difficult to salvage than those caused by insufficient vibration.

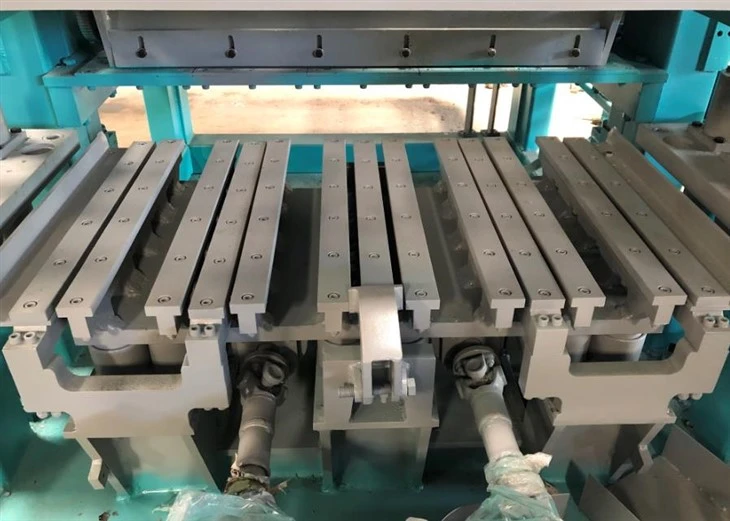

Vibration system. Vibration acceleration determines the density and strength of the blocks. High‑quality equipment uses a mold‑box and press‑head resonance pressing method, achieving compaction through directional high‑frequency vibration. The forming cycle is 15‑20 seconds, with a per‑shift output of 7,200 hollow blocks or 48,960 solid bricks. The efficiency difference in vibration systems is directly reflected in per‑shift output and energy consumption per block.

Servo energy saving. High‑quality fully automatic equipment is equipped with a third‑generation servo vibration system that supplies power on demand, with standby energy consumption near zero, achieving 20%‑30% overall energy savings compared with conventional models. Against a backdrop of continuously rising energy costs, this translates into an annual operating cost difference of tens of thousands or even hundreds of thousands of units of currency.

Quick mold change. High‑quality equipment features a quick mold change system that can complete mold changes within 15‑20 minutes. Combined with 50‑100 sets of process parameters stored in the PLC, product changeover requires only selecting the product code – the equipment automatically adjusts all parameters. Traditional equipment requires hours of mechanical adjustment for product changeover – the difference in time is the difference in production capacity.

Products	Pic	Size	Capacity	Cycle time	Daily capacity
Hollow block		390 ×190 ×190mm	5pcs/pallet	15-20s	7200pcs
Hollow brick		240 ×115 ×90mm	16pcs/pallet	15-20s	23040pcs
Brick		240 ×115 ×53mm	34pcs/pallet	15-20s	48960pcs
Paver		200 ×100 ×60mm	20pcs/pallet	15-20s	28800 pcs

 .



Manufacturing

Delivery

workshop

Process
