block making machine in south africa
Products Description
The block making machine produced by UNIK for use in South Africa is popular due to its ability to produce a wide range of brick sizes and shapes, with precision and consistency. The machines are designed to withstand the harsh African environment and are built using high-quality materials, making them durable and long-lasting.Unik has also made significant strides in developing block making machines that are both energy-efficient and environmentally friendly. The machines are equipped with advanced technology that allows for low power consumption, reducing the overall cost of production and ensuring that they are environmentally sustainable.
Use 4 frequency vibration motors, The distribution of vibration power and frequency is relatively uniformly hydraulic vibration; the vibration frequency can be accurately adjusted, the range of adjustment of different raw materials and different intensity products is increased, the control of product strength is increased, and the service life of the mold is effectively extended.
Fully automatic block molding machine frame structure adopts high -quality alloy structure steel plate. After the overall welding, it is carried out, eliminating rust removal, eliminating welding stress, etc. The overall rack structure is strong and tough,Ensure its strength, toughness and durability
Electric control boxes use 15 -inch human -machine interface, ABB button switch, emergency stop switch; word switch;
Schneider Switch, France, Omron (Omron) PLC; Schneider In contactor in France; Heat Electrical Electric, Air Switch, Wiring terminals and Aviation Sites are provided by Weidmuller products (protection levels in the third level)
According to the actual needs of customers, after the finished product, it can be equipped with a automatic palletizer, or it can also expand the production line with a higher degree of automation.The space occupies a small space, the layout is compact, and the use of finished space utilization
Products parameters
| Dimension | 5900×2040×2900mm |
| Pallet Size |
1100×950×28-35mm |
| Vibration Frequency | 3800-4500 r/min |
| Hydraulic Pressure | 25 mpa |
| Vibration Force | 90 KN |
| Cycle time | 15-25s |
| Power | 63.45kW |
| Weight | 12800kg |
| Product | Product size | pcs/pallet | pcs/hour | Image |
| Hollow block | 400x200x200mm | 10 PCS | 1800PCS |  |
| Hollow block | 400x150x200mm | 12 PCS | 2160 PCS |  |
| Rectangular paver | 200x100x60/80mm | 36PCS | 8640 PCS |  |
| Interlocking paver | 225x112x60/80mm | 24PCS | 5760PCS |  |
| Kerbstone | 200x300x600mm | 3PCS | 720PCS |  |

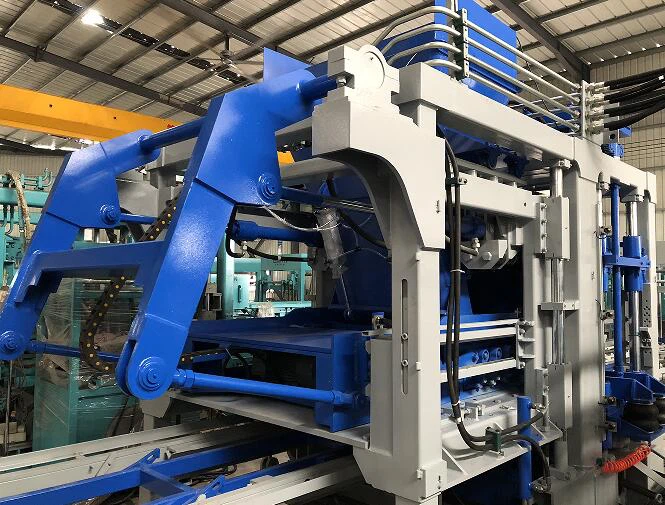

Product Picture
Our factory
Manufacturing
Delivery
workshop
Process

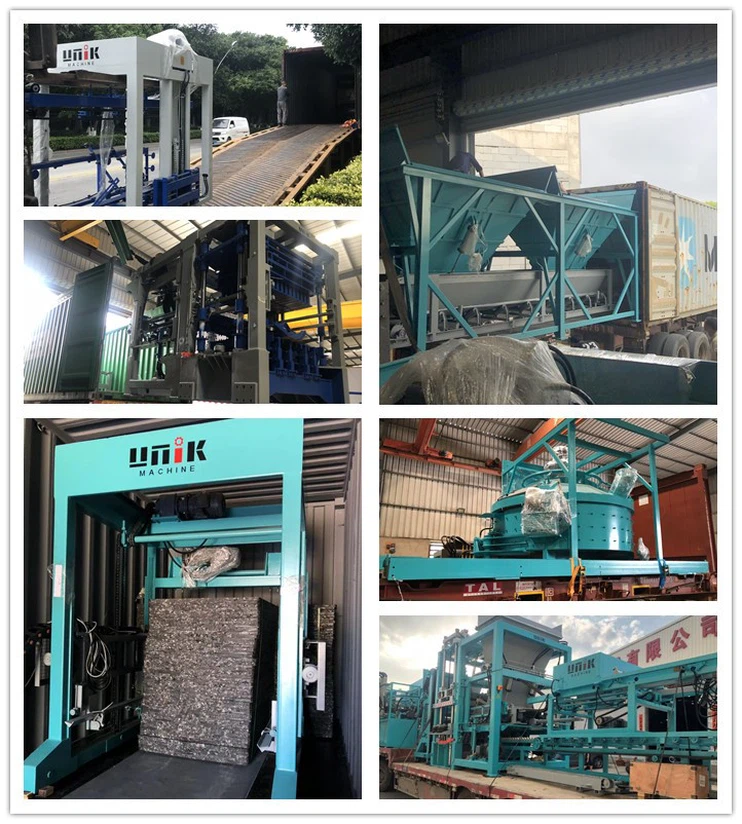

Packaging and shipping are crucial aspects of delivering block machines to their intended destinations. Block machines are heavy and bulky, and they need to be packaged and shipped carefully to ensure that they arrive at their destination in good condition.
The packaging of block machines begins with the selection of suitable packing materials. The packaging materials should be able to withstand the weight and size of the machine and protect it from damage during transportation. The primary packaging materials used in most cases are metal frames, wooden boxes, or pallets. These materials provide a strong foundation for the block machine and can protect it from damage during handling and transportation.
When packing the block machine, it is essential to ensure that it is secured tightly inside the packaging materials. This means using straps, banding, or other suitable materials to hold the machine in place and prevent it from moving during transportation. Loose packaging can lead to significant damage to the machine and even cause accidents during transportation.
