Automated Palletizer Systems

Automated Palletizer Systems

The intelligent palletizing machine is a special palletizing system developed for the finished bricks of the current block production line, which requires manual palletizing, high labor intensity, low production efficiency, and mechanization of the finished product shipment loading and unloading vehicles. This system is independently placed in the product maintenance yard. Nearby, for in-situ palletizing of cured products, it can also be connected in series with the block production line to achieve online palletizing. The whole machine consists of 5 parts: lifting device, brick feeding and palletizing, numerical control brick counting and arrangement mechanism, palletizing and grouping device, stacking and threading mechanism, etc., realizing the bottomless pallet of palletizing bricks. The whole machine adopts electric motor and pneumatic as driving power, and the electric drive is frequency conversion speed regulation, which has the characteristics of intelligence, stability, high efficiency, low power consumption and small space occupation.

Technical features:

●Servo positioning and laser detection, two forklift holes can be reserved in any layer, so that the loading and unloading truck is mechanized without manual labor.

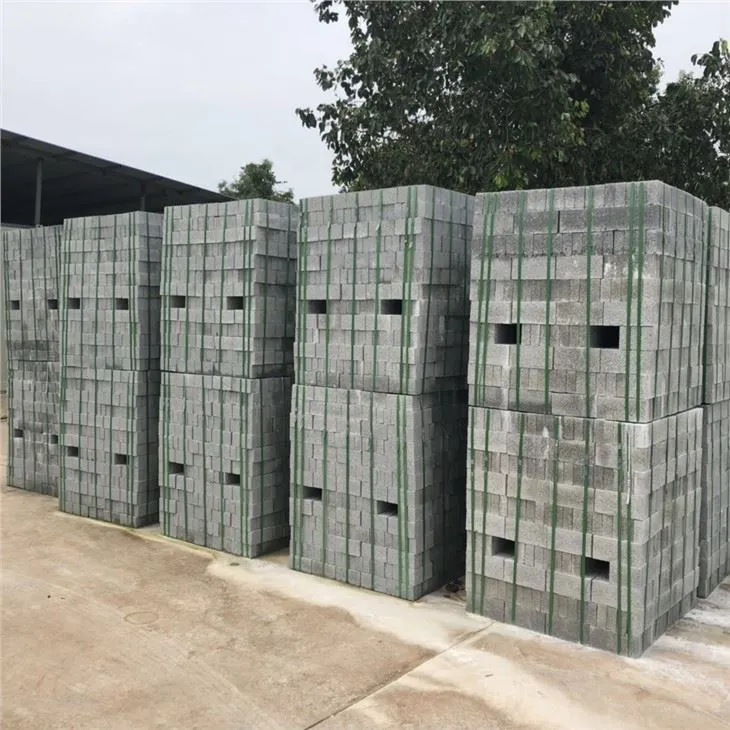

●Cross and staggered palletizing, the palletizing and stacking is stronger, and it is not easy to loose packages and brick damage during turnover.

●Intelligent detection and control, products of the same specification can be palletized in various sizes such as conformal or rectangular palletizing, which is convenient to adapt to transportation vehicles and achieve maximum carrying.

●Suitable for a variety of conventionally arranged brick types, such as various sizes of blocks, porous bricks, solid bricks, pavement bricks, Dutch bricks, well wall bricks, water conservancy bricks, etc.

●Remote control operation, convenient and fast, correct for repairing bricks and controlling equipment

FAQ:

1.Which machine is most suitable for my project?

You should make sure how much work space you have to produce and store blocks, how many blocks you want to produce in a day, what your initial budget for this machine.

2.Can I use just one machine to make every type of blocks?

Yes,Our block making machine is designed to meet the mass production of various kinds of concrete masonry blocks like brick, blocks, pavers, slabs, curbs, interlocking types etc by just changing the mould. all you need to do is remove one type mould and replace with another, which cost at half hour for changing time.

3.what raw materials are required to produce blocks?

Cement, sand, aggregate Fine and coarse aggregates make up the bulk of a concrete mixture. The max diameter should require within 10mm.

4.Can I get installation for this machine?

We will arrange our engineer to your factory to guide installation and training,the customer will be responsible for all wages and expense of engineer.

5.How about warranty?

we promise 18 months guarantee for date of purchase, and agrees to repair or replace any defective part without charge,This warranty does not cover in cases of improper user, incorrect handling, insufficient maintenance, act of third parties, unauthorized service or modifications to the machine, damage resulting from accident, abuse, lack of reasonable care, normal wear or the addition of any other equipment not provided with product
