Hydraulic Block Machine

Hydraulic Block Machine Hydraulic block machine has high production efficiency and high process applicability. Hydraulic system design takes full account of the molding process of fly ash brick. It collected a large number of empirical data from the production site as a basis for design and...

Details

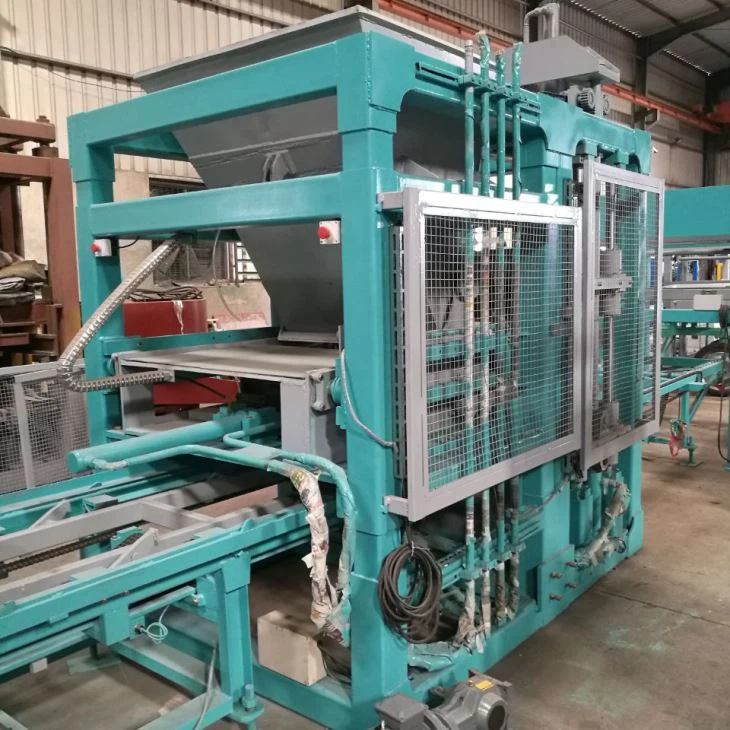

Hydraulic Block Machine

Hydraulic block machine.jpg

Hydraulic block machine has high production efficiency and high process applicability. Hydraulic system design takes full account of the molding process of fly ash brick. It collected a large number of empirical data from the production site as a basis for design and calculation, to make hydraulic system design is reasonable, pumps and accumulators are fully matched and hydraulic passageway design is reasonable. It also set the energy recovery circuit and the system has high efficiency, less heat and the number of high suppression.with the new-generation touch screen display panel,It will effectively reduce the misuse, or some of the errors arising from when you do not understand the operation, and has brought very effective help for the use of the entire brick machine automation and safe production.



Main features:

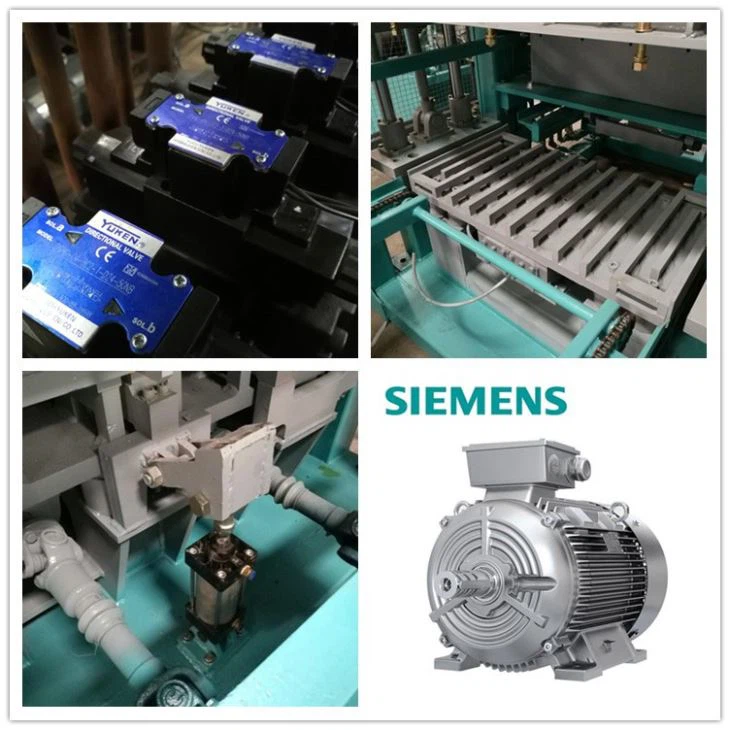

1.Well-known brand hydraulic valve and cooler ensure that the hydraulic system is reliable and low failure rate.

2.Vibration separation technology. Installation of vibration support plate, while the installation of deputy pressure head, with shock rubber pads, completely deadened interference of vibration and suppression.

3.A wide range of products. The installation of face mix equipment, can also produce hollow blocks, multi-row hole bricks, hollow bricks, curbs, split blocks, color pavement bricks, grass bricks, washed bricks and other products.

4.The use of advanced technology in Germany block machine, is heavy and steady. The weight is more than 30% of the domestic models with same output, and its shock absorption effect is significant.

Germany tech.jpg

Technical Specification:


Dimension

5900×2040×2900mm

Pallet Size

1100×680×25~45mm

Vibration Frequency

3800-4500 r/min

Hydraulic Pressure

25 mpa

Vibration Force

70 KN

Cycle time

15-20s

Power

42.38kW

Weight

11800KG


Capacity:

Product size(mm)

Pcs./Pallet

Pcs./Hour


     8

    1440

400*150*200 TIM截图20171009101955.jpg

    8

    1440

200*100*60 TIM截图20171009102234.jpg

    27

    6480


    20

   4800

Wooden pallets.jpg

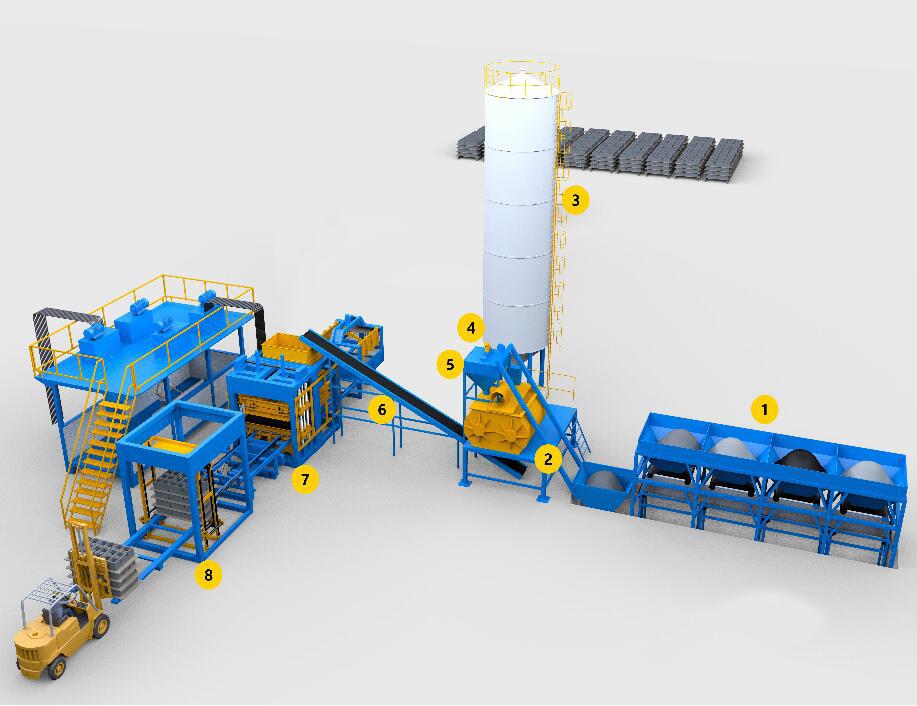

Fully automatic block production line:

The fully automatic block production line is made up of batching station,mixer belt conveyor,interlocking brick making machine and automatic stacker.the green blocks came out of brick making machine will be transported to stacker and lifed to a prearranged height by stacker,when the pallets come to the appointed layers, it should be carried to the curing area by hand pallet truck or forklift.

Fully automatic block production line.jpg


1.Batching station

2.JS Compulsory Mixer

3.Cement silo

4.screw conveyor

5.Cement scale

6.Conveyor belt

7.block machine

8.Automatic stacker


hydraulic block making machine.jpg


Our Client.jpg
