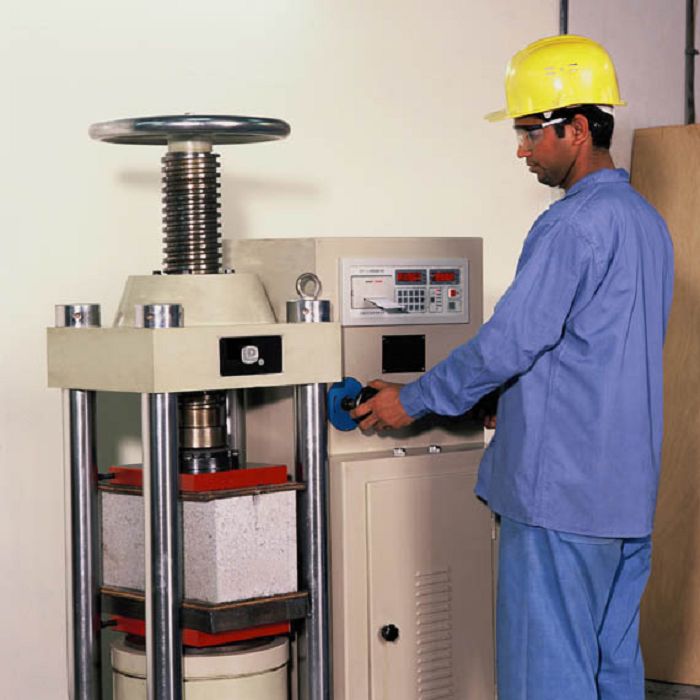

Block Testing Machine
The pressure block testing machine is loaded hydraulically, and uses hydraulic servo control technology to test the anti-pressure performance of building materials such as cement, mortar, concrete, and bricks, and displays the loading force value, loading speed, and loading curve. The test data is automatically processed, stored and printed.
Specification:
1. max. capacity | 2000KN |
2.measuring range | 0-2000 |
3.relative error | ±1% |
4.size of platens | 220*280mm |
5.max.distance between upper and lower platens | 330mm |
6.max.travel of ram | 40mm |
7.diameter of ram | Ø250mm |
8.rated pressure | 40Mpa |
9.power | 0.75 kW 3-pahse |
10.dimension | 960*460*1170 mm |
11.net weight | 800kg |
Operation steps of 2000KN concrete pressure testing machine:
1. Turn on the power, the red indicator light is on, if not, turn the power switch clockwise.
2. Select the appropriate gear.
3. Press the "Set" button to set the system (number, age, etc.), if you don't need to adjust, go directly to the next step.
4. Press the "clear" key to clear.
5. Put the test piece into the center.
6. Adjust the handwheel so that the upper pressure plate is about 5mm away from the test piece.
7. Press the "Start" button to start the motor. (The red signal light is on, if it is off, the speed will not be displayed, and the test data cannot be saved and printed).
8. Close the oil return valve, slowly open the oil delivery valve, and control the delivery valve to load at the required rate until the test piece ruptures.
9. Open the oil return valve and close the oil delivery valve.
10. Remove the pieces of test piece.
11. Put in the second test piece, and then press the "start" button, repeat steps 8-10.
12. Put in the third test piece, press the "start" button again, and repeat steps 8-10.
13. Open the oil return valve to unload.
14. Press the "print" key to print out all the detection data in the number.
15. After the test is over, press the "Stop" button to stop the motor.
