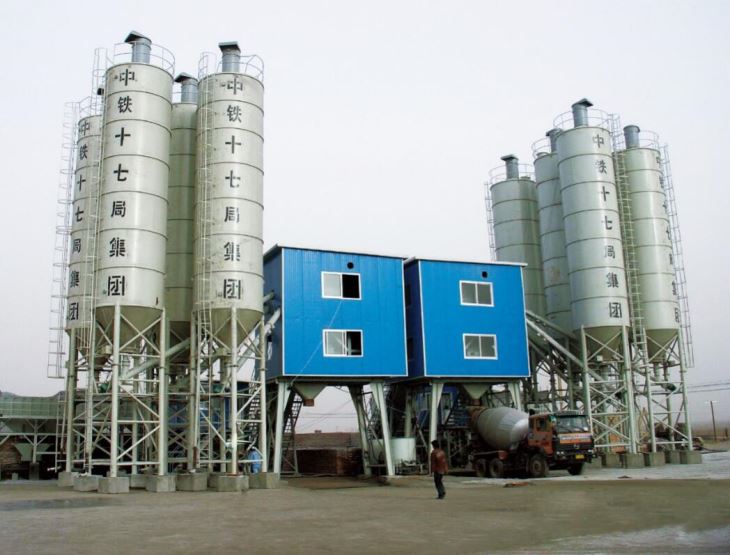

Concrete cement silo
It is a closed storage tank for bulk materials, suitable for storing various bulk materials such as grain, cement and fly ash. Can be divided into bolted cement silo and welded silo. We have absorbed German and Italian technology with the advantages of China's cement silo integrated design and manufacturing. Using a screw conveyor to convey the material to various locations, the silo is easy to install, safe and reliable ,is an ideal bulk storage tank for various mixing stations.
Main features:
1.It is suitable for storage silos of bulk cement in engineering construction, commercial concrete mixing stations, road and bridge water conservancy projects, and urban construction projects.
2.Water-proof, moisture-proof, prevent cement loss, reduce urban air dust pollution, occupy a small area, long service life, low cost, etc.
3. The cement silo is generally a cylindrical support structure. The upper part is provided with dust catcher equipment to prevent dust from leaking, and the lower part is equipped with an arch breaker device to prevent dust from agglomerating and to make the powder discharge smoothly.
4. The cement silo has a cylindrical structure. The bottom of the silo is supported by four circular tube legs to support the entire silo body. The entire silo is in the form of a steel structure and welded. At the top, a dust collector and a pressure relief valve are provided
Technical specification:
Capacity | Diameter(m) | Height(m) | Total height(m) | Mixer type | Screw conveyor type |
30T | 2.5 | 3.5 | 9 | JD350 | LSY163 |
50 T | 3 | 5 | 10.5 | JS500 | LSY180 |
60 T | 3 | 6.5 | 12 | JS750 | LSY180 |
80 T | 3 | 8 | 13.5 | JS750 | LSY180 |
100 T | 3 | 9.6 | 14.5 | JS1000 | LSY230 |
120 T | 3 | 11.5 | 15 | JS1000 | LSY230 |
150 T | 3 | 12.8 | 18.6 | JS1500 | LSY230 |
200T | 4.5 | 18.6 | 25.2 | JS1500 | LSY 230 |
300T | 4.5 | 24.6 | 29.5 | JS2000 | LSY 230 |
500T | 6 | 22.2 | 28.8 | JS3000 | LSY 230 |
