What Is a "Heavy‑Duty" Block Forming Machine?

In the block forming machine industry, "heavy‑duty" is not a marketing term – it is defined by three dimensions: frame structure, core component specifications, and design life.

A true heavy‑duty block forming machine features a main frame manufactured using high‑strength steel and special welding processes, capable of withstanding over 100 tons of cyclic pressure without bending or deforming. The frame adopts a welded heavy steel structure with a split design that extends equipment life. The total weight is typically over 8 tons, with some flagship models exceeding 13 tons. The exciting force generally ranges from 60‑100 KN.

The essential differences between heavy‑duty and standard equipment:

Frame structure and rigidity – Heavy‑duty equipment uses high‑strength steel frames and reinforced components, providing superior rigidity that reduces deformation and vibration losses during continuous operation. Standard equipment uses ordinary steel and welded‑together structures.

Exciting force and compaction capability – Heavy‑duty equipment achieves an exciting force of 60‑100 KN or more, ensuring high density and strength in the blocks. Standard equipment typically has an exciting force of 50‑70 KN.

Design life – Heavy‑duty equipment has a design life of over 10 years and can meet the demands of 24‑hour continuous production. Standard equipment typically has a design life of 3‑5 years.

Production capacity and efficiency – Heavy‑duty equipment achieves an 8‑hour shift output of 12,000‑18,000 hollow blocks and 42,000‑76,800 standard bricks. Standard equipment has a relatively lower production capacity.













Special Requirements of the Guatemalan Market

Guatemala's construction market has certain unique conditions that impose specific requirements on block forming equipment:

Raw materials are predominantly crushed stone and volcanic ash. The common raw material in Guatemala is crushed stone (Gravier). In addition, the country has abundant volcanic ash resources, and some high‑end equipment needs to be capable of handling this special material. Qunfeng Machinery has customized QS2000 and QS1300 models for Guatemalan customers that can produce blocks using volcanic ash.

Power stability presents challenges. Electricity supply in some parts of Guatemala is not sufficiently stable, and diesel‑driven mobile block machines offer a flexible solution. Equipment must feature a wide voltage design to adapt to grid fluctuations.

Environmental compliance requirements are increasingly stringent. The Guatemalan government is imposing increasingly strict green requirements on the construction industry, and all forming equipment must be equipped with efficient dust removal and noise reduction systems.

Equipment needs to be modular and mobile. To address the needs of dispersed construction sites, a new generation of forming machines is beginning to adopt modular designs, allowing users to flexibly assemble equipment units according to site space, thereby reducing transportation and installation costs for large equipment.





Dimension	5000×2450 ×2930mm
Weight	6T
Pallet size	880 ×680mm
Power	42.15 kW
Vibration method	Siemens motors
Vibration Frequency	3800-4500 r/min
Cycle time	15-20s
Vibration Force	50-70KN

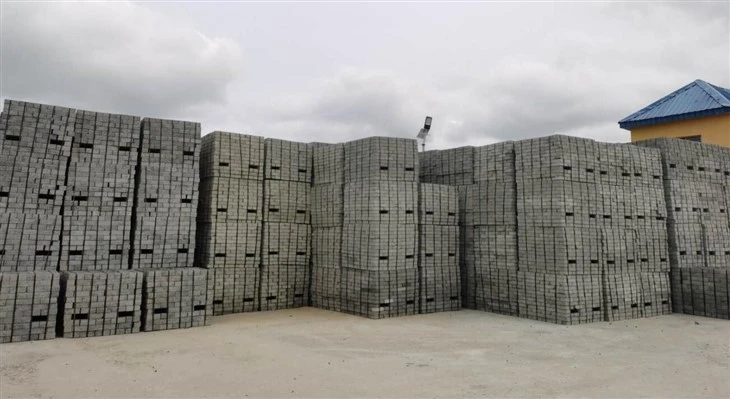

Products	Pic	Size	Capacity	Cycle time	Daily capacity
Hollow block		390 ×190 ×190mm	5pcs/pallet	15-20s	7200pcs
Hollow brick		240 ×115 ×90mm	16pcs/pallet	15-20s	23040pcs
Brick		240 ×115 ×53mm	34pcs/pallet	15-20s	48960pcs
Paver		200 ×100 ×60mm	20pcs/pallet	15-20s	28800 pcs



Core Technical Indicators of Heavy‑Duty Equipment

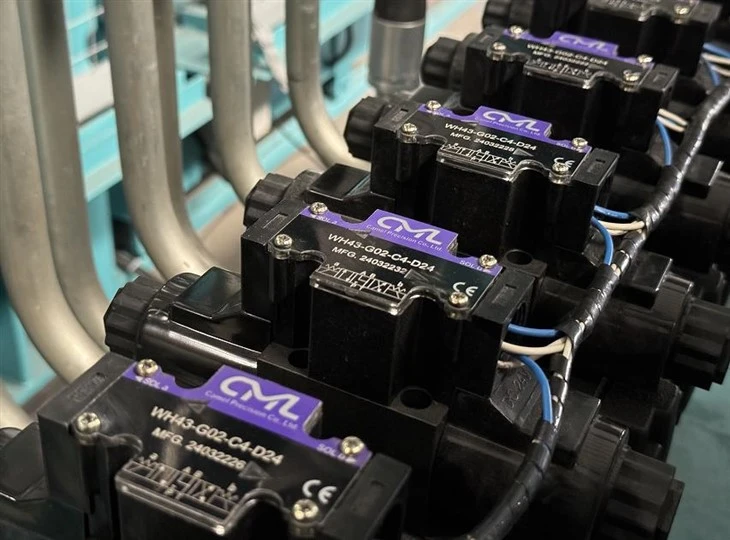

Exciting force and vibration system. Exciting force is the core indicator of vibration system performance. The exciting force of heavy‑duty equipment typically ranges from 60‑100 KN. Driven by electro‑hydraulic technology with adjustable frequency and amplitude, it achieves low‑frequency feeding and high‑frequency forming. High‑quality heavy‑duty equipment uses high‑frequency, multi‑direction vibration systems mounted on stable vibration‑damping platforms. Heavy‑duty models such as the QGM QT10 are equipped with high‑power vibration units, providing powerful, evenly distributed vibration energy for rapid material distribution and uniform compaction. The Qunfeng Machinery QFT18-20 model has a rated pressure of 21 MPa and a vibration frequency of 0‑75 Hz.

Frame structure and rigidity. The frame of heavy‑duty equipment uses a welded heavy steel structure with a split design that extends equipment life. The ZENITH QT series uses stress‑relieved heavy‑duty welded steel frames. The ZN2000-2 uses reinforced frames and high‑strength components, providing superior rigidity that reduces deformation and vibration losses during continuous operation.

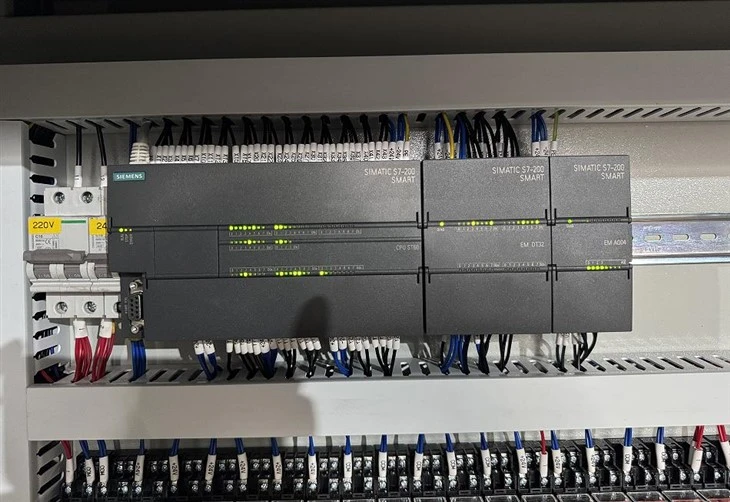

Control system and automation. Heavy‑duty equipment generally uses PLC computer control systems with HMI touchscreens, featuring fault self‑diagnosis and error‑correction functions. The equipment can store multiple process recipes for one‑click recall during product changeover. Some high‑end models are equipped with intelligent cloud service systems, featuring online monitoring, remote fault prediction, and self‑diagnosis capabilities.

Servo energy saving. High‑end heavy‑duty equipment is equipped with servo vibration systems that supply power on demand, with standby energy consumption near zero. The ZENITH 940 HS supplies power on demand through its servo‑hydraulic system, reducing energy consumption by 50% compared with previous models. The servo vibration system of the Qunfeng Machinery QFT18-20 can significantly improve vibration efficiency.
