Fully Automatic Concrete Block Making Machine Price
Fully Automatic Concrete Block Making Machine Capacity:
1. Raw materials:
The production of concrete block requires the use of a variety of raw materials, including cement, fly ash, river sand, construction waste, slag, etc. These materials play different roles in the mixing process, such as cement provides cohesion, and fly ash and slag help improve durability and compressive strength.
2. Equipment:

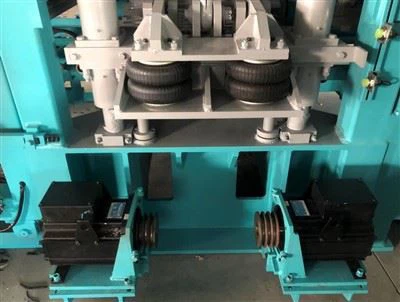

The concrete block making machine is usually composed of several key components, including the distribution system, hydraulic system, vibration forming system, control system, etc. These devices ensure the automation and efficiency of the production process. For example, hydraulic systems are used for pressing and forming, while vibrating systems use high-frequency vibrations to homogeneously compact raw materials.
3. Process flow:
The production of concrete blocks involves multiple steps, from raw material metering, batching, mixing, conveying, forming to palletizing and curing. Each step needs to be precisely controlled to guarantee product quality. For example, in the mixing stage, it is necessary to mix cement, sand and other raw materials in proportion, and add an appropriate amount of water for thorough mixing.
4. Technical parameters:
The technical parameters of the concrete block making machine include vibration frequency, weight of the whole machine, vibration acceleration, etc. These parameters directly affect the quality and production efficiency of blocks. For example, the higher the vibration frequency, the better the molding effect, but at the same time, care should be taken to avoid damage to the equipment due to excessive vibration.
|
Specification of products(mm) |
Number of blocks per pallet |
Pieces/1 hour |
Pieces/8hours |
||
|
Block |
|
400×200×200 |
9 |
1,620 |
12,960 |
|
Hollow Brick |
|
240×115×90 |
20 |
4,800 |
38,400 |
|
Paving Brick |
|
225×112.5×60 |
25 |
6,000 |
48,000 |
|
Standard Brick |
|
240×115×53 |
55 |
13,200 |
105,600 |
|
Rectangular Paver |
|
200×100×60/80 |
36 |
8,640 |
69,120 |
|
Kerbstones |
|
200*300*600mm |
4 |
960 |
7,680 |
Fully Automatic Concrete Block Making Machine Technical specifications:
|
Dimension |
5900×2040×2900mm |
|
Pallet Size |
1380×760×25~45mm |
|
Vibration Frequency |
3800-4500 r/min |
|
Hydraulic Pressure |
25 mpa |
|
Vibration Force |
68 KN |
|
Cycle time |
15-20s |
|
Power |
63.45kW |
|
Weight |
11200KG |
Fully Automatic concrete block making machine price list
1. Equipment models and functions:
The price of concrete block making machines with different models and functions varies greatly. The more complete the functions and the higher the degree of automation, the higher the price.
2. Production capacity:
The greater the production capacity of the equipment, the higher the price is usually higher. For example, the production capacity of large hydraulic concrete block making machine can reach thousands of bricks per hour, and the price is relatively high.
3. Brand and quality:
Our high quality concrete block making machine price is relatively favorable, and the quality and after-sales service are more guaranteed.
Fully Automatic concrete block making machine services
1. Warranty Period
Warranty period: Usually a one-year warranty period is provided, and technical support and parts replacement are provided free of charge during the warranty period.
Warranty coverage: During the warranty period, the manufacturer will provide free repair services and replacement parts for failures caused by equipment quality problems.
2. Training services
Operator Training: Provide free operation training to ensure that your staff can operate the equipment proficiently, including equipment start-up, operation, shutdown and routine maintenance.
Maintenance Training: Provide equipment maintenance training, including regular inspection, lubrication, cleaning, and common troubleshooting, etc., to help customers extend the service life of equipment.
3. Technical Support
24-hour hotline: Provide a 24-hour after-sales service hotline to solve the problems encountered by customers in the process of use in a timely manner.
Remote diagnosis: Through the remote diagnosis system, technicians can remotely monitor the operating status of equipment and find and solve problems in time.
On-site service: For complex faults, technicians will go to the site in time for maintenance and debugging to ensure that the equipment can resume operation as soon as possible.
4. Spare parts supply
Spare parts supply: Provide sufficient spare parts supply to ensure that customers can replace damaged parts in a timely manner and reduce equipment downtime.
Preferential price: The price of spare parts is reasonable, which ensures that customers will not increase the cost due to the high price of spare parts when maintaining the equipment.
5. Regular return visits
Regular return visits: Regular return visits to customers to understand the operation of the equipment, and find and solve potential problems in a timely manner.
Customer feedback: Collect customer feedback and continuously improve the quality of products and services.
6. Software Upgrades
Software Update: Provide regular updates of equipment control software to ensure that the equipment runs more stably and efficiently.
Technical support: Provide technical support for software upgrades to help customers complete software updates smoothly.
7. Equipment Upgrades
Technology upgrade: According to customer needs, provide technical upgrade services for equipment to improve the performance and function of equipment.
Customized service: Provide customized service, according to the special needs of customers, customized transformation of equipment.
