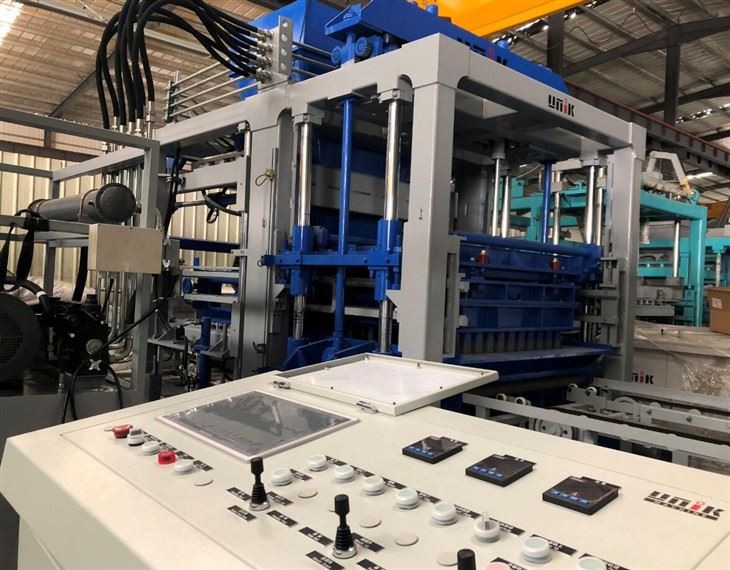

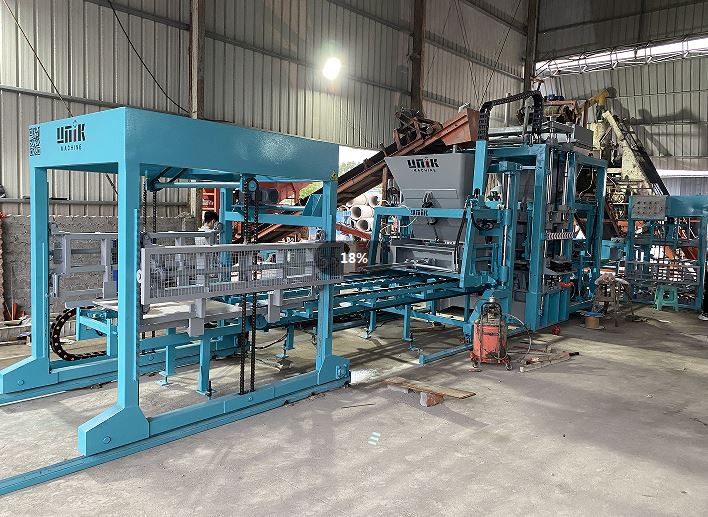

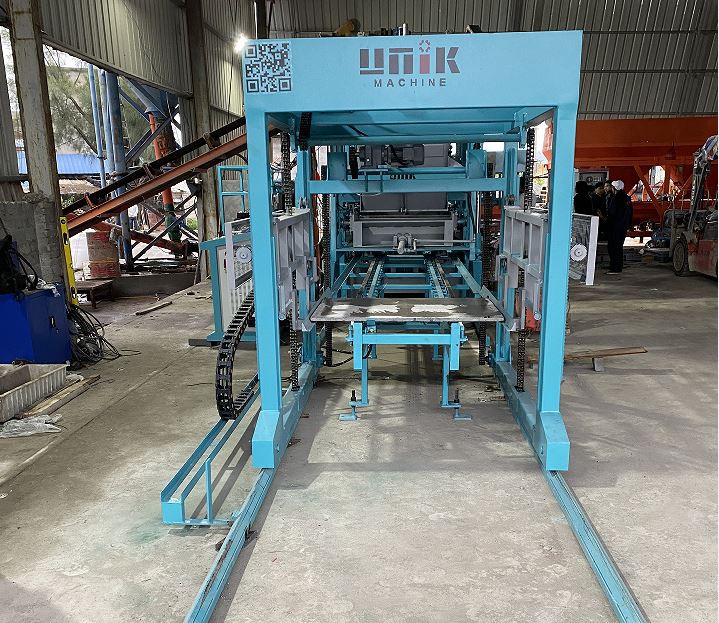

ELECTRIC BLOCK MAKING MACHINE
Products Description
Electricity: A Driver and a Constraint
In the field of concrete block production, there are two main sources of power for equipment: hydraulic drive and electric drive. Hydraulic equipment delivers high force but consumes more energy and has a more complex system. Electric equipment offers fast response, precise control, and lower energy consumption, but places higher demands on power stability.
In areas with a stable power supply, electric block machines offer clear advantages-high efficiency, low operating costs, and simple maintenance. However, in regions with frequent power fluctuations, electric equipment faces significant challenges.
UNIK electric block machines are designed precisely to address this contradiction. They retain all the advantages of electric drive while overcoming the limitations of unstable power through technological innovation.
Technical specification:
|
Dimension |
5000×2450 ×2930mm |
|
Weight |
6T |
|
Pallet size |
880 ×680mm |
|
Power |
42.15 kW |
|
Vibration method |
Siemens motors |
|
Vibration Frequency |
3800-4500 r/min |
|
Cycle time |
15-20s |
|
Vibration Force |
50-70KN |
Main features
PLC Fully Automatic Control
Equipped with Siemens or Mitsubishi PLC and an industrial-grade touchscreen. The recipe management function can store over 50 sets of process parameters. When switching products, simply tap the touchscreen, and the equipment automatically adjusts all parameters-no manual intervention required.
|
Products |
Pic |
Size |
Capacity |
Cycle time |
Daily capacity |
|
Hollow block |
|
390 ×190 ×190mm |
5pcs/pallet |
15-20s |
7200pcs |
|
Hollow brick |
|
240 ×115 ×90mm |
16pcs/pallet |
15-20s |
23040pcs |
|
Brick |
|
240 ×115 ×53mm |
34pcs/pallet |
15-20s |
48960pcs |
|
Paver |
|
200 ×100 ×60mm |
20pcs/pallet |
15-20s |
28800 pcs |
Our factory.
Manufacturing
Delivery
workshop
Process
Ideal for customers who:
Are in areas with relatively stable power supply, or have the ability to use a generator
Focus on operating costs and want to reduce electricity expenses
Prioritize production efficiency and need fast response and precise control
Have requirements regarding equipment noise and prefer a quieter working environment
Plan to transition from hydraulic to electric equipment to lower maintenance costs
