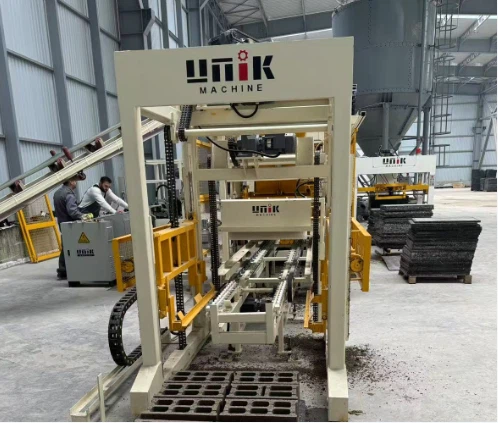

Concrete Hollow Blocks Making Machine North Macedonia
|
Dimension |
3100 ×1680×2460mm |
|
Weight |
7400KG |
|
Pallet size |
850×680×20~35mm |
|
Power |
41.53 kW |
|
Vibration method |
Servo motors |
|
Vibration Frequency |
3800-5500 r/min |
|
Cycle time |
15-20s |
|
Vibration Force |
75KN |
Concrete Hollow Blocks Making Machine North Macedonia products parameters
1. Increased production efficiency:
The completion of the production line will significantly increase the production capacity of concrete blocks in North Macedonia and meet the demand for high-quality blocks in the local construction industry.
2. Promoting Technological Innovation:
UNIK Machinery's advanced technology and equipment will bring new technical standards to the construction industry in North Macedonia and promote technological innovation and upgrading of local enterprises.
3. Promoting economic development:
The implementation of the project will lead to the development of related industrial chains, create employment opportunities, and promote economic growth in North Macedonia.
|
Specification of products(mm) |
Number of blocks per pallet |
Pieces/1 hour |
Pieces/8hours |
||
|
Block |
|
400×200×200 |
6 |
1080 |
8640 |
|
Hollow Brick |
|
240×115×90 |
20 |
3600 |
28,800 |
|
Paving Brick |
|
225×112.5×60 |
15 |
3600 |
28,800 |
|
Standard Brick |
|
240×115×53 |
40 |
7200 |
57,600 |
|
Curbstone |
|
200*300*600 |
4 |
480 |
3,840 |
Concrete Hollow Blocks Making Machine Production line characteristics
Characteristics of the production line:
The production line adopts advanced servo vibration system, forced material distribution system, frequency conversion control technology, fully automatic control system, efficient hydraulic system and remote monitoring and management functions. The application of these technologies ensures high efficiency, energy efficiency and reliability of the production line.
Structure and materials:
The main structure of the production line is made of high-strength steel to ensure the robustness and reliability of the equipment.
Intelligent control system:
The production line is equipped with a touch screen panel to provide an intuitive operation experience and support human-computer interaction and visual operation.
Concrete Hollow Blocks Making Machine Production process
Preparation and proportioning of raw materials
According to the type of blocks produced, various raw materials (such as loess, sand, cement, water, etc.) are scientifically proportioned according to a certain proportion. These materials may include shale, gangue, fly ash, slag, etc. The prepared raw materials are fed into the blender, and the appropriate amount of water is added for thorough stirring to form a homogeneous mixture.
Forming
Placing mechanism: It is used to feed the material in the silo into the forming mold.
Frame: Supporting the various parts of the equipment and withstanding the pressing forces of the block molding.
Indenter: Pressurizes the forming of the equipment and at the same time demolds it in the middle of work.
Lifting table: the role of dragging blocks and vibration, used for the forming of blocks when rising, and dragging out the formed blocks when descending.
Curing and demoulding
The formed blocks need to go through a certain amount of pressure treatment and curing time before they can be demolded. The concrete hollow block making machines adopt the burning-free process, which directly carries out autoclaved curing or natural curing.
Plate feeding mechanism: the transmission of the supporting plate, equipped with a scraper and an oiling mechanism.
block Conveyor: Feed the forming blocks on the workbench.
Finished product handling and storage
The finished blocks are removed and cooled as necessary, and then stored in a cool and dry place waiting to leave the factory. The entire production process involves multiple steps, from the preparation of raw materials to the storage of the final product, each step needs to be precisely controlled to ensure product quality. In addition, modern brick machines also be equipped with automatic control systems to improve production efficiency and reduce manual intervention.
how about Concrete Hollow Blocks Making Machine North Macedonia service
1. Professional Team
This project by UNIK Machinery not only provides North Macedonia with advanced brick making equipment, but also demonstrates the company's competitiveness in the international market. In the future, UNIK Machinery will continue to expand its global market and provide high-quality concrete block production equipment to more countries and regions.
Through the successful implementation of this project, UNIK Machinery has further proved its professional competence and technical strength in the field of concrete block making machines, laying a solid foundation for the company's further development in the North Macedonian and even the entire European market.
2. Custom Service
Our Service does not end when the new plant starts production. we provide excellent spare parts service as well as support and advice for your operating staff. Help customers effectively reduce the operating costs of the factory, achieve energy conservation goals, and improve competition.
