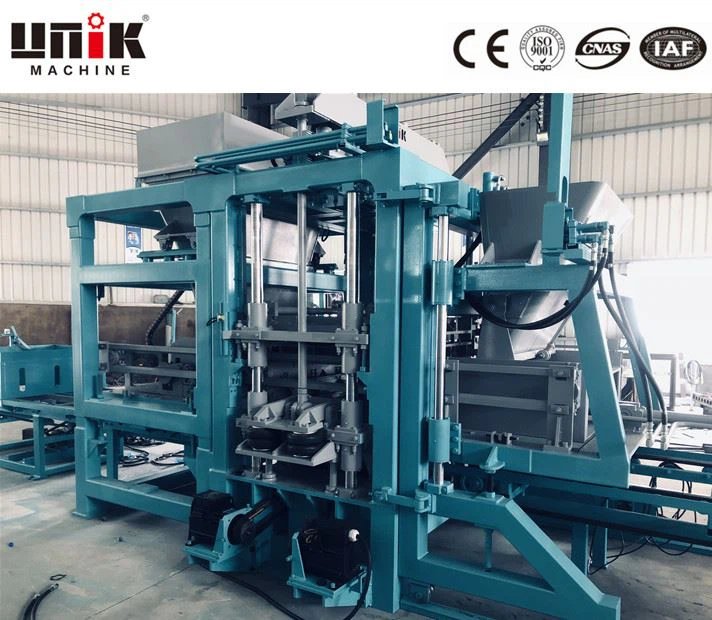

Concrete Hollow Blocks Machine
|
Specification of products(mm) |
Number of blocks per pallet |
Pieces/1 hour |
Pieces/8hours |
||
|
Block |
|
400×200×200 |
6 |
1080 |
8640 |
|
Hollow Brick |
|
240×115×90 |
20 |
3600 |
28,800 |
|
Paving Brick |
|
225×112.5×60 |
15 |
3600 |
28,800 |
|
Standard Brick |
|
240×115×53 |
40 |
7200 |
57,600 |
|
Curbstone |
|
200*300*600 |
4 |
480 |
3,840 |
Concrete hollow blocks machine is formed by injecting the concrete mixture into the mold and compacting it with vibration and hydraulic pressure. The molds are in a variety of shapes, and hollow bricks of different specifications and sizes can be produced according to needs. Common equipment includes hydraulic, semi-automatic shaker and fully automatic models, with hydraulic equipment being preferred for its stability and efficiency.
what is a Concrete Hollow Blocks Machine
|
Dimension |
3100 ×1680×2460mm |
|
Weight |
7400KG |
|
Pallet size |
850×680×20~35mm |
|
Power |
41.53 kW |
|
Vibration method |
Servo motors |
|
Vibration Frequency |
3800-5500 r/min |
|
Cycle time |
15-20s |
|
Vibration Force |
75KN |
1. Efficient automation:
The fully automatic equipment adopts PLC control system and touch screen operation interface to realize the whole process automation from raw material batching to finished brick palletizing.
2. Versatility:
By changing the mold, the equipment can produce blocks of various specifications and shapes, such as hollow bricks, solid bricks, interlocking bricks, paving bricks, etc.
3. Environmental protection and energy saving:
Support the use of industrial waste residue (such as fly ash, slag, etc.) as raw materials to reduce the exploitation of natural resources.
4. High precision and high quality:
Advanced vibration technology and hydraulic pressure molding are used to ensure high density and high quality of the blocks.
Concrete Hollow Blocks Machine manufacturers
1. Intelligent upgrade:
With the development of artificial intelligence and Internet of Things technology, equipment will become more intelligent to achieve remote monitoring and fault prediction.
2. Environmentally friendly and sustainable:
In the future, equipment will use more recycled materials and industrial waste residue to reduce carbon emissions.
3. Versatility & Customization:
The equipment will support a wider variety of mold changes to meet the needs of different construction projects.
Concrete Hollow Blocks Machine for sale
15 Years Experience
Our employees have at least 15 years of experience working with concrete blocks making machine for sale manufacturers in China. Some of them work as sales engineers or after sales technicians. They are all experts in concrete hollow blocks making machine manufacturing and operation.
Creative Design
The concrete hollow blocks making machine adopts the shock-absorbing arm design to achieve flexible propulsion and forced synchronization, avoid the rigid impact on the whole machine, and thus prolong the service life of the concrete hollow blocks making machine.
Professional Standards
The concrete hollow blocks making machine realizes a fully automatic production line from raw material feeding, mixing, molding to feeding and stacking, which improves production efficiency and consistency.
Best Materials
The concrete hollow blocks making machine can use a variety of raw materials such as sand, stone powder, brown soil, coal gangue, etc., and is suitable for the production of high-strength environmental protection blocks, interlocking blocks, parking lot grass planting blocks, etc.
widely used Concrete Hollow Blocks Machine
large automated production line
an automated production line with high-scoring design, strong workmanship, hardcore configuration.
Wide Application Of Technology
A senior manufacturing enterprise with professional design, R&D and manufacturing teams.
standardized production
accurately and consistently deliver high-quality hollow blocks while reducing labor costs and minimizing material waste.
High-Quality Customized Services
Through the cloud service platform, Unik after-sale engineers and user detection and control on-site personnel can directly maintain user equipment through remote control.
order management
Collect equipment data and customer usage habit data to establish customer big data; And feedback to customers for use.
Responsibility
Efficient and precise processing and testing equipment. Ensure that the quality and performance of the block making machine meet the needs of customers.
best Concrete Hollow Blocks Machine services
Pre-sale service
Assist with site planning, technical problem solving and configuration assistance;
Help to formulate a suitable machine and equipment purchase plan for customers, and give a layout design plan according to the site.
In-sale service
Assign senior engineers to on-site installation and commissioning;
On-site training of operation techniques for customer staff;
According to the specific situation, recommend relevant standardized and personalized product molds or accessories for customers.
After-sale service
Frequent customer return visits. The company has developed a customer return visit system, carefully listens to each customer's suggestions and opinions, and understands the operation of each equipment through return visits. Keep every device in tip top condition.
