Concrete Hollow Block Making Machine Factory
|
Dimension |
3100×1680×2460mm |
|
Pallet Size |
850×680×20-35mm |
|
Vibration Frequency |
3800-5500 r/min |
|
Hydraulic Pressure |
25 mpa |
|
Vibration Force |
75 KN |
|
Cycle time |
15-20s |
|
Power |
41.53kW |
|
Weight |
7400KG |
Concrete hollow block making machine factory
UNIK Machinery concrete hollow block making machine factory is a research and development, production, sales as one of the concrete hollow block making machine professional manufacturers, has a strong R&D strength of the excellent team, our production of concrete block making machine after more than 15 years of continuous improvement and perfection, product specifications, reliable performance, excellent quality, thoughtful and timely service, widely meet the needs of different users, and has been fully affirmed by customers at home and abroad, export orders have increased steadily year by year, domestic sales increased significantly. The company continues to introduce advanced management models such as lean management, intelligent manufacturing and learning organization.
How to use concrete hollow block making machine produce different blocks
1. Raw material preparation:
According to the type and specification of blocks, prepare corresponding raw materials, such as cement, stone powder, fly ash, slag, slag, crushed stone, sand, etc.
2. Adjust machine settings:
According to the type of blocks to be produced, adjust the settings of the machine, including vibration frequency, pressure and other parameters to adapt to the production requirements of different blocks.
3. Changing the mold:
By changing different molds, the concrete hollow block making machine can produce blocks of many sizes and shapes, including hollow blocks, solid bricks, rectangular paving bricks, etc.
|
Product size(mm) |
Pcs./Pallet |
Pcs./Hour |
|
390x190x190mm |
6 |
1080 |
|
240x115x90mm |
15 |
3600 |
|
200x100x60mm |
21 |
3024 |
|
240x115x53mm |
30 |
7200 |
Technical features of concrete hollow block making machine
1. high special steel and advance heat treatment, leading to a long lifespan.

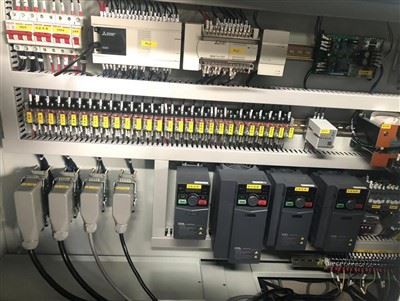

2. Omron/Siemens PLC control system, WElNVlEW touch screen and Schneider electric parts ensure stable and reliable performance.

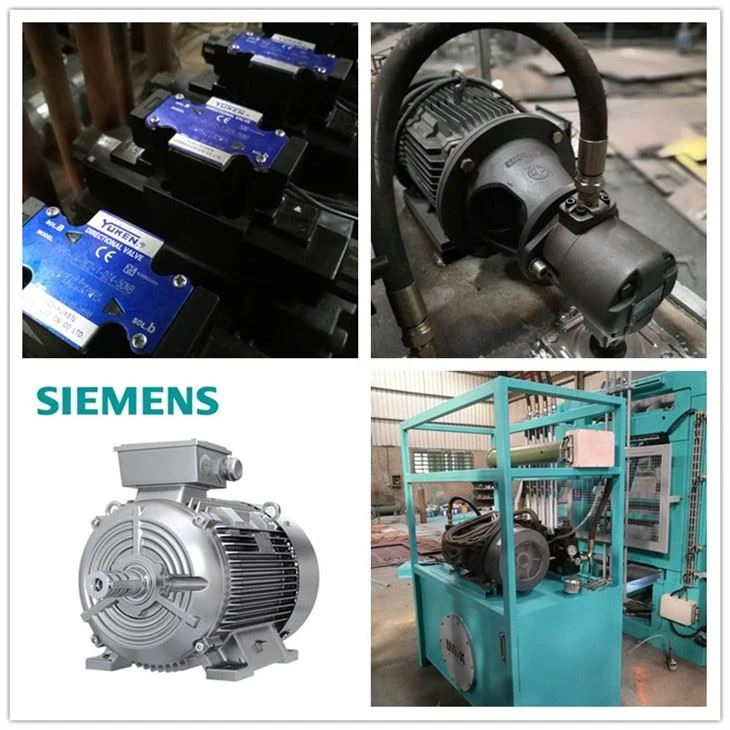

3. Uses "YUKEN" proportional and directional valves.
4. Utlizes Siemens motor to ensure a extend type high efficient vibrotechnique.
5. Compulsory feeding system is designed by multi-shaft at 360 degree and compulsory feeding.
6. Sensor and limited switch are used international well-known brand PEPPERL+FUCHS and Autonics.
7. Helical bevel gear reducer can provide smooth transmission and high torque output.
Advantages of hollow block making machine
1. Automated Operations:
Many modern concrete hollow block making machines adopt PLC automatic control system to achieve automatic operation and improve production efficiency and product quality.
2. Vibration molding:
Using the vibration system of the hollow block making machine, the concrete is quickly formed in the mold to ensure the compactness and uniformity of the blocks.
3. Demoulding and finished product output:
After the blocks are formed, they are automatically demoulded by a manipulator and the finished blocks are transported to the finished product area.
Why choose our hollow block making machine
UNIK Machinery company has passed the ISO9001:2000 quality management system certification, and the products are manufactured according to international standards, and have passed the "CE" certification. The company insists on meeting the needs of customers with high-quality products, perfect lifelong service and pragmatic prices. Through the innovative integration of market management and resources, we will build an ideal product and market network system for customers. At the same time, on the basis of the introduction of international frequency conversion technology, innovative research and development, the formation of its own core technology.
