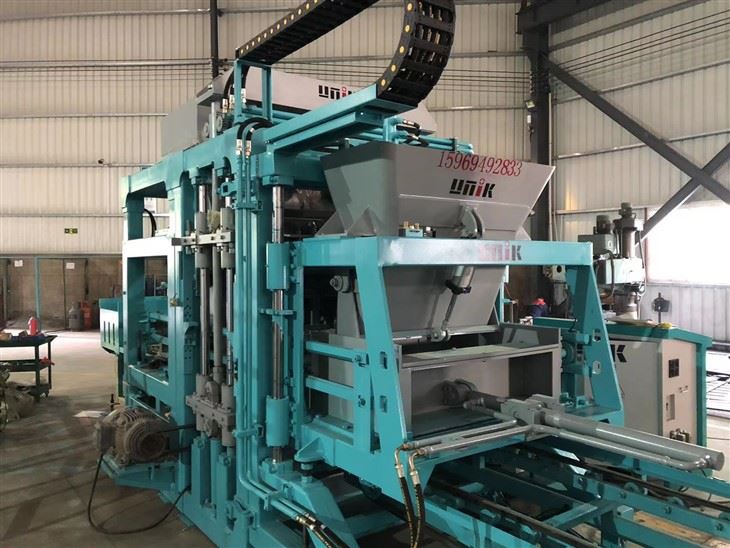

BLOCK MAKING MACHINES FOR SALE
Products Description
UNIK Machinery was founded in 2008 and is headquartered in Quanzhou, Fujian, China - a core industrial zone for global concrete machinery.As a high-tech enterprise specializing in the R&D, manufacturing and sales of block molding machines and concrete molds, the company offers a full range of ecological block automation equipment, concrete molds and complete production line solutions.
Technical specification:
|
Dimension |
5000×2450 ×2930mm |
|
Weight |
6T |
|
Pallet size |
880 ×680mm |
|
Power |
42.15 kW |
|
Vibration method |
Siemens motors |
|
Vibration Frequency |
3800-4500 r/min |
|
Cycle time |
15-20s |
|
Vibration Force |
50-70KN |
Main features
Strong Raw Material Adaptability & Multifunctional Use
Raw materials vary greatly in different regions - river sand is round and easy to shape, machine-made sand has sharp edges and is difficult to compact, and stone powder is soft and fine with high mud content. UNIK's vibration system adopts frequency conversion control, with the vibration frequency adjustable between 45 and 70 Hz and the excitation force adjustable between 0 and 80 kN. Operators can set the optimal parameters according to the characteristics of raw materials without replacing equipment. Cheap raw materials such as fly ash, coal cinder, and construction waste recycled aggregates can also be used to produce qualified blocks.
Equipped with a variable frequency vibration system, the vibration frequency is adjustable from 45–70 Hz and the excitation force is adjustable from 0–80 kN, adapting to various raw materials such as river sand, machine-made sand, stone powder, fly ash, recycled aggregates, cinder, etc. The quick mold change system allows a single person to complete mold replacement within 15 minutes, enabling the production of different products including hollow blocks, solid bricks, paving bricks, curbstones, interlocking blocks, etc.
|
Products |
Pic |
Size |
Capacity |
Cycle time |
Daily capacity |
|
Hollow block |
|
390 ×190 ×190mm |
5pcs/pallet |
15-20s |
7200pcs |
|
Hollow brick |
|
240 ×115 ×90mm |
16pcs/pallet |
15-20s |
23040pcs |
|
Brick |
|
240 ×115 ×53mm |
34pcs/pallet |
15-20s |
48960pcs |
|
Paver |
|
200 ×100 ×60mm |
20pcs/pallet |
15-20s |
28800 pcs |
Our factory.
Manufacturing
Delivery
workshop
Process
Next Step
If you are considering purchasing a block making machine, please feel free to tell us your requirements (product type, daily output target, raw material conditions, power supply conditions, service life). We will provide you with a straightforward configuration suggestion and quotation with no tricks.
UNIK Block Making Machine - Helping You Make a Rational Investment Decision
