Products Description
Hollow block making machine is a unique, innovative, and cost-effective method of building structures and retaining walls in south africa. This machine is made up of a concrete compression unit and an electric motor, which exerts pressure on the concrete while simultaneously pressing it into different molds to create various shapes. This machine is well-suited for a variety of construction projects, such as houses, retaining walls, low-cost housing, boundary walls, and a host of other impressive structures. The block-making process uses mechanical hydraulics for vibration, compression, and forming and is extremely energy efficient. Hydraform blocks are stronger than traditional concrete blocks, making them especially well-suited for use in difficult environments.
1
The hydraulic motor is from Siemens, and the hydraulic valves are all made in Taiwan. It uses dual high-dynamic proportional valves and constant power pumps to automatically adjust the oil flow and pressure, and has the characteristics of high stability, high efficiency and energy saving.
2

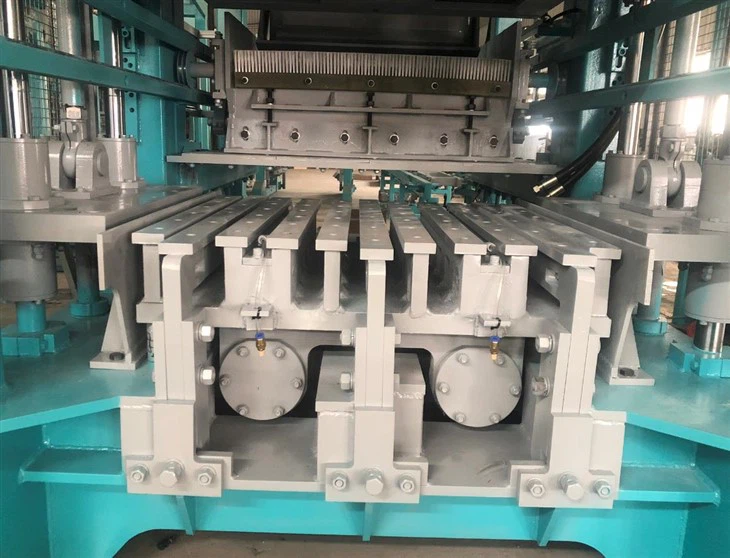

Vibration system: the vibration table adopts German technology, which consists of a dynamic table and a static table, which can greatly improve the vibration efficiency. It can increase the compaction degree and ensure the high quality of concrete blocks. It is also easy to maintain and clean.
3
There are airbags on both sides of the machine. After the mold is pushed in, the pressure head airbag is automatically inflated and tightened. Finally, the mold frame airbag is inflated and the mold frame is automatically clamped, which can save a lot of time for mold replacement, reduce vibration and noise, and improve production efficiency.
4
The machine is controlled via a 16" touchscreen. This innovative technology with self-explanatory and clearly structured menu navigation helps your operators to familiarize themselves with the machine in the shortest possible time and to work efficiently right from the start.
Capacity
Hollow block-making machines are high-capacity, versatile, and automated, offering a cost-effective solution for the mass production of various types of concrete blocks. Their advanced features ensure high-quality output, operational efficiency, and durability, making them an essential asset in the construction industry.Highly automated equipment can reduce manual operations, improve the consistency and efficiency of the production process, and thus significantly increase output
|
Specification of products(mm) |
Number of blocks per pallet |
Pieces/1 hour |
Pieces/8hours |
||
|
Block |
|
400×200×200 |
8 |
1440 |
11520 |
|
Hollow Brick |
|
240×115×90 |
25 |
6,000 |
48,000 |
|
Paving Brick |
|
225×112.5×60 |
25 |
6,000 |
48,000 |
|
Standard Brick |
|
240×115×53 |
55 |
13,200 |
105,600 |
|
Curbstone |
|
200*300*600 |
4 |
720 |
3,840 |
Technical specifications
|
Dimension |
3100 ×1930×3700mm |
|
Weight |
11.5T |
|
Pallet size |
1100×740mm |
|
Power |
49.03 kW |
|
Vibration method |
Servo motors |
|
Vibration Frequency |
3800-4500 r/min |
|
Cycle time |
15-20s |
|
Vibration Force |
75KN |
Main features:
Our factory
Manufacturing
Delivery
workshop
Process
Unik offers several services throughout the life of a block-making machine. Multilingual engineers and technical experts in mechanical design/manufacturing and after-sales service serve our customers for 24*7 hours
Engineering and designing：
We design the block plant layout and provide the foundation drawing according to the customer's requirements. the drawing for the parts to be fabricated locally. Not only block machines, but we also could manufacture cubing system, finger cars, automatic elevators, operators, batching machines, mixers, and curing chambers. we will be here for your all project and requirements.
Accessory Outsource And Quality Control：
We will provide the block plant accessories, such as wheel loader, Fork clamp pallets, etc. Those suppliers have been investigated and approved due to their quality products and excellent service. Our company adheres to implementing ISO 9001 Quality Management System and ISO 14001 Environment Management System And we will implement the strictest quality control on every product they handle.
There are many possibilities to choose from, from simple production plants to fully automatic circuits supplying a wide range of markets. We can provide our customers with all types of solutions and automation equipment to minimize labor costs/labor. We continue to work hard and research to improve our equipment and provide solutions that are at the forefront of advancement and satisfy our customers in their respective markets' all needs.
