Concrete Solid Block Machine
Concrete solid block machine is a market development trend. As long as you have 1-2 types of fly ash, slag, coal gangue, slag, sand, stone powder, and construction waste in your local area, you can make bricks. The raw materials are cheaper in the local area and the strength of the bricks made exceeds the country. Standard, has good durability, corrosion resistance and stability.
Main features:
1. Adopt German frequency conversion technology, host frequency conversion control, reduce the motor starting current, realize the synchronous work of the vibration assembly, solve the motor inertia problem when parking, and save 20-30% of power.
2. Adopt German Siemens programmable controller (PLC) and Siemens touch screen control, easy to operate, low failure rate, permanent storage of formula data, real-time fault diagnosis and real-time alarm system.
3. The hydraulic control system adopts a highly dynamic proportional valve, which can automatically adjust the flow rate during the production process to improve stability and extend the service life of the cylinder.
4. Using 360-degree rotating forced cloth, fast speed, uniform distribution, suitable for various raw materials and various molds
5. The mold material is carbonitrided, wear-resistant and abrasion resistant, and extend the service life by more than 50% compared with the general quenched and tempered mold.

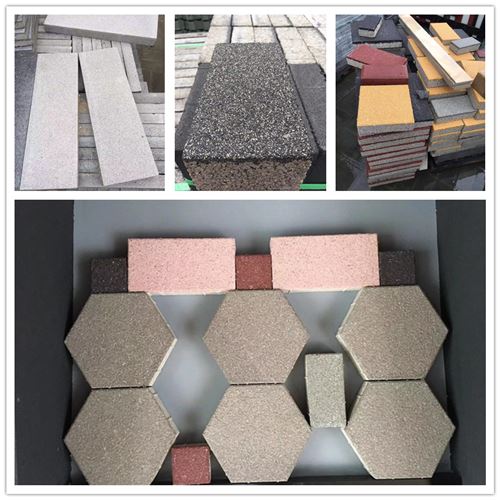

Uses: All kinds of external wall blocks, interior wall blocks, flower wall blocks, floor slabs, berm blocks, and blocks such as interlocking pavement blocks and curbs. The secondary fabric mechanism also produces colored pavers.
Raw materials: sand, stone and cement can be used to add a large amount of industrial waste such as fly ash, slag, steel slag, coal gangue, ceramsite and perlite.
|
Product size |
Picture |
Capacity |
|
400×200×200(mm) |
 |
6 pcs/pallet |
| 1080 pcs/hour | ||
|
225×112×60/80mm |
 |
15 pcs/pallet |
| 3600 pcs/hour | ||
|
200×100×60/80(mm) |
 |
21 pcs/pallet |
| 5040 pcs/hour | ||
|
447×298×80/100(mm) |
 |
2 pcs/pallet |
| 480 pcs/hour | ||
|
Pallet size |
850×680㎜ | |
|
Vibration type |
Frequency, amplitude | |
|
Excitation frequency |
0～65HZ | |
|
Power |
42.15 kW | |
Packaging & Shipping
when the brick making machine is ready to be shipped out, our company will package it very carefully. Also we promise there will be no damage when the brick making machine arrive at the port.
The block making machine is packed in PVC film to Waterproof and dustproof, the spare parts will be packed in wooden case,This way of packing can ensure the machines will not shift inside the case and guarantee its security in transportation.
We will deliver the orderded baking-free brick machine 20-25 days after receiving deposit.
