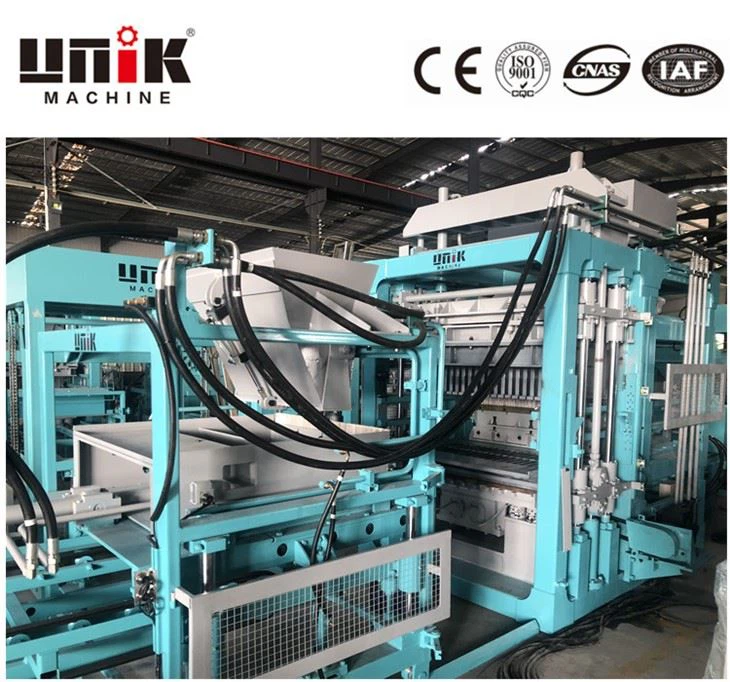

Concrete block making machine in india
In recent years, India's economic structure is gradually developing from agriculture, handicrafts, textiles, textiles to service industries, and high -tech industries. As the most important exporter of service industries such as global software, finance, India's high -tech development is rapid. The level of craftsmanship in the brick and tile industry has been criticized, making this huge Indian market move forward, and this has also left a lot of room for development for the concrete block making machine industry.The high -quality equipment produced by UNIK machinery perfectly fits the characteristics of the Indian infrastructure project with a short construction period, high production capacity, and high operating temperature, which has won the trust and respect of customers.
Our advantage
The mold material uses high manganese alloy steel. After welding and welding of laser cutting and precision mechanical processing, the overall surface carbon nitrogen penetration is used to solve the heating and annealing after welding, which greatly enhances the wear resistance of the mold.
"Special" welding and thermal treatment process to ensure the high strength and high toughness of the production equipment structure.the vibration frequency can be accurately adjusted, the range of adjustment of different raw materials and different intensity products is increased, the control of product strength is increased, and the service life of the mold is effectively extended.
In the control system, it is designed with security logic control and mutual lock protection circuits. It has mistaken operation prompts to prevent misunderstanding. The fault self -diagnosis function can also be equipped with remote control functions. There are multiple sets of formula data in the display, which can also automatically record daily output and cumulative output.
Unik's UNT series products can adapt to regenerative bricks of various types of construction garbage. The host is equipped with a dual -control rotating feeding system with a uniform feeder to ensure the minimum high and low difference.
Capacity sheet:
|
Specification of products(mm) |
Number of blocks per pallet |
Pieces/1 hour |
Pieces/8hours |
||
|
Block |
|
400×200×200 |
9 |
1,620 |
12,960 |
|
Hollow Brick |
|
240×115×90 |
20 |
4,800 |
38,400 |
|
Paving Brick |
|
225×112.5×60 |
25 |
6,000 |
48,000 |
|
Standard Brick |
|
240×115×53 |
55 |
13,200 |
105,600 |
|
Rectangular Paver |
|
200×100×60/80 |
36 |
8,640 |
69,120 |
|
Kerbstones |
|
200*300*600mm |
4 |
960 |
7,680 |
India's infrastructure construction will usher in more challenges, which also prompts the brick and tile industry to need faster self -transformation, moving towards the "era of intellectual manufacturing", and enhance its production benefits and production technology. UNIK will continue to provide professional, concentrated, and reliable smart block machine equipment and services to help India build a perfect infrastructure facilities faster, and further deepen the cooperation of BRICS.
Technical specifications
|
Dimension |
5900×2040×2900mm |
|
Pallet Size |
1380×760×25~45mm |
|
Vibration Frequency |
3800-4500 r/min |
|
Hydraulic Pressure |
25 mpa |
|
Vibration Force |
68 KN |
|
Cycle time |
15-20s |
|
Power |
63.45kW |
|
Weight |
11200KG |
Our factory
Manufacturing
Delivery
workshop
Process
Our company has passed the "ISO9001 Quality Management System" and "EU CE Certification",As Unik Machinery, we have focused all our products on providing unconditional customer satisfaction. We believe that continuous improvement and training of all employees is essential for continuous improvement of their products and systems. Our company aims to improve the product range in the direction of customer suggestions and demands by meeting the needs of our valued customers without sacrificing quality and on time del,very and production, with the service of the Unik Machinery, which is always aiming to increase the product quality and quality in the company.
Based on its own sales network, establish extended services for customers:
1. Assist in the formulation and analysis of customer marketing strategies;
2. Provide timely technical updates and system upgrades;
3. Share new industry information and resource sharing;
4. Provide industry application technical support, participate in and support customer technical innovation;
