Ready-mixed Concrete Mixing Plant

Ready-mixed concrete mixing plant The theoretical productivity of HZS120 concrete mixing plant is 120m3/h, also called two-party mixing station. The main machine is equipped with a JS2000 compulsory twin-shaft concrete mixer. The capacity of the mixer is 2000L, and the batching machine is...

Details

Ready-mixed concrete mixing plant

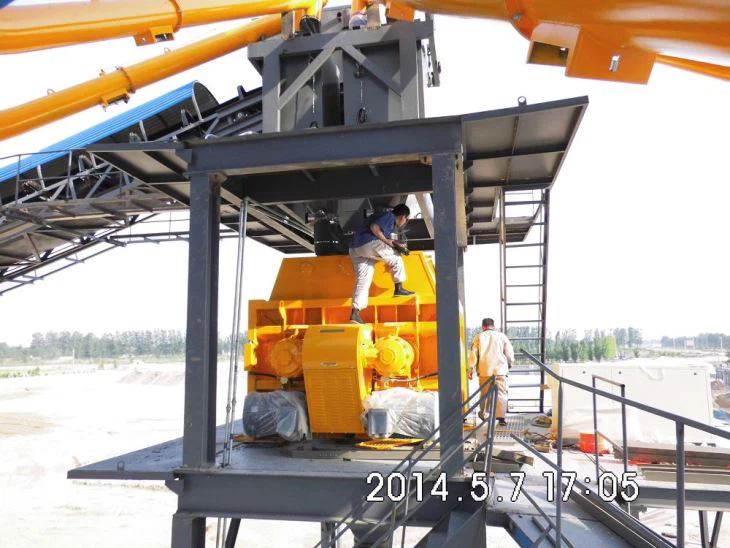

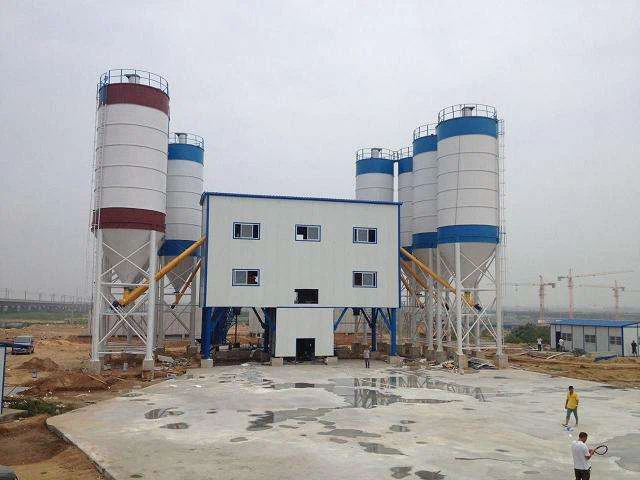

The theoretical productivity of HZS120 concrete mixing plant is 120m3/h, also called two-party mixing station. The main machine is equipped with a JS2000 compulsory twin-shaft concrete mixer. The capacity of the mixer is 2000L, and the batching machine is PLD3200. The entire equipment includes twin-shaft mixers, batching machines, cement silos and screw conveyors, conveyor belts, and computer control rooms. It can produce various kinds of concrete such as plastic and dry hard concrete. It has high production efficiency, short mixing time, and beautiful appearance. It is widely used in large and medium-sized building construction, roads, bridges, and prefabrication plants for the production of concrete products. It is ideal for the production of commodity concrete.


The aggregate is discharged from the aggregate silo unloading door into the aggregate hopper for measurement. After being metered, it is unloaded on a flat belt with a long rotation. A flat belt is sent to the inclined belt conveyor, and the inclined belt conveyor is transported to the upper part of the mixer. Wait for the hopper to wait for instructions, while cement and fly ash are conveyed by screw conveyors to their respective weighing hoppers for measurement. Water and admixtures are pumped by pumps and admixtures to their respective hoppers for measurement. After the measurement of various materials is finished, the control system issues commands to start feeding the mixers in sequence. After the mixing is completed, the discharge door of the mixer is opened, the concrete is unloaded into the mixing transport by the unloading hopper, and then the next working cycle is entered.


Main features:
1. Planetary gear reducer, small size, high efficiency, extremely reliable.
2. The liner and the blade are made of high-chromium wear-resistant cast iron with reasonable angle design, good stirring effect, high speed and long service life.
3. four-axis end equipped with automatic sealing oiling system.
4. The unloading door is controlled by a hydraulic oil pump. There are three stop points and manual opening, no noise.
5. overweight design, excellent shock absorption.


Technical specifications:

Model No

HZS120

Productivity

120m3/h

Mixer type

JS2000

Mixer power

2X37KW

Max diameter of aggregate

80mm

Mixing capacity

2m3

Feeding method

Lifting bucket

Batching station type

PLD3200

Aggregate measurement

6500Kg ±2%

Cement measurement

1800Kg ±1%

Water measurement

800Kg ±1%

Feed height

2.58m

Discharge height

4.1 m

Total power

127kW


If you want to build HZS120 Ready-mixed concrete mixing plant,please feel free to contact us at sales@unimachinery.com or +86-595-28085862. We are pleasure to provide free site planning, equipment installation, post-training and other services
