Concrete Ready Mix Plant

Concrete ready mix plant The HZS75 concrete ready mix plant is a medium-sized engineering mixing plant. The theoretical productivity is 75m3/h. The standard is equipped with lifting buckets and can be modified according to user needs. Our company has carefully prepared fully automatic concrete...

Details

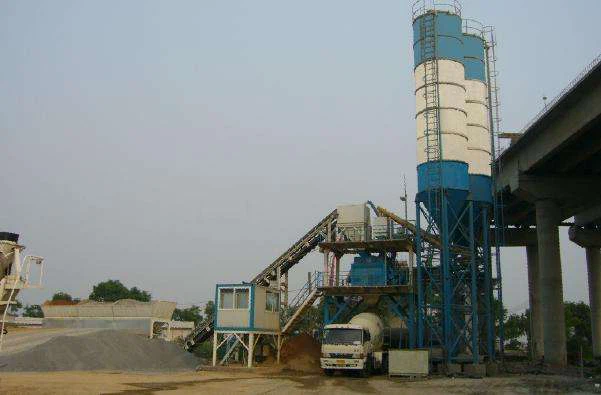

Concrete ready mix plant
The HZS75 concrete ready mix plant is a medium-sized engineering mixing plant. The theoretical productivity is 75m3/h. The standard is equipped with lifting buckets and can be modified according to user needs. Our company has carefully prepared fully automatic concrete mixing equipment consisting of batching, mixing, and electrical control systems for the HZS75 mixing station. It is equipped with separate manual control, automatic fall compensation, and gravel moisture content compensation,
It uses JS1500 twin horizontal shaft forced mixer with a theoretical productivity of 75 cubic meters per hour, a discharge height of 3.8 meters, and a storage hopper volume of 8 cubic meters*3 bins or 4 bins. The HZS75 medium-sized mixing plant has a small amount of investment capital, occupies less space, uses less equipment, and is easy to maintain. It can be equipped with independent control rooms for performance, making the equipment easy to operate and safe, and also capable of producing high quality when the batching machine is accurately measured.


Main features:
1. The required site is small, which can save up to one-half to two-thirds of the land area compared to the usual mixing station for oblique conveyors.
2. It can be installed on the steel girder type or fixed type steel girder type concrete mixing station. The main body of the agitation system is removed from the transport vehicle and installed for only a few hours, together with the installation of other supporting equipment such as control room and batching station. ,HZS75 concrete ready mix plant station can be prepared before production as long as two to four days.
3. The mixing platform, metering platform and lifting system platform fully ensure the need for verification, inspection and maintenance of equipment. When there is a need for external protective layers, there is still enough daily work space.
4. HZS75 concrete mixing station adopts the method of hoisting and lifting hoppers to feed, hopper and track unique design, can conveniently and efficiently hold and dump aggregate, and greatly reduce the site area occupied.


Technical specifications:

Model No

HZS75

Productivity

75m3/h

Mixer type

JS1500

Mixer power

2X30kW

Max diameter of aggregate

80mm

Mixing capacity

1.5m3

Feeding method

Lifting bucket

Batching station type

PLD2400

Aggregate measurement

3500Kg ±2%

Cement measurement

600Kg ±1%

Water measurement

400Kg ±1%

Feed height

2.58m

Discharge height

3.8 m

Total power

108 kW


If you want to build a small HZS75 concrete ready mix plant,please feel free to contact us at sales@unimachinery.com or +86-595-28085862. We are pleasure to provide free site planning, equipment installation, post-training and other services
