Concrete Ready Mix Batching Plant

Concrete ready mix batching plant HZS150 concrete ready mix batching plant is mainly composed of gravel batching system, material conveying system, metering system, stirring device, water supply system, additive supply system, gas circuit system and electronic control system. The process flow...

Details

Concrete ready mix batching plant

HZS150 concrete ready mix batching plant is mainly composed of gravel batching system, material conveying system, metering system, stirring device, water supply system, additive supply system, gas circuit system and electronic control system. The process flow is: The cement and fly ash enter the corresponding weighing hopper through the screw conveyor. The sand and stone in the sand hopper are weighed into the weighing hopper below it through the curved gate of the bottom of the warehouse and weighed, and passed through the horizontal belt conveyor. The inclined belt conveyor is input into the sand and stone storage hoppers; the water and additives are sent to the respective weighing hoppers through the electric pump. After the ingredients are finished, they are mixed into the mixer. The concrete after mixing is directly discharged into the concrete through the concrete hopper.

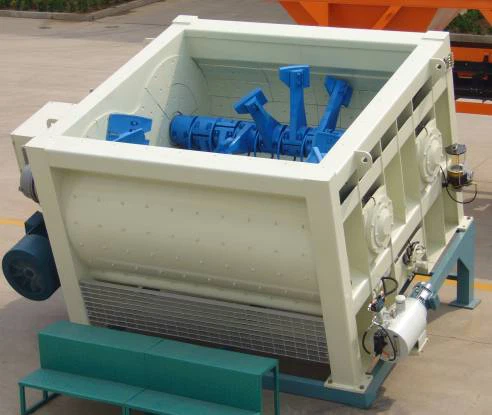

The main machine adopts the JS3000 series twin horizontal shaft forced mixer, which belongs to the large model mixer. It has good homogeneity of mixing concrete, short mixing time and high production efficiency. It adopts the latest design of electronic weighing, computer control, digital display and other controls. Technology, electronic weighing all have a buffer device and automatic compensation function, high measurement accuracy. The gravel feeding system adopts a large-width herringbone belt and is provided with a pedestrian walkway, which is an ideal choice for large-scale construction units to produce high-quality concrete.


Main features:
1. The mixer is free from artificial cleaning, non-stick stirring shaft, non-stick mixing tube cover;

2. The concrete hopper is designed with wear-resistant technology. It is durable, its service life is more than five times that of the previous one, and it does not damage the bucket.

3. The additive scale adopts anti-leakage technology to ensure the safety of concrete production;

4. The water scale adopts pressurized water unloading technology, and can easily add or reduce water to ensure the control of concrete slump;

5. Modular design, high degree of factory, quick installation and debugging;

6. The hopper realizes non-stick sand and rapid unloading technology, and the feeding process is completely closed, and there is no environmental pollution;

7. The control system is easy to operate, stable and reliable, with functions such as make-up scales, deduction scales, continuous production, and intelligent alarms.


Technical specifications:

Model No

HZS150

Productivity

150m3/h

Mixer type

JS3000

Mixer power

2X55KW

Max diameter of aggregate

80mm

Mixing capacity

3m3

Feeding method

Lifting bucket

Batching station type

PLD3200

Aggregate measurement

6500Kg ±2%

Cement measurement

1800Kg ±1%

Water measurement

800Kg ±1%

Feed height

2.58m

Discharge height

4.1 m

Total power

178kW


If you want to build HZS150 Concrete ready mix batching plant,please feel free to contact us at sales@unimachinery.com or +86-595-28085862. We are pleasure to provide free site planning, equipment installation, post-training and other services
