Automatic Concrete Aggregate Batching Machine Plants

Automatic Concrete Aggregate Batching Machine plants: Automatic Concrete Aggregate Batching Machine plants is mainly used for preparation of concrete mixture. Each set of batching machine can combine with mixer of different model to form mixing station for all kinds of architectural engineering...

Details


Automatic Concrete Aggregate Batching Machine plants:

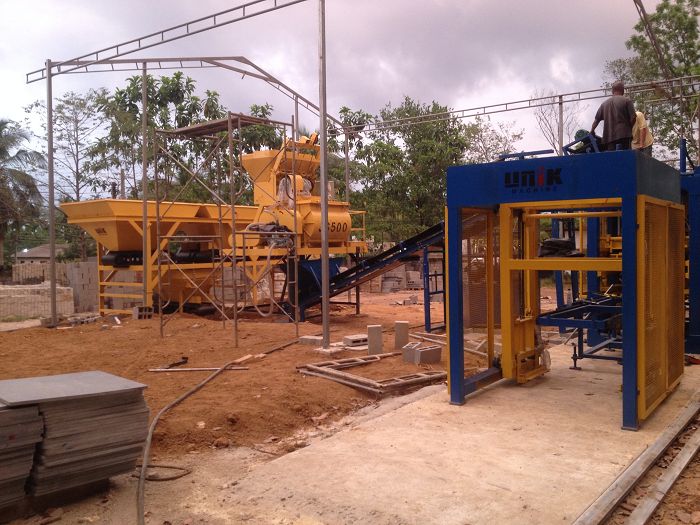

Automatic Concrete Aggregate Batching Machine plants is mainly used for preparation of concrete mixture. Each set of batching machine can combine with mixer of different model to form mixing station for all kinds of architectural engineering construction sites and concrete constructional element plants, effectively reducing labor intensity and raising output rate. The machine features simple structure, reliable application and convenient maintenance and operation. It can guarantee effectively the concrete quality because of accurate measurement.

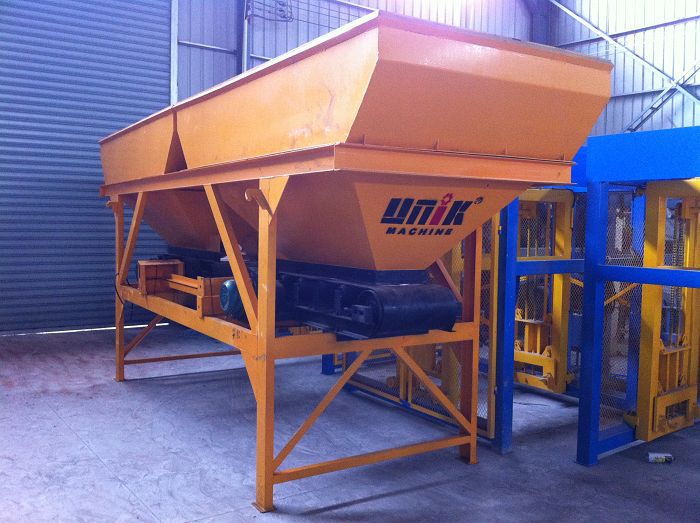

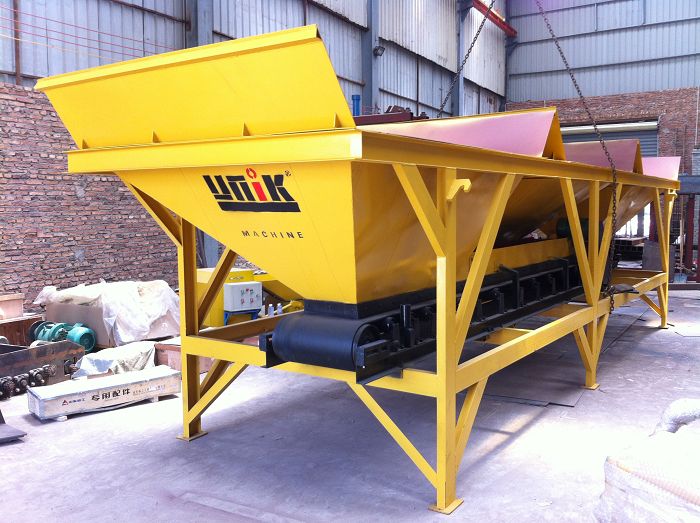

The machine mainly comprises storing system made up of three aggregate hoppers, measuring system and belt conveyor (discharging system). On bottom of aggregate hoppers, switch doors under cylinder control are installed to cast materials to the measuring hopper measurement according to the signal of batching controlling instrument. Vibrator is installed on gravel storage hopper to avoid gravel arch camber. Belt conveyor is driven by one to two motorized pulleys to realize one-way or two-way unloading, supplying materials to one or two mixers in the same time.


Techinical specification of  PL Series Concrete Batching Machines

PL800

PL1200

PL1600

Weighted capacity

0.8m3

1.2m3

1.6m3

Storage bucket capacity

2×2m3

3×4m3

3×7m3

Productivity

48m3/h

72m3/h

96m3/h

Batching precision

±2%

±2%

±2%

Max. Weight Capacity

1500 KG

2000 KG

4000KG

Batching category

2

3

3

Loading height

2300mm

2500m

2600mm

Dimension

5470×1820×2810mm

8650×2000×2900mm

9600×2300×3070mm

Power

6.6kW

10.6kW

14.4kW

Weight

2300 kg

4000 kg

4820 kg
