Concrete Batching Plant

Concrete Batching plant This type of batching machine was designed to be simple structure in a wide range of models, size and capabilities, can be easily and economically transported to overseas. the storage silo material is transferred by belt conveyor, On bottom of aggregate hoppers, switch...

Details

Concrete Batching plant

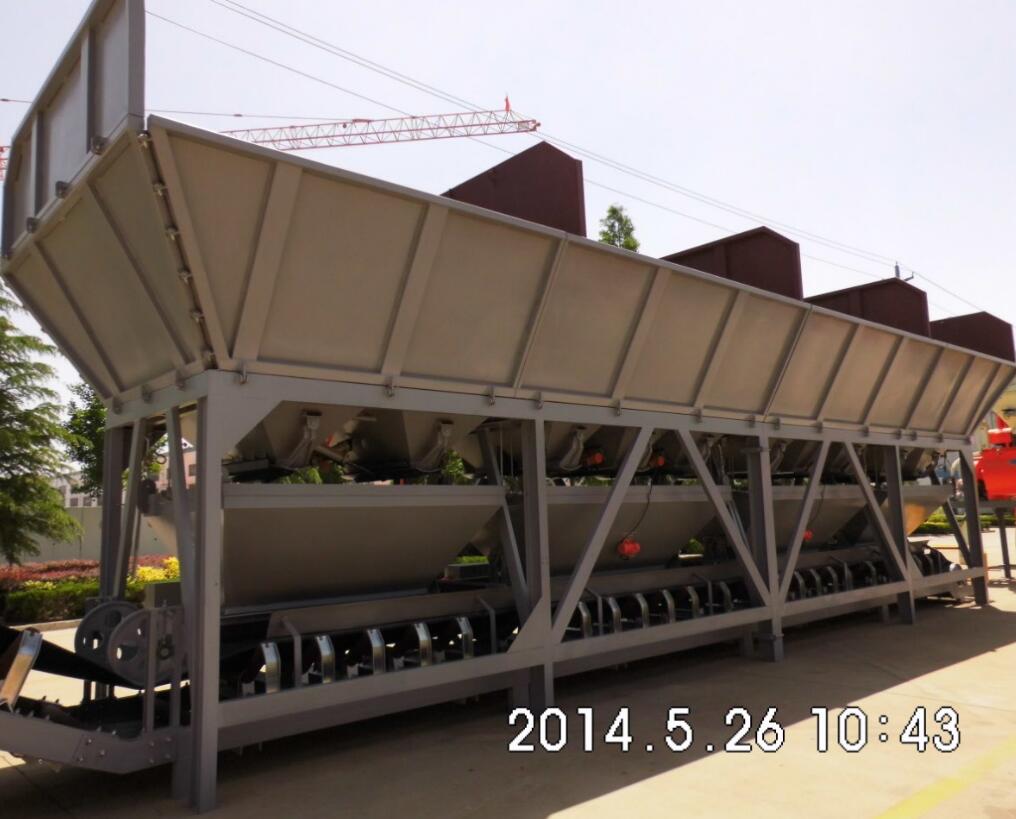

Concrete batching plant.jpg

This type of batching machine was designed to be simple structure in a wide range of models, size and capabilities, can be easily and economically transported to overseas. the storage silo material is transferred by belt conveyor, On bottom of aggregate hoppers, switch doors under cylinder control are installed to cast materials to the measuring hopper measurement according to the signal of batching controlling instrument. Vibrator is installed on gravel storage hopper to avoid gravel arch camber. Belt conveyor is driven by one to two motorized pulleys to realize one-way or two-way unloading, supplying materials to one or two mixers in the same time.




Main Features:


  1. This series of products adopt electronic weighing, digital display

  2. Accurate weighing, high batching accuracy, fast speed, strong controlling ability

  3. Widely used in all kinds of large and medium sized construction project and concrete mixing station

Batching plant.jpg



Technical Specification:


Model

UN4800

Storage   bucket capacity

4800   L

Productivity

180m3/h

Dimension

17800*3150*4750mm

Volumn   of single hopper

30m3

Discharging   height

3900mm

Weight

19500kg



The batching machine mainly consists of the storage silo, belt machine, bracket, cylinder, vibrator, sensor, control box and other components. Storage silo can store and measure four kinds of aggregate, using loader feeding.




Quality does not only come from years for reputation,also from the authorization of various authority badies at home,We are able to design and produce different machine according to your requirement.
