Lightweight Wall Panel Making Machine

UNIK Lightweight wall panel making machine is new hollow wall extruder of building materials production and processing equipment wallboard machinery. Light partition board extrusion molding machine is our plant through years of painstaking research and development, successfully developed a...

Details



UNIK Lightweight wall panel making machine is new hollow wall extruder of building materials production and processing equipment wallboard machinery. Light partition board extrusion molding machine is our plant through years of painstaking research and development, successfully developed a production of lightweight partition board molding machinery and equipment products. Its main features are: a reasonable technical route, stable operation, easy operation, qualified system board, low price. And it has automatic walking, continuous operation and a molding. Compared with the traditional production process, the production line adds the reinforcement up and down(φ1.6 ~ 5mm of low carbon steel wire) as a reinforcing material instead of alkali-resistant fiberglass, gelling agent to 32.5 # ordinary silicon cement instead of 525 # low-alkali sulphoaluminate cement, charging materials are the expansion of perlite, industrial slag, slag, fly ash, all kinds of ceramsite, slag, pumice, scrap heap, other recycling materials, etc., The total content of industrial ash up to 60% or more, can significantly and effectively improve the local environment.



Main features:

uses a wide range of materials.(Raw materials: ordinary cement, fly ash, slag, water slag, volcanic rocks, ceramsite, industrial waste and so on. It can allocate according to the raw materials of local deployment at any time, with large production, daily single-class production is 300 to 400 square meters. The use of natural curing and reinforcing material: low-carbon annealed wire) put required multi-process of hand-drawn or stand-mold board in one molding. The produced boards have low-cost and high-quality, is the ideal equipment of light partition board production line.





uses the original random tension embedding the upper and lower surface protection of steel or pre-pulling the upper and lower surface protection of steel reinforcement technology. The machine used cement and low carbon steel wire as reinforcing materials, and expanded perlite, ceramsite, slag, fly ash, water slag, river sand as raw materials. The required multi-program for hand-drawn or stand-mold board in one molding can be set in one, once formed by the wallboard machine, with smooth and strong boards.


Technical specification:



TYPES

HQJ9*60

HQJ12*60

HQJ18*60



SLAB WIDTH

595±2

595±2

595±2

SLAB THICKNESS

90±1

120±1

180±1

HOLES AND DIAMETER

7*Φ58

5*Φ85

4*Φ110

PRODUCT SPEEDS

≥1400

≥1400

≥1400

HOST TYPES

Y112M-4

Y112M-4

Y112M-4

VIBRATOR TYPES

ZW5A-0.8

ZW5A-0.8

ZW5A-1.1

OVERALL DIMENSIONL*B*H

2250*980*170

2250*980*730

2250*980*820

WEIGHT

1100

1300

2000

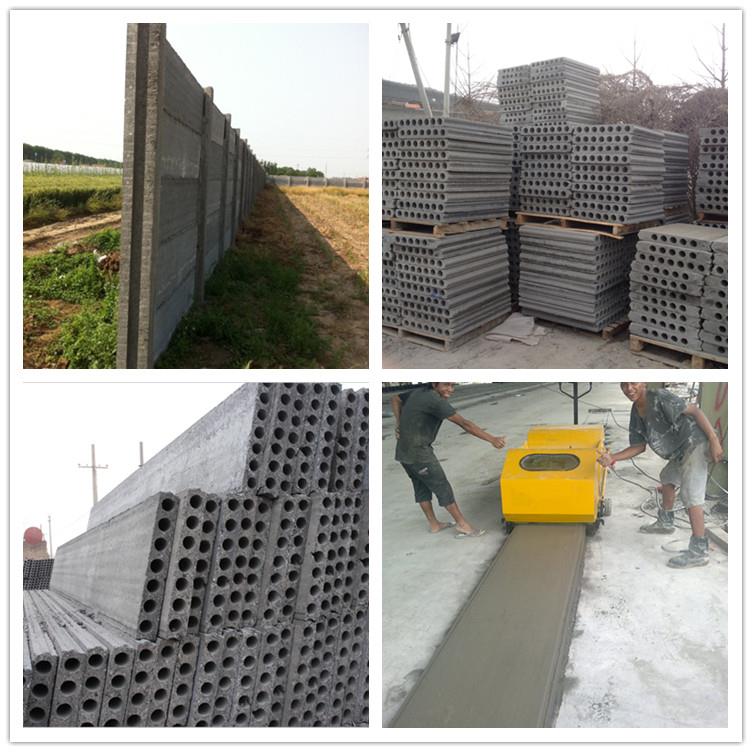

  wall panel production.jpg





 wall panel.jpg
