Semi Automatic Concrete Block Making Machine

Semi automatic concrete block making machine Semi automatic concrete block making machine uses German technology to◇ Improve production efficiency ◇ Make product more compact ◇ Save more energy, protect the environment, and save 30%.◇ also Can increase the color fabric cloth device, produce...

Details

Semi automatic concrete block making machine

Semi automatic concrete block making machine uses German technology to◇ Improve production efficiency ◇ Make product more compact ◇ Save more energy, protect the environment, and save 30%.◇ also Can increase the color fabric cloth device, produce various specifications of color pavement brick.



Standard equipment list:



1

Block Making Machine

2

Central Control Cab

3

Hydraulic Unit

4

Belt Conveyor

5

Pallet Conveyor

6

Block Conveyor

7

Automatic stacker

Semi automatic concrete block making machine

Main features:

◇ Imported high-performance hydraulic proportional system pure parts (more efficient, energy-saving)

◇ Imported intelligent PLC touch screen and electrical components (high automation, easier operation)

◇ Break-arc type quick-distribution device

◇ Extended high-efficiency vibration technology (products with shorter molding time and higher density)

◇ High temperature heat treatment special process (Mold is more wear resistant and stronger)

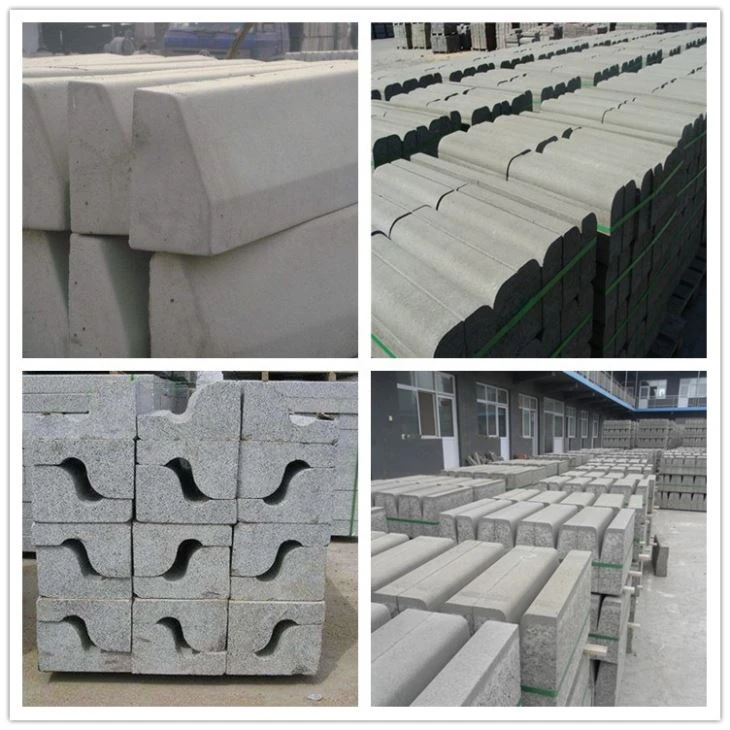

Raw material to make concrete products: crushed stone powder, sand, stone, cement, a large amount of fly ash, slag, steel slag, coal gangue, ceramsite, perlite and other industrial wastes.


Technical specification:

Model: QT5-15

Vibration frequency: 3800-4500 (Times/Sub)

Total weight: 8200 (kg)

Dimension: 3070×1930×2700(mm)

Installed capacity: 42.15(kw)

Molding cycle: 15-20(s)

Rated pressure: 25mpa

Exciting force : 68KN

Pallet specifications: 1100×600×20(mm)

Forming method: vibration and pressure forming

Stacker installed capacity: 3KW



Product size


Capacity

400×200×200(mm)


6 pcs/pallet

7200~1500 pcs/hour

240×115×53(mm)


40 pcs/pallet

8000~9000 pce/hour

200×100×60/80(mm)


18 pcs/pallet

4400~4800 pcs/hour

447×298×80/100(mm)


4 pcs/pallet

600~700 pcs/hour



Our Client.jpg

Before sales: Assist in planning construction site, cost analysis; design and manufacture equipments according to customer’s requirement

During sale: Equipments rigorous testing before shipment

After-sales: Dispatch the experienced engineers to install and training,  ensure the supply of spare parts, Optimizing machine and plant performance
