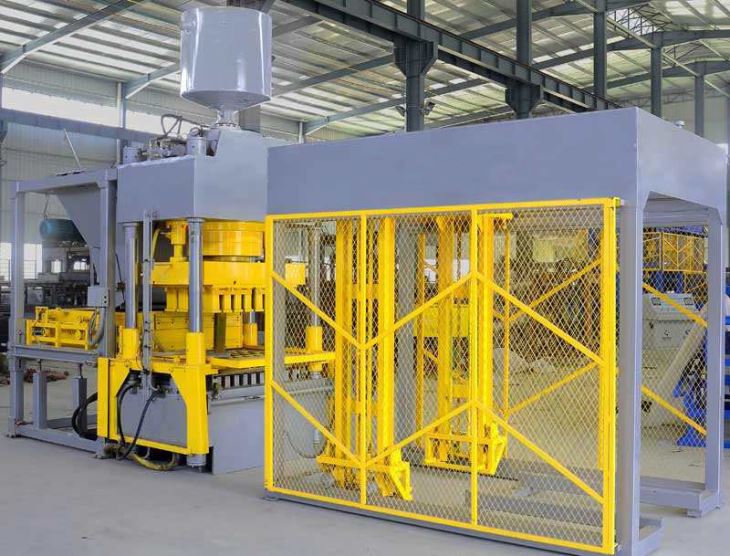

Hydraulic Press Paver Block Machine

The Hydraulic Press Paver Block Machine is a mechanical device that uses stone powder, fly ash, slag, slag, gravel, sand, water, etc as raw materials to produce concrete blocks by static pressure driving force. The equipment is a four-column press, which adopts hydraulic transmission. A new type...

Details

The Hydraulic Press Paver Block Machine is a mechanical device that uses stone powder, fly ash, slag, slag, gravel, sand, water, etc as raw materials to produce concrete blocks by static pressure driving force. The equipment is a four-column press, which adopts hydraulic transmission. A new type of machine with double-sided pressure, high energy saving, fast and low price.


Main features:

1. The Hydraulic Press Paver Block Machine adopts optimized hydraulic transmission, which has the characteristics of saving power, low noise and low failure rate.

2. Imported PLC automatic control system, the technology content is extremely high, and the labor intensity of workers is low, which greatly improves the output and quality of brick making.

3. The static pressing brick machine has a stable application force, high pressure and high degree of automation. Therefore, it has the characteristics of good product quality, high strength, high yield and standard size.




Technical Parameter

Model No.

UM800

Production capacity:

36 pcs/mold (Standard solid brick: 238x113x48mm)

24 pcs/mold (color paver: 200x100x60mm)

Forming period

Solid brick: 15-20s color brick: 20-25s

Max pressure

8000KN (800 T)

Main power

45 KW

Pump max pressure

31.5 Mpa

Machine size

7500x4000x4200 mm

Pallet size

950x850x20 mm

Machine weight

18000 kg (18 T)

Mixing power

4.5 KW

Vibration power

2×5.5 KW

Hydraulic system

YUKEN Valve

Cylinder diameter

Φ630mm inner

Control system

Siemens or Omron PLC

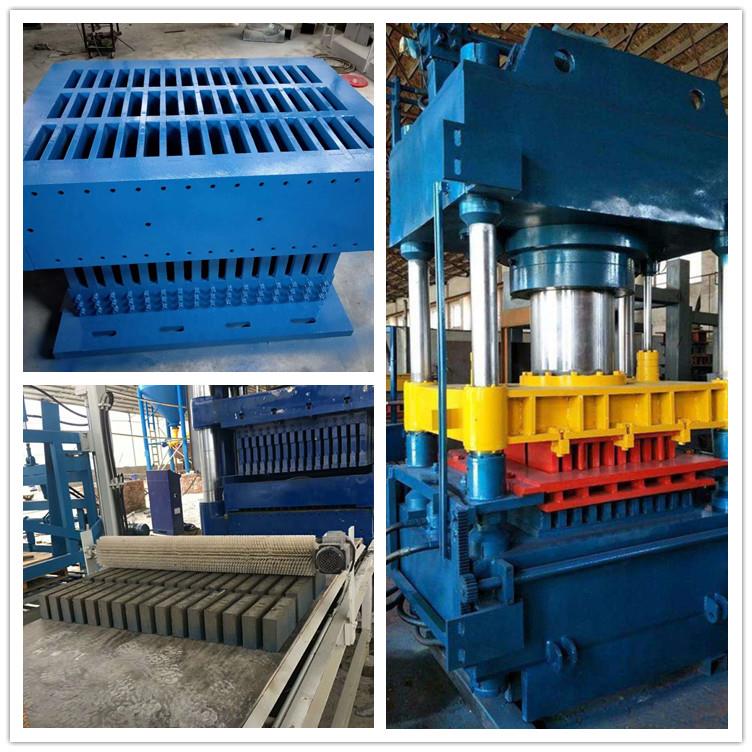

 e89896fd3ed6b25b1f46caf223832ce3_副本

Sample products

TIM截图20170830093856

Hot Tags: hydraulic press paver block machine, China, manufacturers, suppliers, factory, wholesale, customized, buy, price, quotation, price list, for sale, made in China
