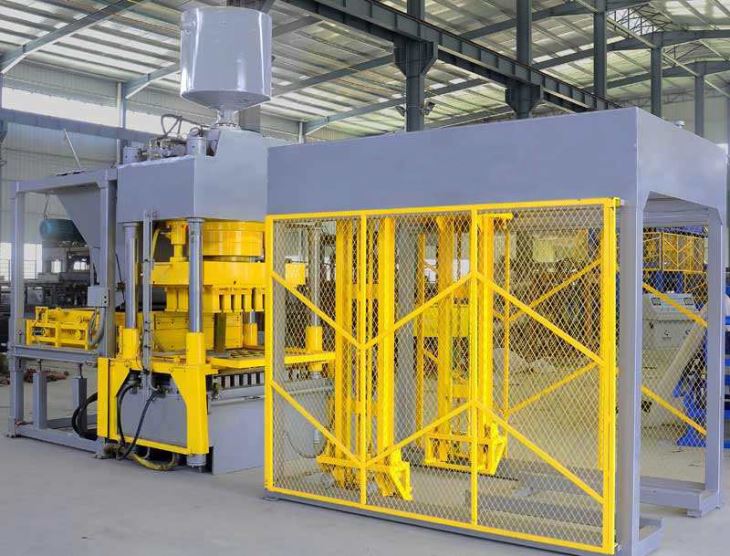

Hydraulic Press Brick Making Machine

Hydraulic press brick making machine uses stone powder, fly ash, slag, slag, gravel, sand, water, etc as raw materials to produce cement bricks by static pressure driving force. The function is more than just replacing different touch tools to produce a variety of products, such as standard...

Details

Hydraulic press brick making machine is more than just replacing different touch tools to produce a variety of products, such as standard bricks, blocks, pavers, etc to achieve a multi-purpose machine.

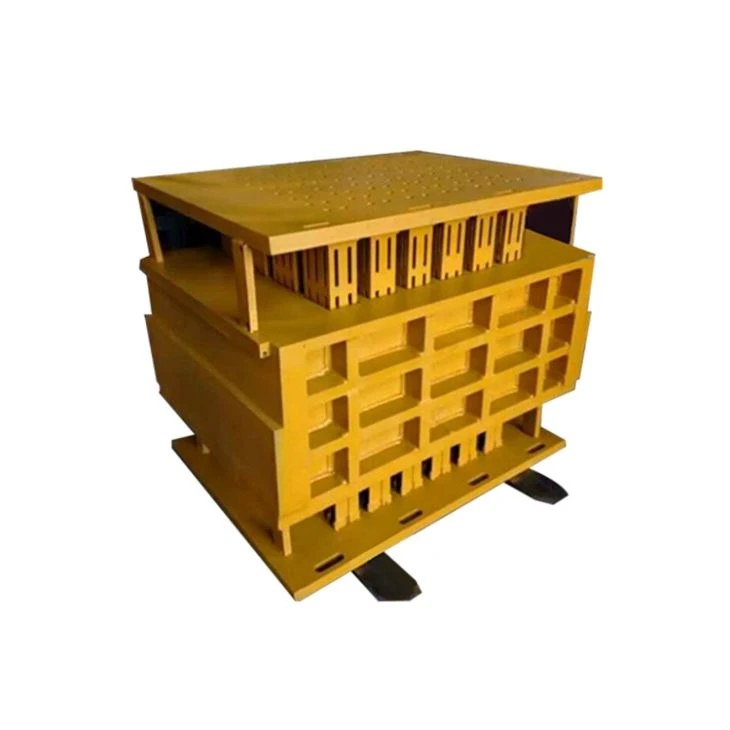

The high quality mold is manufactured by professional technicians, geometrical standard, combined with advanced pressure and vibration technology. The product has high pressure and high density after molding, which greatly improves the compressive and flexural strength of the product.

Main features:

1.Automatic demoulding, automatic transferring

2.Improve the speed of demoulding and bricking.

3.It has convenient operation and maintenance, reasonable structure and beautiful appearance.

4.the use of advanced electro-hydraulic control and precise hydraulic sequence high and low pressure operating system, thereby increasing pressure, pressing and automatic feeding.




Technical Parameter

Model No.

UM600

Production capacity:

24 pcs/mold (Standard solid brick: 238x113x48mm)

20 pcs/mold (color paver: 200x100x60mm)

Forming period

Solid brick: 15-20s color brick: 20-25s

Max pressure

6000KN (600 T)

Main power

48.7KW

Pump max pressure

31.5 Mpa

Machine size

3300×2610×3750(mm)

Mould dimension

1040*820mm

Mixing power

4.5 KW

Vibration power

2×5.5 KW

Hydraulic system

YUKEN Valve

Stroke direction

reversible

Control system

Siemens or Omron PLC
