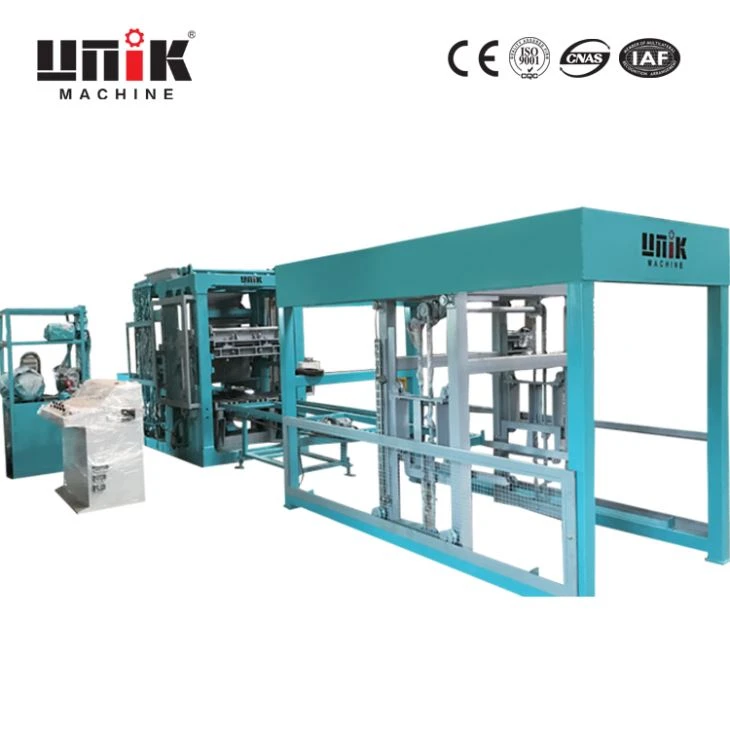

Low Cost Hydraulic Automatic Interlocking Cement Brick Making Machine

Our Hydraulic interlocking cement brick making machine is designed to meet the mass production of various kinds of concrete masonry blocks like brick, blocks, pavers, slabs, curbs, interlocking types etc by just changing the mould

Details


cement brick making machine.jpg

Low Cost Hydraulic Automatic Interlocking Cement Brick Making Machine

Our Hydraulic interlocking cement brick making machine’s production cycle time is between 13 seconds without and 16 seconds with Face mix on regular Pavers production. This means with a production rate of 5 cycles per minute and 90 % efficiency the average output should be approx. 220 cycles per hour. Depend on the design and shape for the different pavers and Block, the actual hourly production capacity varies. However, please note that the machine speed will be lower with manual labour evolved and increase with more automation.






QT9-15 model specification



Main Dimension(L*W*H)

3670*2650*2867mm

Useful Moulding Area

1280*600*40~220mm

Pallet size (L*W*H)

1380*680*30~40mm

Pressure Rating

12~25Mpa

Vibration

60~95KN

Vibration Frequency

2800~4800r/min

Cycle time

13-18s

Power

48.5kW

Gross weight

11.5T

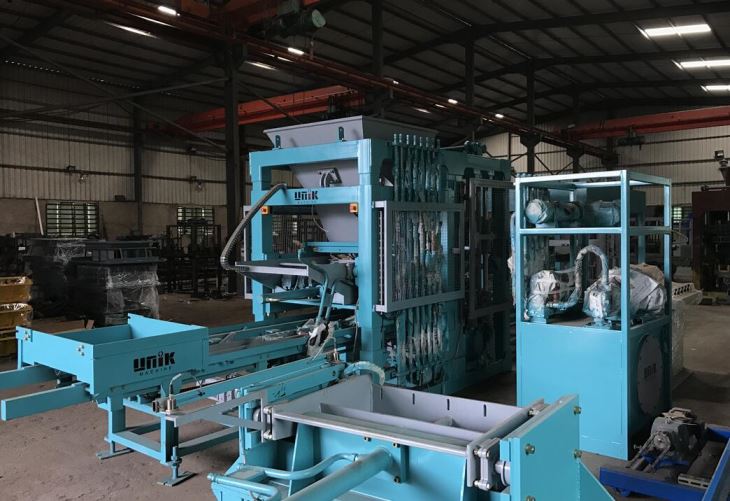

Hydraulic pressure system


The hydraulic pressure system is researched and developed by our engineers. The integrated and independent hydraulic valves such as the electromagnetism valve, electro-hydraulic directional control valves etc all imported from Japan (the brand: Yukento ensure accuracy and reliability.




High quality mould


Optimized milling strategies and hardening technology ensure the high quality of  moulds

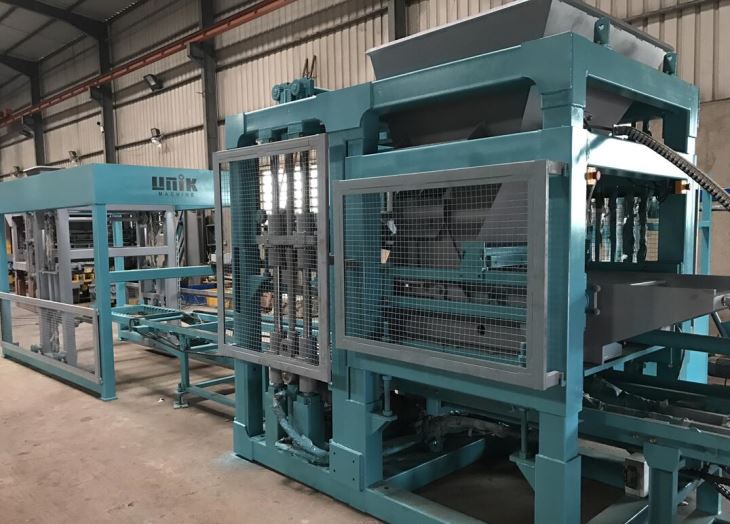

Pallet feeder machine


Considering the high labor cost, we have designed the pallets feeder machine for cement brick making machine to tranfer the pallets one by one in automation





1.PL1200 batching station 2.JS500 Mixer 3.Cement silo 4.screw conveyor
5.Cement scale 6.Conveyor belt 7.block machine 8.Automatic stacker






FAQ:


1.Which machine is most suitable for my project?

You should make sure how much work space you have to produce and store blocks, how many blocks you want to produce in a day, what your initial budget for this machine.


2.Can I use just one machine to make every type of blocks?

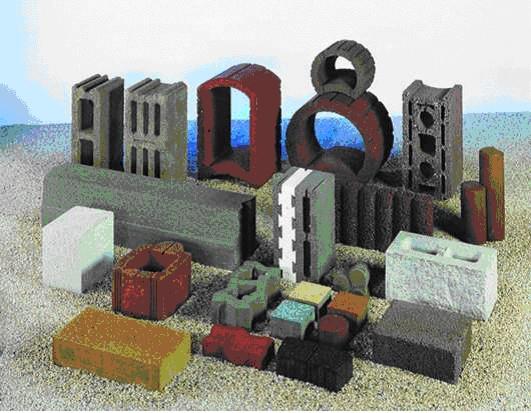

Yes,Our block making machine is designed to meet the mass production of various kinds of concrete masonry blocks like brick, blocks, pavers, slabs, curbs, interlocking types etc by just changing the mould. all you need to do is remove one type mould and replace with another, which cost at half hour for changing time.


3.what raw materials are required to produce blocks?

Cement, sand, aggregate Fine and coarse aggregates make up the bulk of a concrete mixture. The max diameter should require within 10mm.


4.Can I get installation for this machine?

We will arrange our engineer to your factory to guide installation and training,the customer will be responsible for all wages and expense of engineer.


5.How about warranty?

we promise 18 months guarantee for date of purchase, and agrees to repair or replace any defective part without charge,This warranty does not cover in cases of improper user, incorrect handling, insufficient maintenance, act of third parties, unauthorized service or modifications to the machine, damage resulting from accident, abuse, lack of reasonable care, normal wear or the addition of any other equipment not provided with product
