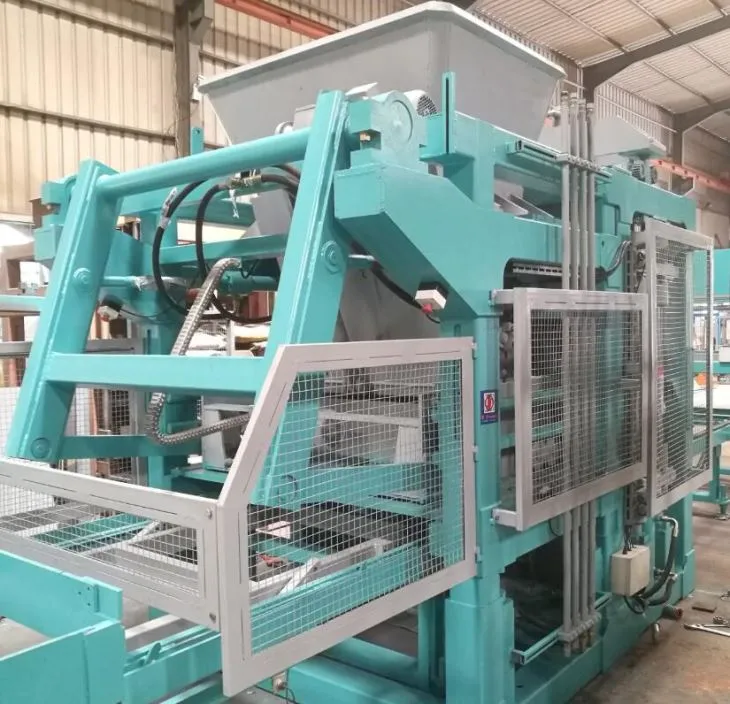

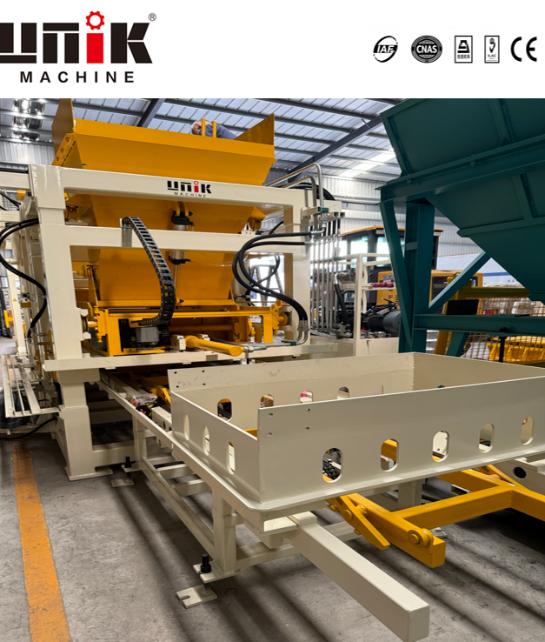

Hydraulic Block Making Machine

Hydraulic Block Making Machine After a series of joint scientific research, we successfully developed a series of block production equipment that can use a large amount of waste residue to produce perforated bricks and various kinds of wall and floor tiles, designing and applying a lot of new...

Details

Hydraulic Block Making Machine


After a series of joint scientific research, we successfully developed a series of block production equipment that can use a large amount of waste residue to produce perforated bricks and various kinds of wall and floor tiles, designing and applying a lot of new technologies. Its function and characteristics are as follows:


1.The structure is novel and the body adopts the super-strong steel welding. The equipment has various performances obviously, and the working performance is reliable. So, the continuous work is not a problem.



2.Unique form of vibration: the use of flow and pressure in computer-controlled hydraulic system completed vertical synchronous vibration frequency, braking;Using excess oil while pressurizing, it will be converted into shock force, which basically eliminate energy consumption.



3.Increase of the effective work surface: Due to the design uses a variety of new vibration technology, to increase the effective vibration forming area. That has laid a solid foundation for the large-scale production of porous brick, greatly improving the production efficiency.



4.A multi-function machine: a variety of blocks, curbs, river bricks, slope protection bricks, square bricks, sidewalk bricks, wharf brick, facing brick, roof insulation, parking grass planting bricks, fully meeting the market demand, and reducing investment risk in maximum degree for users .



Main features.jpg



Technical specification:



Main Dimension(L*W*H)

3750*2380*2900mm

Useful Moulding Area

1280*660*40~220mm

Pallet size (L*W*H)

1380*740*25~40mm

Pressure Rating

12~25Mpa

Vibration

60~95KN

Vibration Frequency

2800~4800r/min

Cycle time

13-18s

Power

63.45kW

Gross weight

11.5T




Capacity:



Product size(mm)

Pcs./Pallet

Pcs./Hour

390*190*190 TIM截图20171009101825.jpg

     10

    1800

390*140*190 TIM截图20171009101955.jpg

     20

    3600

200*100*60 TIM截图20171009102234.jpg

    36

    5184


    24

    4032



 Sample products.jpg

Utilized in a simple production line:



The fully automatic production line is made up of batching station,mixer belt conveyor,interlocking brick making machine and automatic stacker.the green blocks came out of brick making machine will be transported to stacker and lifed to a prearranged height by stacker,when the pallets come to the appointed layers, it should be carried to the curing area by hand pallet truck or forklift.

Fully automatic block production line.jpg


1.Batching station                    2.Concrete mixer                     3.Cement silo         4.Screw conveyor

5.Cement scale                       6.Conveyor belt                    7.Block machine        8.Automatic stacker

QT10-15 block machine.png

We have already pass IS09001 quality management system, certifed by CE and other market entering qualification. with the spirit of credit, preciseness, and innovation,leading by high technology and based on market orientation, UNIK constantly develops new and good products.
