Hydraform block making machine


Frame structure: It is made of high-strength steel and special welding process, and it is sturdy.

Guide column: Made of super-strength special steel, chrome plating has good bending and wear resistance.

Tamper head: Electro-hydraulic synchronous drive, the same pallet product height error is very small, product consistency is good.

Distributing device: Using sensing and hydraulic proportional drive technology, under the action of the swing-type feeding car and the broken arch mechanism, it produces forced centrifugal discharge, and the material is quickly and evenly distributed, which is particularly advantageous for thin-walled multi-row hole products.

Control system: With powerful self-diagnosis and guidance functions, can monitor and display operating status at real time, found faults and timely shutdown and alarm.

The control system has an intelligent action interlock function to prevent misoperation and produce mechanical failure.

Use imported PLC programmable controller, color touch screen, more user-friendly operation interface, parameter guidance and many other practical functions to allow users to easily realize human-machine dialogue.

Vibrators: Driven by electro-hydraulic technology, multi-source vibration system, under the control of the computer by the hydraulic drive to generate vertical synchronous vibration, adjustable frequency, to achieve low-frequency feeding, high-frequency molding working principle, can be good for different raw materials Vibrating effect, vibration speed up to 5g or more.

Rack and pinion type synchronization mechanism: Make sure the block height is the same.

Storage and material distribution device: The supply of materials is controlled by computer to prevent the material from being affected by external factors and to generate internal pressure, to ensure that the material is uniformly distributed, and to minimize the intensity of the product.

hydraulic block making machine(001).jpg


Technical specification:

Dimension

Rating pressures

Vibration

Vibration frequency

Pallet size

Cycle time

Power

Weight

3100×1680×2400mm

25Mpa

Table Vibration

3800-4500r/min

850×680mm

15-20sec

42.15kw

7400kg

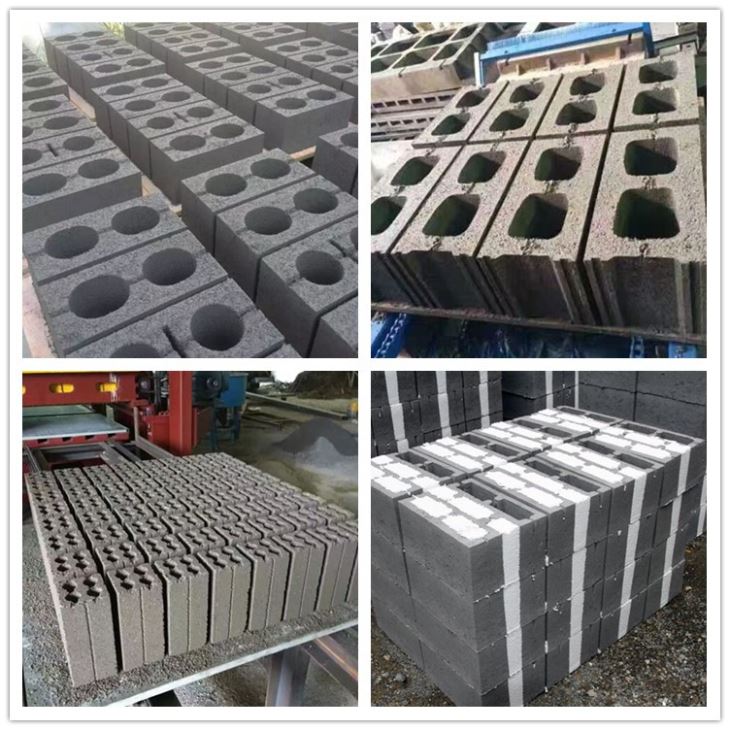

Production Capacity:

Items

Size(L×W×H)

Pcs./mould

Pcs./hour

Pcs./hour

One year(300days)Production

Hollow Blocks

390×190×190

6

1440

11520

3456000

Perforated Blocks

240×115×90

15

3600

28800

8640000

Solid Blocks

240×115×50

30

7200

57600

17280000

Rectangular pavers

200×100×60

21

5040

40320

12096000
