Concrete Paving Block Making Machine

Adopt Germany high-performance hydraulic technology, dual hydraulic drive system. More powerful vibration, shorter molding cycle, higher product strength.

Details

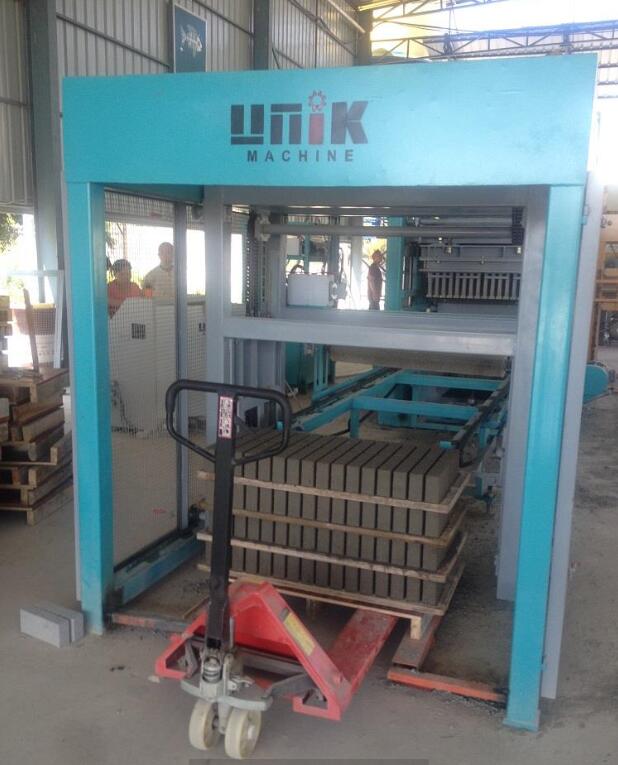

Concrete paving block making machine



Hydraulic system:
◇ Adopt Germany high-performance hydraulic technology, dual hydraulic drive system. More powerful vibration, shorter molding cycle, higher product strength.


Control System:
◇Equipped with independent research and development control system, seamlessly connecting with the hydraulic system and the mechanical part to achieve the integration of electromechanical and hydraulic control, so that the entire machine can operate efficiently to achieve the best working conditions.
◇ It has a unique system parameter recovery function so that system parameters will never be lost. Restore all system parameters instantly when needed.


Vibration system:

◇The vibration molding system adopts double motor synchronous vibration, pressure forming, synchronous demoulding, short molding cycle and high production efficiency. The motor running speed can be adjusted to obtain good tapping effect on different raw materials.

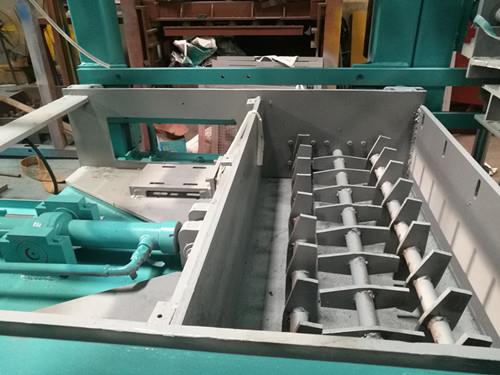

Feeding system:
◇ Adopt suspended two-way positioning material car with small running resistance to solve the influence of the thickness error of the pallet on the product.
◇ Using rotary feeders, the fabric is more uniform, the product is more dense, and the problem of long porous bricks is solved.

Germany tech.jpg

Technical specification:

Dimension

3000×2090×3000mm

Pallet Size

1100×560×20mm

Vibration Frequency

3800-4500 r/min

Hydraulic Pressure

25 mpa

Vibration Force

68 KN

Cycle time

15-20s

Power

31.4 kW

Weight

6950 KG


Wide range products:
A variety of exterior wall blocks, interior wall blocks, flower wall blocks, floor blocks, berm blocks, interlocking blocks and roadside blocks are able to be produced. With face mix section can also produce colorful pavement tiles.


Raw material:
By using sand, stones and cement, a large number of industrial waste such as fly ash, slag, steel slag, coal gangue, ceramsite and perlite can be added.


Capacity:



Packaging & Shipping:

Steel equipments including main machine, stacker, block/pallet conveyor, mixer and batching machine ect, will be packed nakedly in the container according to the space of container. The electrical components will be packed in strong seaworthy wood cases.

Delivery time is 30-45 days after 30 % deposit is received.

Port of Dispatch: Xiamen.


Our service:

Pre-sale service

◆ Accept consultation

◆ Confirm user investment target

◆ Site selection

◆ Design and construction plan, drawings


Sale service

◆ Assist in the supervision of the construction process

◆ Provide on-site guidance installation, commissioning equipment

◆ Help users establish on-site management system and quality management system

◆ Training production operators



After sales service

◆ Assist users in formulating production process recipes

◆ Provide network remote service

◆ Technician on-site maintenance

◆ Safe and fast parts distribution


Additional service:

◆Equipment mold update

◆Technical update, system upgrade

◆Product application technical support

◆Share the latest results
