Cement Brick Making Machine

Cement brick making machine Cement brick making machine is very scientific and very reasonable design,used hydraulic transmission principle, By linking the automatic transfer board system, feeding and dosing system, as well as the system of the fabric and so on, we can effectively achieve fully...

Details

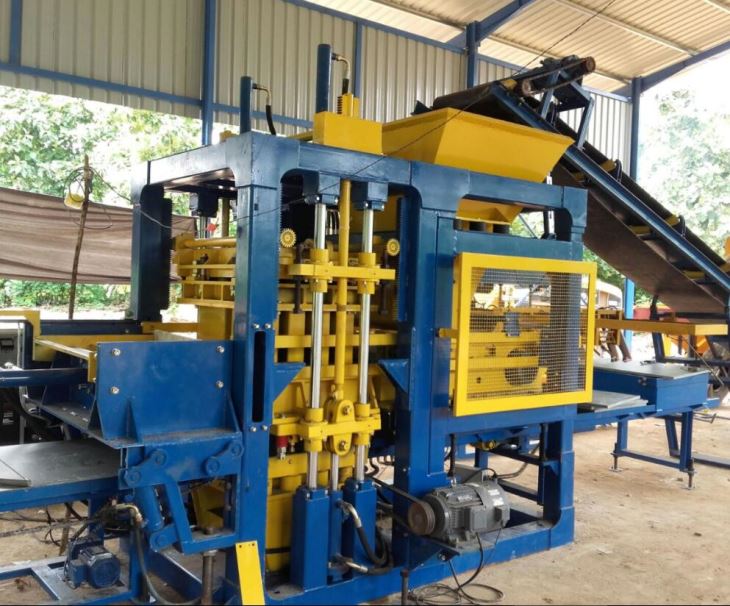

Cement brick making machine

Cement brick making machine.jpg


Cement brick making machine is very scientific and very reasonable design,used hydraulic transmission principle,By linking the automatic transfer board system, feeding and dosing system, as well as the system of the fabric and so on, we can effectively achieve fully automated operation for everyone. Also, we can make the production efficiency of entire brick machine reached a very alarming figure, and a large amount of brick production. The quality of the produced cement bricks is also very good and stable.


Main features:

1.Cement brick machine can suppress the block, which side length of 400mm and the thickness within 100mm, with short time, quick effect, and mechanical stability.

2.Not only through the operation of the screen for human-computer interaction, but also directly through the main console to achieve remote operation, or connection operation of multiple machine, which can bring a very convenient operating effect for customer.

3.Through these smart procedures, we can achieve the setting of parameters, the collection of information, fault diagnosis and self-protection of program and other functions for users,It effectively reduce the misuse, or some of the errors arising from when you do not understand the operation

4.The cement brick machine made well, the error of product quality is less than 1%, the intensity error is 0.5%. Cement brick machine press up and down, with strong vibration,is suitable to produce high strength blocks, and the products can be directly piles up to 3-5 layers after molding.



Technical Specification:



Dimension

5900×2040×2900mm

Pallet Size

1100×950×25~45mm

Vibration Frequency

3800-4500 r/min

Hydraulic Pressure

25 mpa

Vibration Force

68 KN

Cycle time

15-20s

Power

45.38kW

Weight

12800KG


Product size(mm)

Pcs./Pallet

Pcs./Hour

390*190*190 TIM截图20171009101825.jpg

     10

    1800

390*140*190  TIM截图20171009101955.jpg

     20

    3600

200*100*60 TIM截图20171009102234.jpg

    36

    5184


    24

    4032


Wooden pallets.jpg


Fully automatic production line:

 The fully automatic production line is made up of batching station,mixer belt conveyor,interlocking brick making machine and automatic stacker.the green blocks came out of brick making machine will be transported to stacker and lifed to a prearranged height by stacker,when the pallets come to the appointed layers, it should be carried to the curing area by hand pallet truck or forklift.

Fully automatic block production line.jpg



1.PL1200 batching station2.JS Compulsory Mixer3.Cement silo4.screw conveyor
5.Cement scale6.Conveyor belt7.block machine8.Automatic stacker


Simple production line.jpg


Hollow block.jpg

We have already pass IS09001 quality management system, certifed by CE and other market entering qualification. with the spirit of credit, preciseness, and innovation,leading by high technology and based on market orientation, UNIK constantly develops new and good products.
