Automatic Cement Brick Making Machine

Automatic cement brick making machine To suit the oversea market and ensure the machine works efficiently, we have used many parts manufactured with a well-known brand imported from overseas: 1. Siemens Motor 2.Yuken Valve 3. PEPPERL+FUCHS Sensor Manufacturing: Quality does not only come from...

Details

Automatic cement brick making machine



Our QT9-15 automatic cement brick making machine is designed for a product height of 40-220mm, the production pallets size :1380*740*25-40mm,the cycle times various on different products and mold configuration.Manual handling system on pallet feeding and take off could result in slower cycle time.










Main Features:





  1. The machine frame consists of a welded construction using sectional steel to ensure optimum rigidity and accessibility.

  2. The tamper and mould carriages are guided by 2 columns, accurately mounted on each side of the main frame in machined housings to allow for close tolerance synthetic bearings and cleaning rings.

  3. The base coarse mix and face mix hopper (optional) and feed boxes are mounted in sub frames, which is vertically adjustable for different product heights. After adjustment by means of a mechanical clamping this frame is bolted to the main frame.

  4. The fresh concrete hoppers (base coarse mix and face mix) are located 90 degrees of the conveying direction and discharge is arranged directly into the feedbox.






To suit the oversea market and ensure the machine works efficiently, we have used many parts manufactured with a well-known brand imported from overseas:

1. Siemens Motor    2.YukenValve     3.PEPPERL+FUCHS Sensor



Manufacturing: Quality does not only come from years for reputation,also from the authorization of various authority badies at home, We take reliable quality, committed to the development of a variety of products and services meet customers requirement around the world.



Technical Specification:



Main Dimension(L*W*H)

3700*2300*2800mm

Useful Moulding Area

1280*660*40~220mm

Pallet size (L*W*H)

1380*740*25~40mm

Pressure Rating

12~25Mpa

Vibration

60~95KN

Vibration Frequency

2800~4800r/min

Cycle time

13-18s

Power

48.5kW

Gross weight

11.5T










 Capacity:



Product size (mm)

       Pcs./Pallt

       Pcs./Hour

Legend

390*190*190

           9

        1620

390*140*190

          12

        2160

200*100*60

          36

        8640

225*112.5*60

          25

       6000

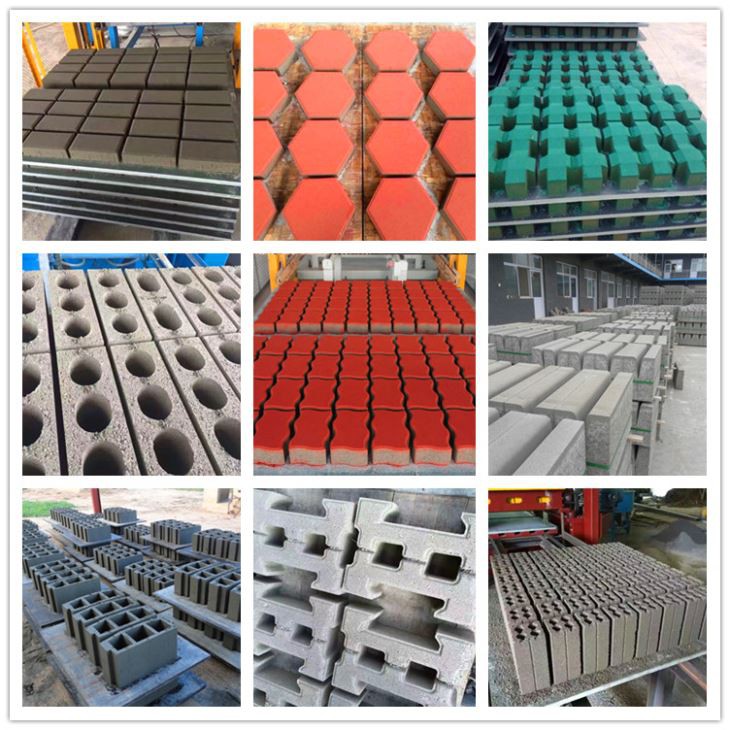

 We are able to design and manufacture thousands types of mould for any special requirement:


Concrete products_副本.jpg













FAQ:


1.Which machine is most suitable for my project?

You should make sure how much work space you have to produce and store blocks, how many blocks you want to produce in a day, what your initial budget for this machine.



2.Can I use just one machine to make every type of blocks?

Yes,Our block making machine is designed to meet the mass production of various kinds of concrete masonry blocks like brick, blocks, pavers, slabs, curbs, interlocking types etc by just changing the mould. all you need to do is remove one type mould and replace with another, which cost at half hour for changing time.


3.what raw materials are required to produce blocks?

Cement, sand, aggregate Fine and coarse aggregates make up the bulk of a concrete mixture. The max diameter should require within 10mm.


4.Can I get installation for this machine?

We will arrange our engineer to your factory to guide installation and training,the customer will be responsible for all wages and expense of engineer.


5.How about warranty?

we promise 18 months guarantee for date of purchase, and agrees to repair or replace any defective part without charge,This warranty does not cover in cases of improper user, incorrect handling, insufficient maintenance, act of third parties, unauthorized service or modifications to the machine, damage resulting from accident, abuse, lack of reasonable care, normal wear or the addition of any other equipment not provided with product
