QT10-15 Block Making Machine

QT10-15 block making machine Main Features: The proportion description formality of the storing material can be changed different materials forming parameter in real time. Vibration, charging and pressing time can be adjusted according to different materials and different products. Three...

Details

QT10-15 block making machine



UNIK QT10-15 block making machine has been manufactured a high-efficiency model to meet the various customer requirements with easy operation, lower failure ratio and high reliability automatic control, we are able to make customized concrete product like special-shape blocks, pavers and solid brick ect. The simple concrete block production line is made up of cement silo, batching station,mixer, belt conveyor, QT10-15 block making machine and automatic stacker. The fresh block will be transported to stacker pallet by pallet, when the pallets come to a certain height, workers should carry the blocks which are well stacked to the curing area with forklift.



Main features

1.The proportion description formality of the storing material can be changed different materials forming parameter in real time.

2.Vibration, charging and pressing time can be adjusted according to different materials and different products.

3.Three operation modes “fully automatic”,Semi automatic” and “manual” can ensure the continuous manufacturing process

4.The faults can be diagnosed automatically and the machine will send warn signals to ensure safety in production

5.Double high-dynamic proportional valves can adjust the oil flow and pressure in automatic



Technical Specification:


Dimension

5900×2040×2900mm

Pallet Size

1100×950×25~45mm

Vibration Frequency

3800-4500 r/min

Hydraulic Pressure

25 mpa

Vibration Force

68 KN

Cycle time

15-20s

Power

45.38kW

Weight

12800KG




Product size(mm)

Pcs./Pallet

Pcs./Hour

390*190*190 TIM截图20171009101825.jpg

     10

    1800

390*140*190 TIM截图20171009101955.jpg

     20

    3600

200*100*60 TIM截图20171009102234.jpg

    36

    5184


    24

    4032

Client's factory




Fully Automatic Production Line:

3D Simple production line.jpg

1.Batching station                    2.Concrete mixer                     3.Cement silo                         4.Screw conveyor

5.Cement scale                       6.Conveyor belt                    7.QT10-15 Block machine        8.Automatic stacker

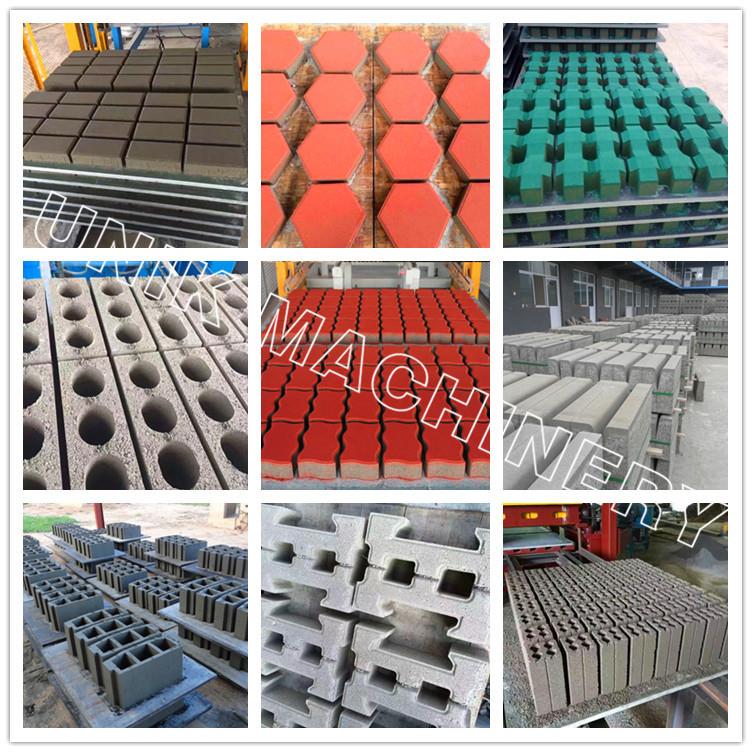

Sample products


Concrete products_副本.jpg

Color pavers.jpg








FAQ


1.Which machine is most suitable for my project?

You should make sure how much work space you have to produce and store blocks, how many blocks you want to produce in a day, what your initial budget for this machine.



2.Can I use just one machine to make every type of blocks?

Yes,Our block making machine is designed to meet the mass production of various kinds of concrete masonry blocks like brick, blocks, pavers, slabs, curbs, interlocking types etc by just changing the mould. all you need to do is remove one type mould and replace with another, which cost at half hour for changing time.


3.what raw materials are required to produce blocks?

Cement, sand, aggregate Fine and coarse aggregates make up the bulk of a concrete mixture. The max diameter should require within 10mm.


4.Can I get installation for this machine?

We will arrange our engineer to your factory to guide installation and training,the customer will be responsible for all wages and expense of engineer.


5.How about warranty?

we promise 18 months guarantee for date of purchase, and agrees to repair or replace any defective part without charge,This warranty does not cover in cases of improper user, incorrect handling, insufficient maintenance, act of third parties, unauthorized service or modifications to the machine, damage resulting from accident, abuse, lack of reasonable care, normal wear or the addition of any other equipment not provided with product
