Hollow Block Making Machine

Hollow Block Making Machine Unik hollow block making machine is adopted a large flow pair pump, the valve of electronmangetic,guarantee that the high pressure is steady, reliable. and produce high strength products include large specification way colored curbstone,insulating blocks,road brick,...

Details

Hollow Block Making Machine

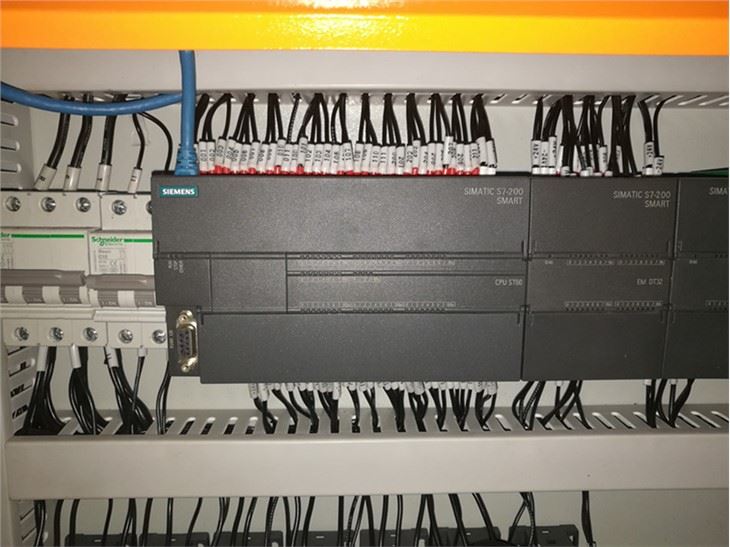

Unik hollow block making machine is adopted a large flow pair pump, the valve of electronmangetic,guarantee that the high pressure is steady, reliable. and produce high strength products include large specification way colored curbstone,insulating blocks,road brick, slope protection brick that meet the market requirement by easily replacing moulds.we have three types of operating modes,full-auto,semi-auto and manual mode, and all are controlled by Omron PLC industry system to keep constant producing.


Main features

  1. Our machine has a very compact structure, uses high special steel and advanced heat treatment to maximize rigidity and minimize deform as well as to ensure stable and reliable oepration and to reduce engergy consumption

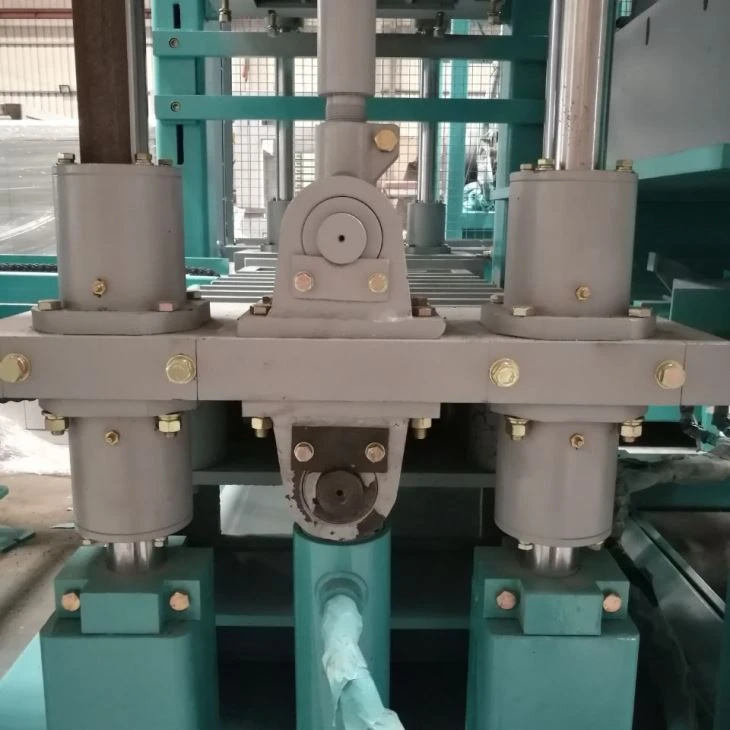

  2. Both upper and lower mobile beams use four column guiding to ensure high precision and smooth operation. Guide sleeve is used a special wear-resistant composite materials to ensure long service life

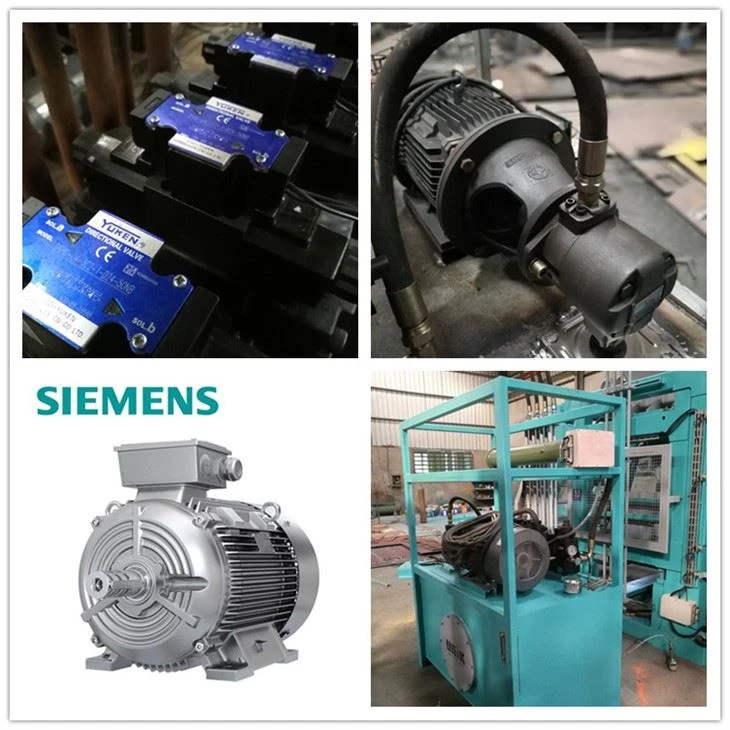

  3. Imported well-known brand hydraulic components are used to ensure stable and reliable system operation

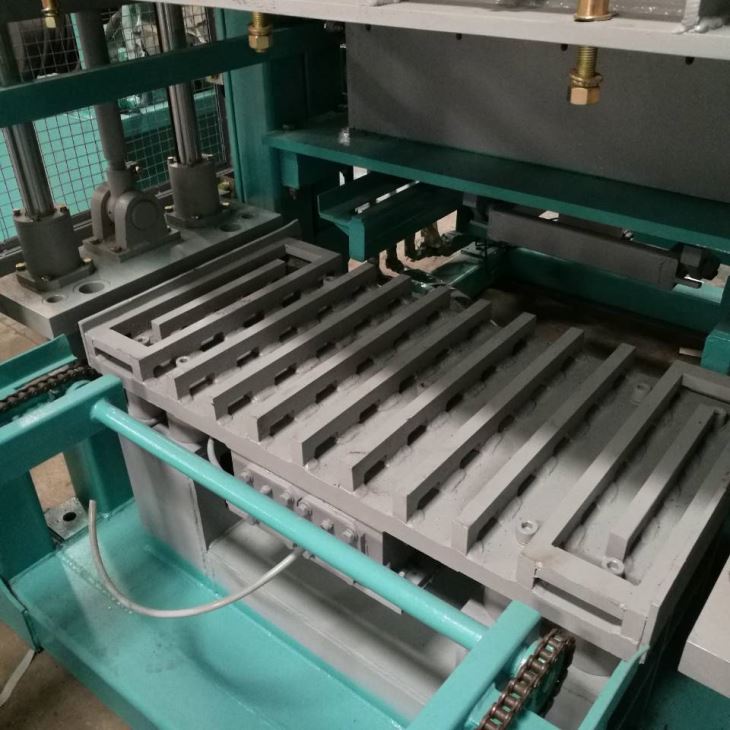

  4. Pallet conveyor machine is operated by inverter motor to be flexible movement ensure zero damage while transferring pallets



  5. High-power frequency conversion can adjust vibration strength and amplitude, to achieve the best vibration effect and noise reduction when producing



  6. the product's forming is under high intelligent control to ensure the height within ±2mm,the proportion description formality of the storing material can change different material's forming parameter in real time. all faults will be checked out and displayed with real time

  7.




Technical specification


Dimension

3070×1930×2460mm

Pallet Size

1100×600×25~30mm

Vibration Frequency

3800-4500 r/min

Hydraulic Pressure

21 mpa

Vibration Force

68 KN

Cycle time

15-20s

Power

42.15kW

Weight

12800KG

 Concrete products.jpg


Capacity


Product size(mm)

Pcs./Pallet

Pcs./Hour


5

900

225x112x80m    TIM截图20171009102100.jpg

16

3840


25

6000


36

8640





Customer visit.jpginitpintu_副本.jpg

QT9-15 block machine.png


FAQ:


1.Which machine is most suitable for my project?

You should make sure how much work space you have to produce and store blocks, how many blocks you want to produce in a day, what your initial budget for this machine.



2.Can I use just one machine to make every type of blocks?

Yes,Our block making machine is designed to meet the mass production of various kinds of concrete masonry blocks like brick, blocks, pavers, slabs, curbs, interlocking types etc by just changing the mould. all you need to do is remove one type mould and replace with another, which cost at half hour for changing time.


3.what raw materials are required to produce blocks?

Cement, sand, aggregate Fine and coarse aggregates make up the bulk of a concrete mixture. The max diameter should require within 10mm.


4.Can I get installation for this machine?

We will arrange our engineer to your factory to guide installation and training,the customer will be responsible for all wages and expense of engineer.


5.How about warranty?

we promise 18 months guarantee for date of purchase, and agrees to repair or replace any defective part without charge,This warranty does not cover in cases of improper user, incorrect handling, insufficient maintenance, act of third parties, unauthorized service or modifications to the machine, damage resulting from accident, abuse, lack of reasonable care, normal wear or the addition of any other equipment not provided with product
