Hollow Block Machine

Hollow Block Machine Hollow block machine has been applicable for producing series of color face bricks (layered color distribution), road curb stone, hollow blocks, cellular bricks, concrete standard bricks with and without face mix, The machine is built of strong section steel with 4 guiding...

Details

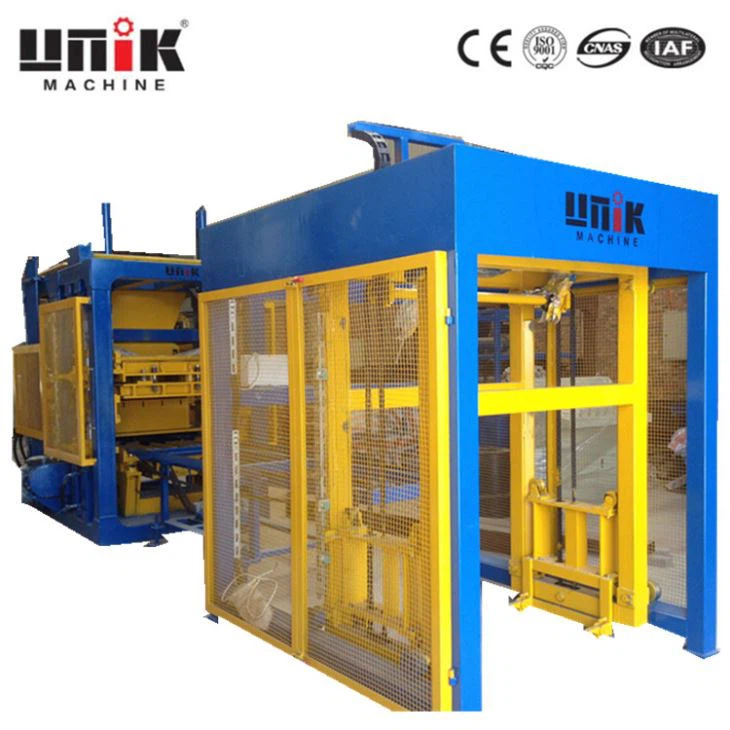

Hollow Block Machine



Hollow block machine has been applicable for producing series of color face bricks (layered color distribution), road curb stone, hollow blocks, cellular bricks, concrete standard bricks with and without face mix, The machine is built of strong section steel with 4 guiding columns with which the mould moves up and down,with the characters of high automation, stable capability and mulifuncation.




Main Features:

1. The seat of mould is equipped with synchronized connecting rod to guarantee mould and pressure head move accruately and synchronously

2. Three types of operating modes,full-auto,semi-auto and manual mode

3.Two way cartridge inserted valves are extensively used in the design to ensure fast system response, adequate oil flow and reliable seal

4.Proportional servo techonogy is used together with high-precision testing devices to realize automatic brick thickness testing and adjustment.

5.Fully automatic cement brick machine has high degree of automation and it achieved fully automation of the fabric, forming, blank, stacking and other processes.

Block making machine parts.jpg


Technical specification:


Dimension

3100×1680×2460 mm

Pallet Size

850×680×20~35mm

Vibration   Frequency

3800-4500 r/min

Hydraulic   Pressure

25 mpa

Vibration Force

68 KN

Cycle time

15-20s

Power

40.65kW

Weight

7400KG

Capacity:


Product size (mm)

Pcs./Pallt

Pcs./Hour

Legend

390*190*190

   6

1080


390*140*190

   8

1440


200*100*60

   21

5040


225*112.5*60

   15

3600

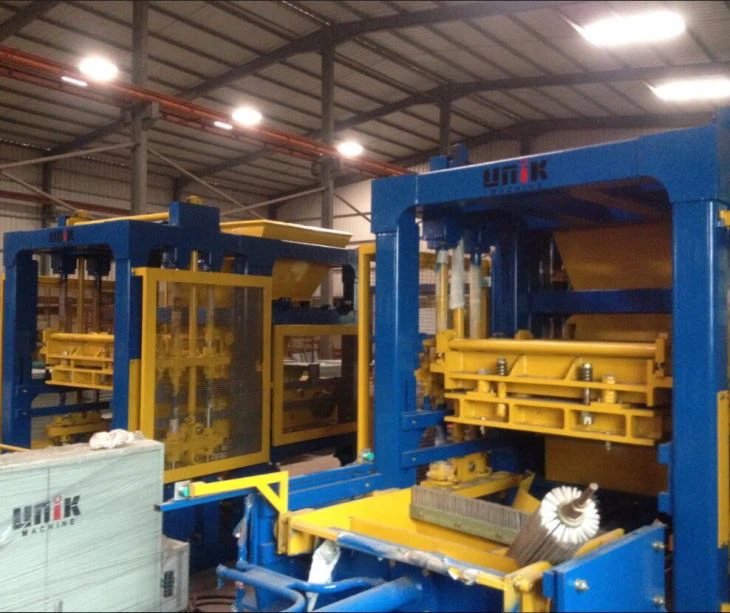

hollow block machine.jpg

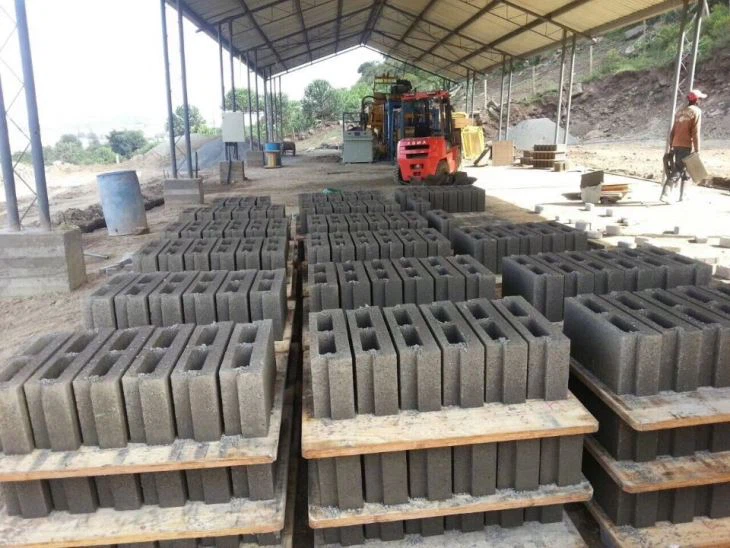

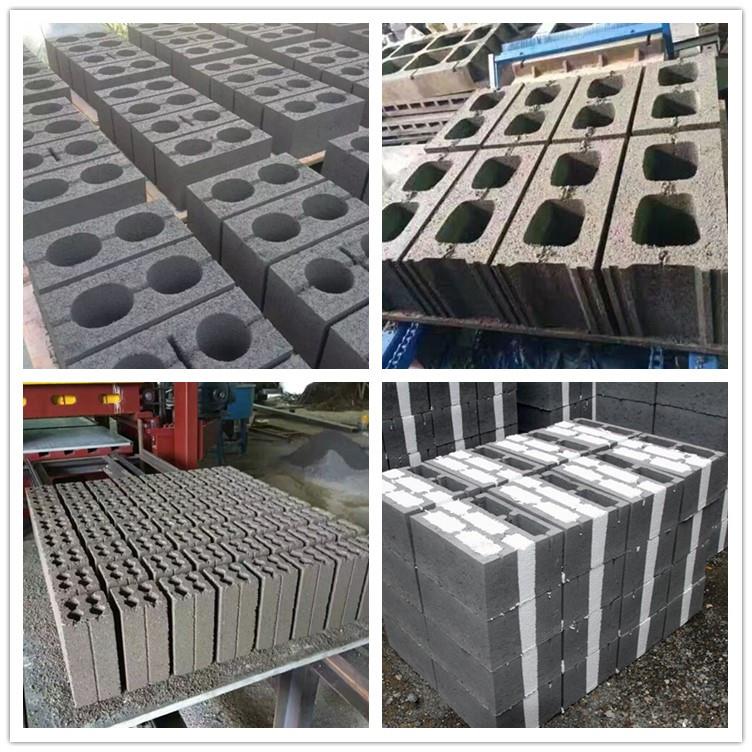

Hollow block.jpg

We have already pass IS09001 quality management system, certifed by CE and other market entering qualification. with the spirit of credit, preciseness, and innovation,leading by high technology and based on market orientation, UNIK constantly develops new and good products.




FAQ:


1.Which machine is most suitable for my project?

You should make sure how much work space you have to produce and store blocks, how many blocks you want to produce in a day, what your initial budget for this machine.



2.Can I use just one machine to make every type of blocks?

Yes,Our block making machine is designed to meet the mass production of various kinds of concrete masonry blocks like brick, blocks, pavers, slabs, curbs, interlocking types etc by just changing the mould. all you need to do is remove one type mould and replace with another, which cost at half hour for changing time.


3.what raw materials are required to produce blocks?

Cement, sand, aggregate Fine and coarse aggregates make up the bulk of a concrete mixture. The max diameter should require within 10mm.


4.Can I get installation for this machine?

We will arrange our engineer to your factory to guide installation and training,the customer will be responsible for all wages and expense of engineer.


5.How about warranty?

we promise 18 months guarantee for date of purchase, and agrees to repair or replace any defective part without charge,This warranty does not cover in cases of improper user, incorrect handling, insufficient maintenance, act of third parties, unauthorized service or modifications to the machine, damage resulting from accident, abuse, lack of reasonable care, normal wear or the addition of any other equipment not provided with product
