Cement Block Making Machine

Cement Block Making Machine Cement brick machine is suitable for fixed production of various specifications of the standard brick and other concrete products. Small semi-automatic cement brick machine has compact design, frame structure and stable performance, which is easy to maintain. It also...

Details

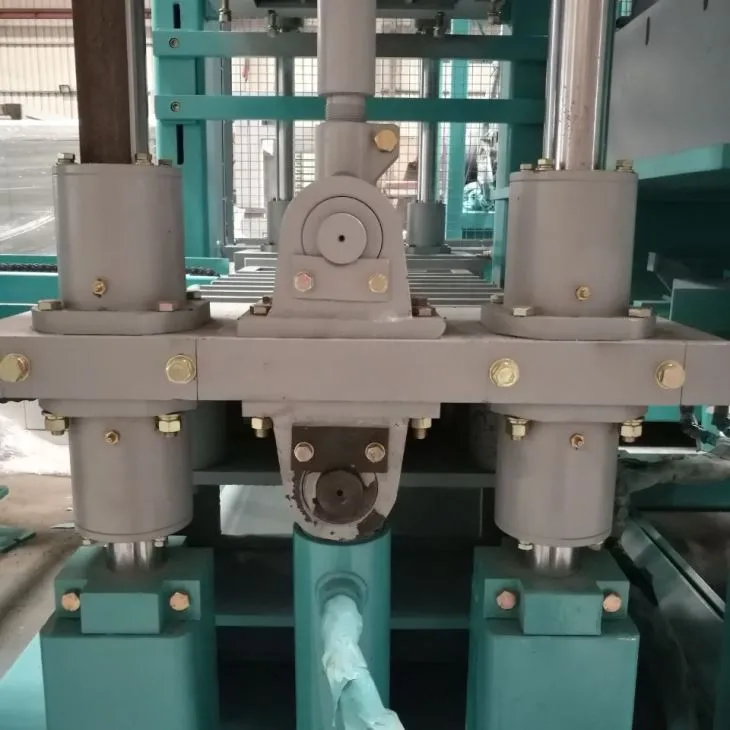

Cement Block Making Machine


Cement brick machine is suitable for fixed production of various specifications of the standard brick and other concrete products. Small semi-automatic cement brick machine has compact design, frame structure and stable performance, which is easy to maintain. It also has high degree of automation, good applicability and high compressive strength, which can produce a variety of different types of bricks and different specifications of the block in wall through the replacement of different molds.This equipment really can be a multi-purpose machine, with small footprint, stable production, high production efficiency, which is ideal for small brick plant.





Main features:

1.Cement brick machine is mechanical, hydraulic, computer automatic control / electric control integrated technology-based equipment, with features such as reasonable design, compact structure, convenient maintenance. Block-forming is mainly hydraulic-based, supplemented by machinery, vibration and pressure to complete. The compressive strength of block products can up to 15Mpa (MPa) above, with high density, antifreeze, impermeability, good performance of sound insulation and thermal insulation, accurate dimensions.

2.According to China's traditional customs of brick wall, the cement brick machine often use or change the specifications. The use of machine saves time and effort. Rational use of a transmission mechanism to complete a variety of process movements, simplifying the mechanical structure and easy to maintain.

3.The cement brick machine made well, the error of product quality is less than 1%, the intensity error is 0.5%. Cement brick machine press up and down, with strong vibration,is suitable to produce high strength blocks, and the products can be directly piles up to 3-5 layers after molding

4.A cement brick machine can has multi-purpose, with different molds can produce a variety of shapes and sizes of wall blocks. Cement brick machine compared with similar foreign equipment, under the condition of asme product quality, production capacity and the degree of automation, the equipment price is less than one-tenth of foreign countries.




Technical Specification:

We use adjustable central electric control system, the frequency of each machine is different.High-power frequency conversion can adjust vibration strength and amplitude, to achieve the best vibration effect and noise reduction.


Dimension

3050×2190×3000mm

Pallet Size

1100×600×20-30mm

Vibration Frequency

3800-4500 r/min

Hydraulic Pressure

25 mpa

Vibration Force

68 KN

Cycle time

15-20s

Power

42.15 kW

Weight

7500 KG



Capacity:

Product size (mm)


Pcs./Pallt

Pcs./Hour

Legend

390*190*190

   5

900


390*140*190

   6

1080


200*100*60

   25

5040


225*112.5*60

   16

3600




Utilized in a simple production line:

 The simple production line is made up of batching station,mixer belt conveyor,interlocking brick making machine and automatic stacker.the green blocks came out of brick making machine will be transported to stacker and lifed to a prearranged height by stacker,when the pallets come to the appointed layers, it should be carried to the curing area by hand pallet truck or forklift.

Fully automatic block production line.jpg



1.PL1200 batching station2.JS500 Mixer3.Cement silo4.screw conveyor
5.Cement scale6.Conveyor belt7.block machine8.Automatic stacker



Stacker machine.jpg

Sample products.jpg

We have already pass IS09001 quality management system, certifed by CE and other market entering qualification. with the spirit of credit, preciseness, and innovation,leading by high technology and based on market orientation, UNIK constantly develops new and good products.
