Cascade Hydraulic Concrete Block Clamp Forklift

Concrete block clamp could be used for holding variety of stone and concrete blocks ,especially in operations of non pallet transporting and piling of concrete blocks ,bricks ,stones and so on.

Details

Cascade hydraulic concrete block clamp forklift



Usage:
    Cascade hydraulic concrete block clamp forklift is suitable for various blocks such as aeroconcrete block, steam press brick, agglomerate brick, none-burning bricks,concrete pre-working products with non-tray transportings, stacking, load-ing operation



  Characteristic:

  1. Adopt full steel complete frame, high density, can meet the requirement of high forcing performance.
   2.According to the force designed to clamp arm, solid and reliable,large clamping force and holding clip quantity, long operating life.
   3. Large opening range :300-1700mm.
   4. Flexible design that can be installed on any use of spreader
   5. Optimized structure ensure nice visual field.

  6. Independent side shifter,can move both side while claping object

  7.with disassembly wearable rubber bar can hold a whole stack of blocks steadily.





 Specification:

 Model:BJ-001

 Carrying capacity:3000kg
 Arm length:1200mm
 Arm thick:210mm
 Height:2060mm
 Clamping height:1.2m
 Rotation:360°
 Frame width:1100
 Opening range:300mm-1700mm

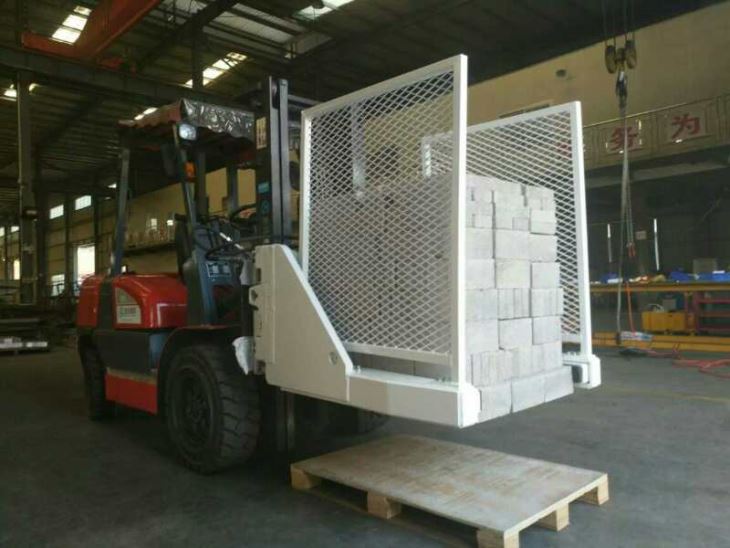

Block clamp forklift.jpg
