Block Clamp

Block Clamp The clamp is a forklift attachment that includes a frame, an arm connected to the frame and a cylinder connected to the arm. Holding arm includes left and right arms. One end of the cylinder is hinged with the left arm, and the other end of the cylinder is hinged with the right arm....

Details

Block Clamp

The clamp is a forklift attachment that includes a frame, an arm connected to the frame and a cylinder connected to the arm. Holding arm includes left and right arms. One end of the cylinder is hinged with the left arm, and the other end of the cylinder is hinged with the right arm. The left arm and the right arm are controlled to open and close by the oil cylinder. At least one first limit hole is arranged on the left of the hinge point on the first connector, and the second connector is provided with at least one first limiting hole on the right of the hinge point. The first limiting hole is inserted with a first limiting component for limiting the closing angle of the left arm and the right arm, which so as to limit the minimum clamp angle of the clamp and prevent the collision of the left  arm and the right arm. There is a first limit hole in the holding clamp, which can limit the closing angle of the left arm and the right arm so as to limit the minimum clamping angle of the clamp and prevent the collision of the left and the right arm. Then it can clamp smaller objects. The structure is simple, easy to operate, and has strong practicality.


Advantage design:

There is provided with a first limit hole in the liquid transmission. It can limit the closing angle of left arm and the right arm, thus playing the role of limiting the minimum clamping angle of the clamp, preventing the collision of the left arm and right arm, but also clamping smaller objects.Liquid transmission structure is simple, easy to operate, and has strong practicality. And it can be convenient to load large items and install small items, and can prevent the clamp arm from colliding.


Technical Capacity:

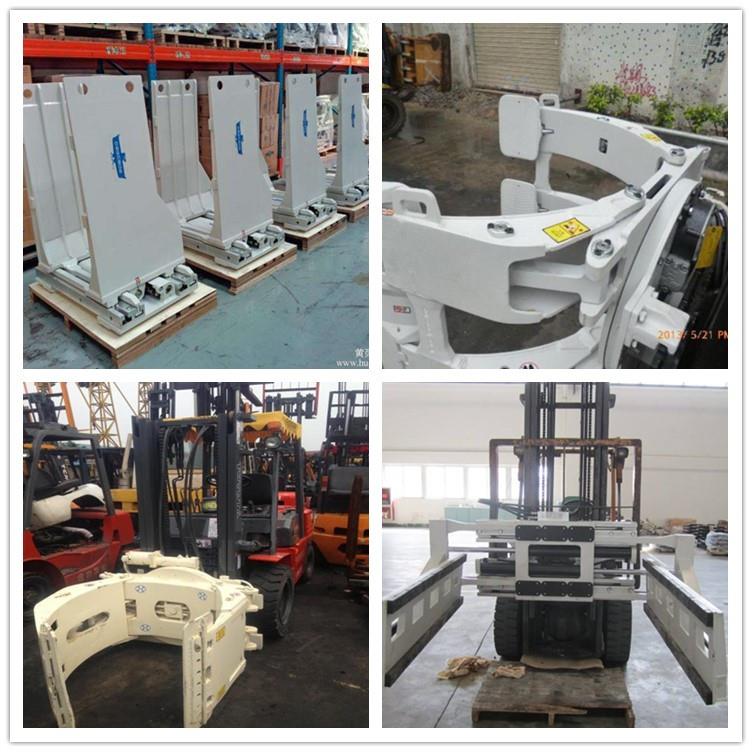

Block clamp.jpg



ModelLoadingDimensionArm sizeOpen sizeWeight



kgA1xA2mmmmkgL(mm)C1(mm)C2(mm)
UN15A-E16C15001130×13501000x240260-1600705241405578
UN15B-E16C15001130×13501000x241260-1600705241405578
UN15B-E18C15001330×13501200X240260-1600750241410580
UN15B-E19C15001530×13501400X300260-1600810241414583
UN20A-E16C20001132×13501000X240260-1600805243408580
UN20B-E16C20001132×13501000X240260-1600805243408580
UN20B-E16D20001332×13501200X240260-1600850243413582
UN20B-E16F20001532×13501400X3000260-1600910243417585
UN25A-E16C25001133×13501000X240260-1600870248410581
UN25B-E16C25001133×13501000X240260-1600870248410581
UN25B-E16D25001333×13501200X240260-1600920248415583
UN25B-E16F25001533×13501400X300260-1600975248419586
