Cuber Machine

Cuber machine Our cuber machine is specially researched and designed for concrete products producers who have problem of cured blocks in simple production line, as they used to manual cuber, which cause heavy labor intensity but low prduction efficiency,Normally, this cuber machine is separately...

Details

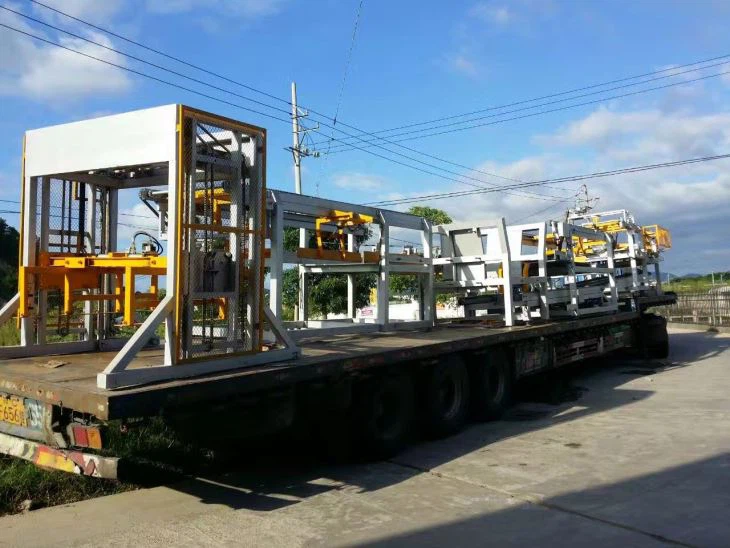

Cuber machine

Our cuber machine is specially researched and designed for concrete products producers who have problem of cured blocks in simple production line,  as they used to manual cuber, which cause heavy labor intensity but low prduction efficiency,Normally, this cuber machine is separately placed near the curing field to cuber the cured blocks, but it can be also connected directly with concrete block production line to realize online cuber( in this situation it is suggested to adopted automatic operation), to solve the problem, we will provide following equipments:



1.    Automatic block unloading machine

2.    Chain conveyor

3.    Brick pusher

4.    Pallet collector

5.    Automatic turntable

6.    Cuber head

7.    Non-tray conveyor








Technical Specification:



Items

Specification

Length   (L)

4570mm

Height   (H)

2260mm

Block Cubing Height  (H1)

135-2055mm

Pallets Cubing Height  (H3)

0-1800mm

Width   (W)

1850mm

Block Cubing Main Clamp Width  (W1)

700-1380mm

Block Cubing Side Clamp Width   (W2)

700-1380mm

Pallets Cubing Clamp Width      (W3)

850-1440mm

Block Cubing Sliding Dis.         (S1)

2000mm

Pallets Cubing Sliding Dis.        (S2)

2022mm

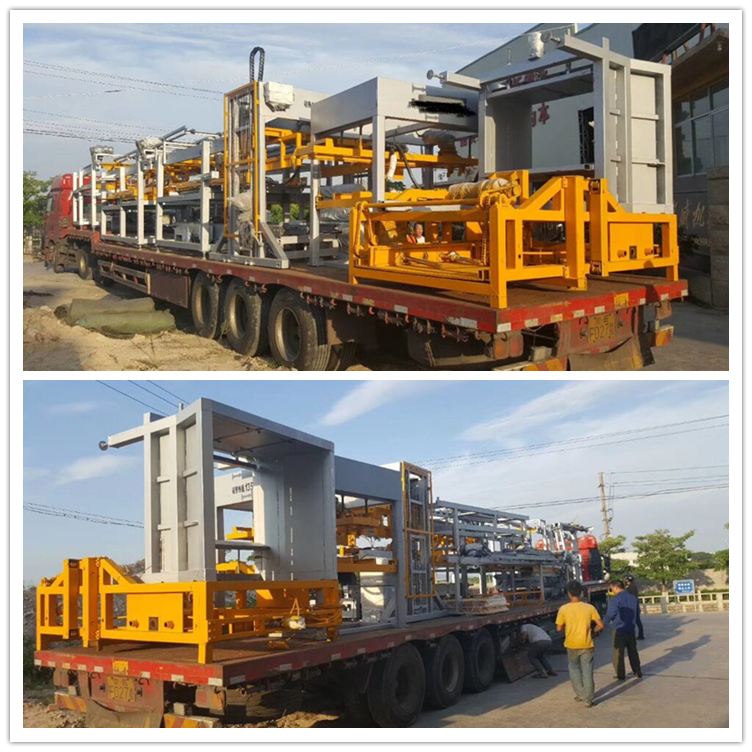

Cuber machine on truck.png

well-known brand parts.jpg

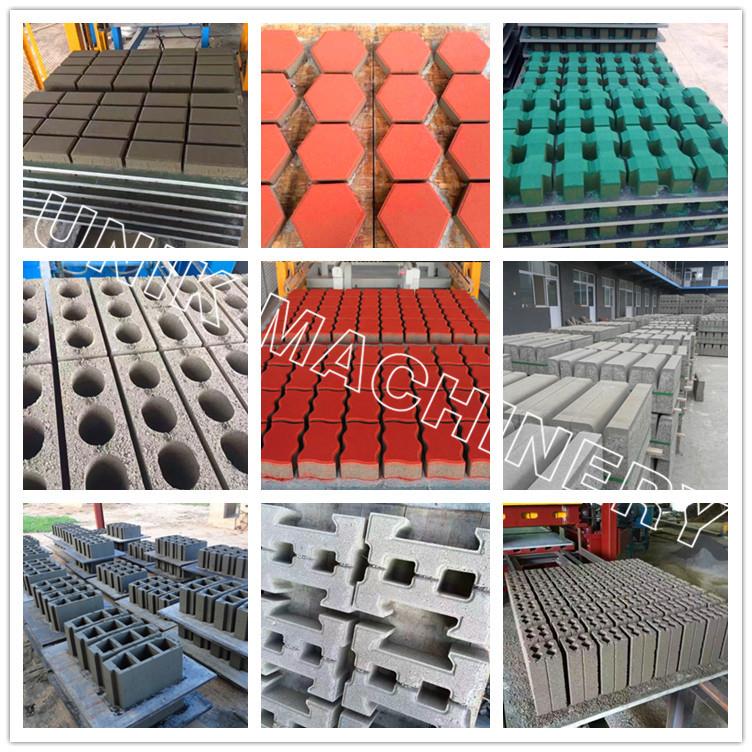

Concrete products_副本.jpg


FAQ:


1.Which machine is most suitable for my project?

You should make sure how much work space you have to produce and store blocks, how many blocks you want to produce in a day, what your initial budget for this machine.



2.Can I use just one machine to make every type of blocks?

Yes,Our block making machine is designed to meet the mass production of various kinds of concrete masonry blocks like brick, blocks, pavers, slabs, curbs, interlocking types etc by just changing the mould. all you need to do is remove one type mould and replace with another, which cost at half hour for changing time.


3.what raw materials are required to produce blocks?

Cement, sand, aggregate Fine and coarse aggregates make up the bulk of a concrete mixture. The max diameter should require within 10mm.


4.Can I get installation for this machine?

We will arrange our engineer to your factory to guide installation and training,the customer will be responsible for all wages and expense of engineer.


5.How about warranty?

we promise 18 months guarantee for date of purchase, and agrees to repair or replace any defective part without charge,This warranty does not cover in cases of improper user, incorrect handling, insufficient maintenance, act of third parties, unauthorized service or modifications to the machine, damage resulting from accident, abuse, lack of reasonable care, normal wear or the addition of any other equipment not provided with product



Hot Tags: cuber machine, China, manufacturers, suppliers, factory, wholesale, customized, buy, price, quotation, price list, for sale, made in China
